Search › Compare › HZB56 × HZJ77
HZB56
Toyota COASTER — 11 of 6,436 shared
HZJ77
Toyota LAND-CRUISER — 11 of 5,946 shared

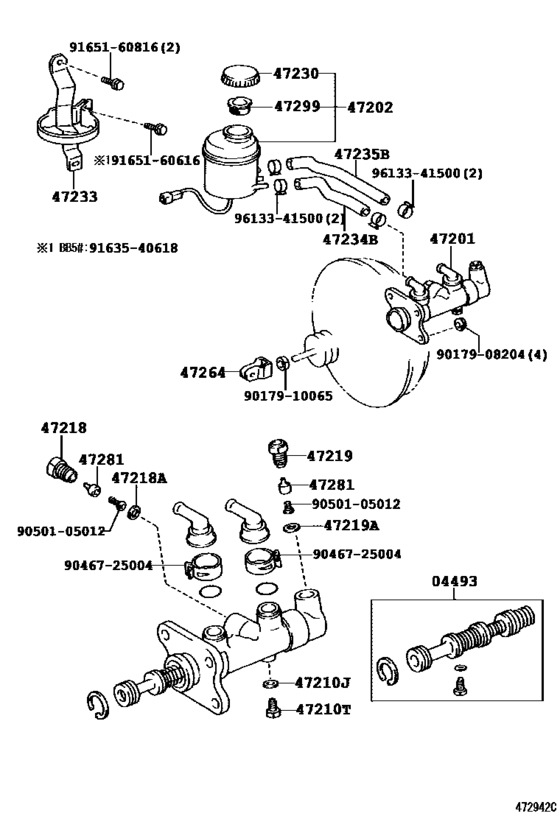

Brake Master Cylinder ([01.1993 - 07.1999] (9301-9907)) 11 / 41
| # | OEM | HZB56 | HZJ77 |
|---|---|---|---|
| 47210 | 90430-06104 | Gasket(For Brake Actuator) | Gasket(For Brake Actuator) |
| 47210 | 90109-06077 | Bolt(For Brake Master Cylinder) | Bolt(For Brake Master Cylinder) |
| 47230 | 47230-47090 | Cap Assy, Brake Master Cylinder Reservoir Filler | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 9017908204 | 90179-08204 | Nut | Nut |
| 9017908204 | 90080-18070 | NUT, WWASHER | NUT, WWASHER |
| 9017910065 | 90179-10065 | Nut, Master Cylinder Push Rod Clevis Lock | Nut, Master Cylinder Push Rod Clevis Lock |
| 9163540618 | 91635-40618 | BOLT W-WASHER | BOLT W-WASHER |
| 9165160616 | 91651-60616 | BOLT | BOLT |
| 9165160816 | 91651-60816 | BOLT | BOLT |
| 9165160816 | 90080-11396 | Bolt | Bolt |
| 9613341500 | 96133-41500 | Clamp Or Clip(For Air Hose, No.5) | Clamp Or Clip(For Air Hose, No.5) |
| # | OEM | HZB56 | HZJ77 |
|---|---|---|---|
| 47230 | 47230-47090 | Cap Assy, Brake Master Cylinder Reservoir Filler | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 9165160816 | 90080-11396 | Bolt | Bolt |
| 9017908204 | 90080-18070 | NUT, WWASHER | NUT, WWASHER |
| 47210 | 90109-06077 | Bolt(For Brake Master Cylinder) | Bolt(For Brake Master Cylinder) |
| 9017908204 | 90179-08204 | Nut | Nut |
| 9017910065 | 90179-10065 | Nut, Master Cylinder Push Rod Clevis Lock | Nut, Master Cylinder Push Rod Clevis Lock |
| 47210 | 90430-06104 | Gasket(For Brake Actuator) | Gasket(For Brake Actuator) |
| 9163540618 | 91635-40618 | BOLT W-WASHER | BOLT W-WASHER |
| 9165160616 | 91651-60616 | BOLT | BOLT |
| 9165160816 | 91651-60816 | BOLT | BOLT |
| 9613451500 | 96133-41500 | Clamp Or Clip(For Air Hose, No.5) | Clamp Or Clip(For Air Hose, No.5) |
