Search › Compare › HZB56 × HZJ73
HZB56
Toyota COASTER — 26 of 6,436 shared
HZJ73
Toyota LAND-CRUISER — 26 of 6,025 shared

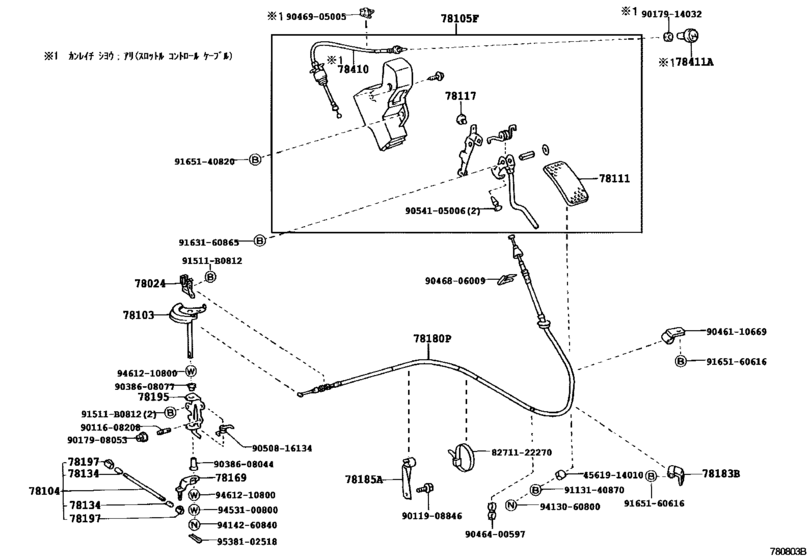

Accelerator Link ([09.2003 - 08.2004] (0309-0408)HZB4#,5#) 26 / 42
| # | OEM | HZB56 | HZJ73 |
|---|---|---|---|
| 78024 | 78024-60010 | Bracket Sub-Assy, Accelerator Control Cable | Bracket Sub-Assy, Accelerator Control Cable |
| 78103 | 78103-60021 | Rod Sub-Assy, Accelerator Connecting, No.1 | Rod Sub-Assy, Accelerator Connecting, No.1 |
| 78103 | 78103-60022 | Rod Sub-Assy, Accelerator Connecting, No.1 | Rod Sub-Assy, Accelerator Connecting, No.1 |
| 78103 | 94142-60840 | NUTSOLOTTED | NUTSOLOTTED |
| 78103 | 94531-00800 | Washer (For Transfer Shift Outer Lever) | Washer (For Transfer Shift Outer Lever) |
| 78104 | 78104-60010 | Rod Sub-Assy, Accelerator Connecting, No.2 | Rod Sub-Assy, Accelerator Connecting, No.2 |
| 78111 | 78111-95110 | Pedal, Accelerator | Pedal, Accelerator |
| 78117 | 90541-06036 | Cushion, No.1(For Clutch Pedal) | Cushion, No.1(For Clutch Pedal) |
| 78169 | 78169-60010 | Hanger, Accelerator Spring | Hanger, Accelerator Spring |
| 78195 | 78195-60011 | Bracket, Accelerator Link | Bracket, Accelerator Link |
| 78197 | 78197-10010 | Clip(For Throttle Link Connecting Rod) | Clip(For Throttle Link Connecting Rod) |
| 91511 | 91511-B0812 | BOLT FLANGE | BOLT FLANGE |
| 4561914010 | 45619-14010 | Cover, Knuckle Stopper | Cover, Knuckle Stopper |
| 8271122270 | 82711-22270 | Clamp(For Transfer Vacuum Tube) | Clamp(For Transfer Vacuum Tube) |
| 9011608208 | 90116-08208 | Bolt, Stud(For Engine Rear Oil Seal Retainer) | Bolt, Stud(For Engine Rear Oil Seal Retainer) |
| 9011908846 | 90119-08846 | BOLT WWASHER | BOLT WWASHER |
| 9017908053 | 90179-08053 | Nut (For Differential Side Gear Shaft) | Nut (For Differential Side Gear Shaft) |
| 9038608044 | 90386-08044 | BUSH | BUSH |
| 9038608077 | 90386-08077 | Bush (For Throttle Cam Shaft) | Bush (For Throttle Cam Shaft) |
| 9050816134 | 90508-16134 | Spring, Clamp, No.4 | Spring, Clamp, No.4 |
| 9165140820 | 91651-40820 | Bolt | Bolt |
| 9165160616 | 91651-60616 | BOLT | BOLT |
| 9413060800 | 94130-60800 | Nut(For Clutch Pedal Stopper) | Nut(For Clutch Pedal Stopper) |
| 9413060800 | 90170-A0003 | New Genuine Part | New Genuine Part |
| 9461210800 | 94612-10800 | Washer, Plate(For Repair Actuator Set) | Washer, Plate(For Repair Actuator Set) |
| 9538102518 | 95381-02518 | PIN | PIN |
| # | OEM | HZB56 | HZJ73 |
|---|---|---|---|
| 4561914010 | 45619-14010 | Cover, Knuckle Stopper | Cover, Knuckle Stopper |
| 78024 | 78024-60010 | Bracket Sub-Assy, Accelerator Control Cable | Bracket Sub-Assy, Accelerator Control Cable |
| 78103 | 78103-60021 | Rod Sub-Assy, Accelerator Connecting, No.1 | Rod Sub-Assy, Accelerator Connecting, No.1 |
| 78103 | 78103-60022 | Rod Sub-Assy, Accelerator Connecting, No.1 | Rod Sub-Assy, Accelerator Connecting, No.1 |
| 78104 | 78104-60010 | Rod Sub-Assy, Accelerator Connecting, No.2 | Rod Sub-Assy, Accelerator Connecting, No.2 |
| 78111 | 78111-95110 | Pedal, Accelerator | Pedal, Accelerator |
| 78169 | 78169-60010 | Hanger, Accelerator Spring | Hanger, Accelerator Spring |
| 78195 | 78195-60011 | Bracket, Accelerator Link | Bracket, Accelerator Link |
| 78197 | 78197-10010 | Clip(For Throttle Link Connecting Rod) | Clip(For Throttle Link Connecting Rod) |
| 8271122270 | 82711-22270 | Clamp(For Transfer Vacuum Tube) | Clamp(For Transfer Vacuum Tube) |
| 9011608208 | 90116-08208 | Bolt, Stud(For Engine Rear Oil Seal Retainer) | Bolt, Stud(For Engine Rear Oil Seal Retainer) |
| 9011908846 | 90119-08846 | BOLT WWASHER | BOLT WWASHER |
| 9413060800 | 90170-A0003 | New Genuine Part | New Genuine Part |
| 9017908053 | 90179-08053 | Nut (For Differential Side Gear Shaft) | Nut (For Differential Side Gear Shaft) |
| 9038608044 | 90386-08044 | BUSH | BUSH |
| 9038608077 | 90386-08077 | Bush (For Throttle Cam Shaft) | Bush (For Throttle Cam Shaft) |
| 9050816134 | 90508-16134 | Spring, Clamp, No.4 | Spring, Clamp, No.4 |
| 78117 | 90541-06036 | Cushion, No.1(For Clutch Pedal) | Cushion, No.1(For Clutch Pedal) |
| 91511 | 91511-B0812 | BOLT FLANGE | BOLT FLANGE |
| 9165140820 | 91651-40820 | Bolt | Bolt |
| 9165160616 | 91651-60616 | BOLT | BOLT |
| 9413060800 | 94130-60800 | Nut(For Clutch Pedal Stopper) | Nut(For Clutch Pedal Stopper) |
| 78103 | 94142-60840 | NUTSOLOTTED | NUTSOLOTTED |
| 78103 | 94531-00800 | Washer (For Transfer Shift Outer Lever) | Washer (For Transfer Shift Outer Lever) |
| 9461210800 | 94612-10800 | Washer, Plate(For Repair Actuator Set) | Washer, Plate(For Repair Actuator Set) |
| 9538102518 | 95381-02518 | PIN | PIN |
