Search › Compare › HR51S × HT51S
HR51S
Suzuki OTHER-MODELS — 30 of 2,489 shared
HT51S
Suzuki KEI-SWIFT — 30 of 2,596 shared

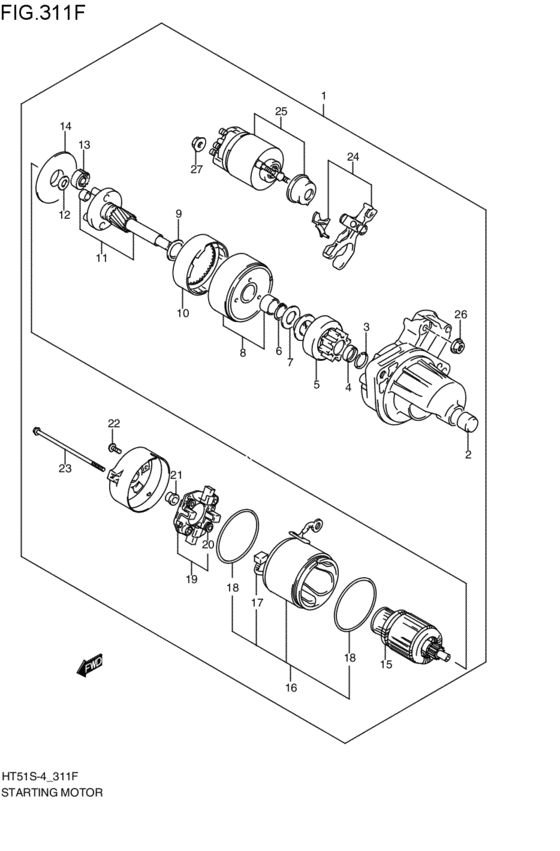

starting motor (2001-10-01~) 30 / 30
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 1 | 31100-80G00-000 | MOTOR ASSY,STARTING | MOTOR ASSY,STARTING |
| 2 | 31152-52A50-000 | BEARING | BEARING |
| 3 | 31312-51A10-000 | RING,SNAP | RING,SNAP |
| 4 | 31313-79010-000 | COLLAR,PINION STOP | COLLAR,PINION STOP |
| 5 | 31320-60B50-000 | CLUTCH,STARTER | CLUTCH,STARTER |
| 6 | 31361-10200-000 | RING,SNAP | RING,SNAP |
| 7 | 31155-60B50-000 | WASHER | WASHER |
| 8 | 31348-60B50-000 | SHOCK ABSORBER | SHOCK ABSORBER |
| 9 | 31154-60B50-000 | WASHER | WASHER |
| 10 | 31343-60B50-000 | GEAR,INTERNAL | GEAR,INTERNAL |
| 11 | 31341-60B50-000 | SHAFT,PLANETARY CARRIER | SHAFT,PLANETARY CARRIER |
| 12 | 31153-60B50-000 | WASHER | WASHER |
| 13 | 31344-60B50-000 | GEAR,PLNTY | GEAR,PLNTY |
| 14 | 31349-60B50-000 | PLATE | PLATE |
| 15 | 31311-60B51-000 | ARMATURE ASSY,STARTER | ARMATURE ASSY,STARTER |
| 16 | 31110-60B51-000 | YOKE ASSY | YOKE ASSY |
| 17 | 31131-60B50-000 | STARTER KIT | STARTER KIT |
| 18 | 31125-60B50-000 | O-RING | O-RING |
| 19 | 31173-60B50-000 | HOLDER ASSY,BRUSH | HOLDER ASSY,BRUSH |
| 20 | 31135-60B50-000 | SPRING,BRUSH | SPRING,BRUSH |
| 21 | 31172-60B50-000 | BEARING | BEARING |
| 22 | 31136-64G00-000 | SCREW | SCREW |
| 23 | 31281-24B10-000 | Bolt | Bolt |
| 23 | 31281-31D00-000 | Bolt - Screw | Bolt - Screw |
| 24 | 31191-60B50-000 | LEVER,STARTER DRIVE | LEVER,STARTER DRIVE |
| 25 | 31220-51A10-000 | SWITCH ASSY | SWITCH ASSY |
| 26 | 08316-10063-000 | Nut | Nut |
| 26 | 08316-1006B-000 | NUT | NUT |
| 27 | 08316-10083-000 | Nut | Nut |
| 27 | 08316-1008B-000 | NUT | NUT |
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 22 | 08316-10063-000 | Nut | Nut |
| 22 | 08316-1006B-000 | NUT | NUT |
| 9 | 08316-10083-000 | Nut | Nut |
| 9 | 08316-1008B-000 | NUT | NUT |
| 1 | 31100-80G00-000 | MOTOR ASSY,STARTING | MOTOR ASSY,STARTING |
| 16 | 31110-60B51-000 | YOKE ASSY | YOKE ASSY |
| 18 | 31125-60B50-000 | O-RING | O-RING |
| 17 | 31131-60B50-000 | STARTER KIT | STARTER KIT |
| 20 | 31135-60B50-000 | SPRING,BRUSH | SPRING,BRUSH |
| 22 | 31136-64G00-000 | SCREW | SCREW |
| 2 | 31152-52A50-000 | BEARING | BEARING |
| 12 | 31153-60B50-000 | WASHER | WASHER |
| 9 | 31154-60B50-000 | WASHER | WASHER |
| 7 | 31155-60B50-000 | WASHER | WASHER |
| 21 | 31172-60B50-000 | BEARING | BEARING |
| 19 | 31173-60B50-000 | HOLDER ASSY,BRUSH | HOLDER ASSY,BRUSH |
| 24 | 31191-60B50-000 | LEVER,STARTER DRIVE | LEVER,STARTER DRIVE |
| 25 | 31220-51A10-000 | SWITCH ASSY | SWITCH ASSY |
| 23 | 31281-24B10-000 | Bolt | Bolt |
| 23 | 31281-31D00-000 | Bolt - Screw | Bolt - Screw |
| 15 | 31311-60B51-000 | ARMATURE ASSY,STARTER | ARMATURE ASSY,STARTER |
| 3 | 31312-51A10-000 | RING,SNAP | RING,SNAP |
| 4 | 31313-79010-000 | COLLAR,PINION STOP | COLLAR,PINION STOP |
| 5 | 31320-60B50-000 | CLUTCH,STARTER | CLUTCH,STARTER |
| 11 | 31341-60B50-000 | SHAFT,PLANETARY CARRIER | SHAFT,PLANETARY CARRIER |
| 10 | 31343-60B50-000 | GEAR,INTERNAL | GEAR,INTERNAL |
| 13 | 31344-60B50-000 | GEAR,PLNTY | GEAR,PLNTY |
| 8 | 31348-60B50-000 | SHOCK ABSORBER | SHOCK ABSORBER |
| 14 | 31349-60B50-000 | PLATE | PLATE |
| 6 | 31361-10200-000 | RING,SNAP | RING,SNAP |
