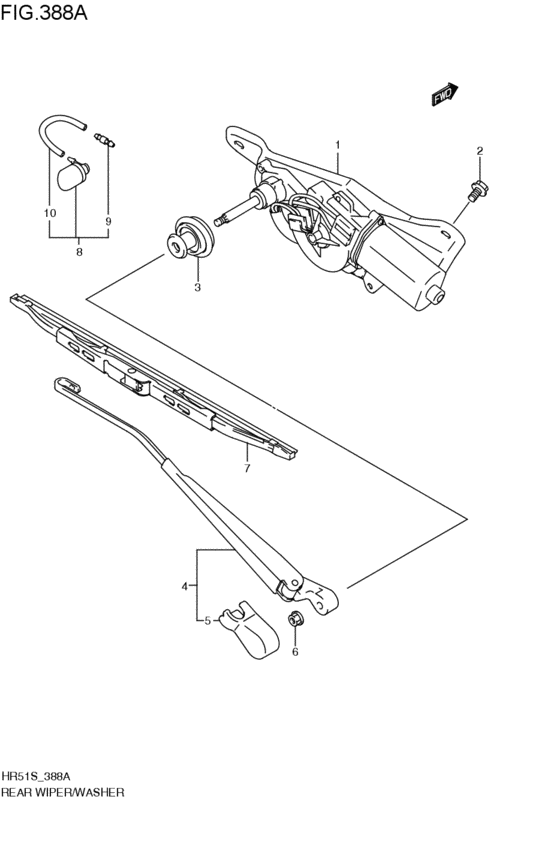

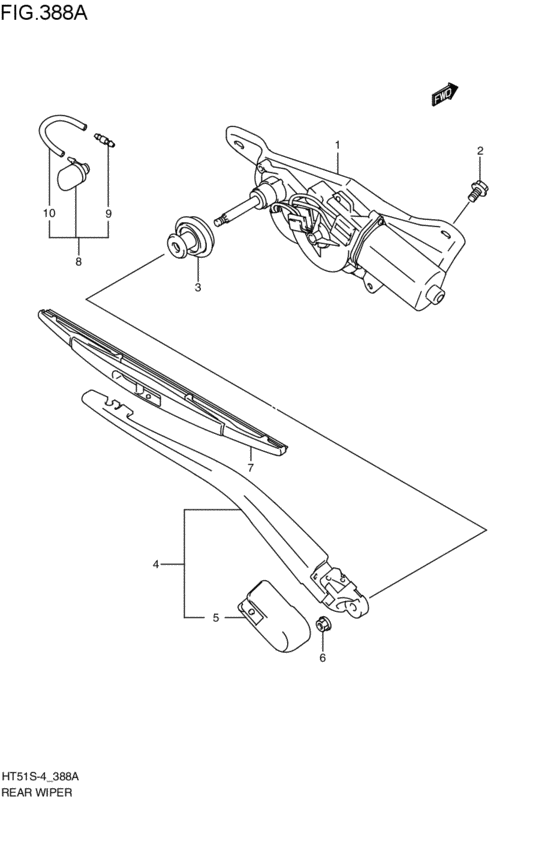

rear wind windshield wiper / washer (2001-10-01~) 10 / 13
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 1 | 38810-80G00-000 | WIPER ASSY,RR WINDOW | WIPER ASSY,RR WINDOW |
| 2 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 2 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 2 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 3 | 38274-81A00-000 | CAP,WIPER PIVOT | CAP,WIPER PIVOT |
| 6 | 08316-10063-000 | Nut | Nut |
| 6 | 08316-1006B-000 | NUT | NUT |
| 8 | 38840-76G00-000 | NOZZLE ASSY,RR WASHER | NOZZLE ASSY,RR WASHER |
| 9 | 38496-61A00-000 | VALVE,CHECK | VALVE,CHECK |
| 10 | 38459-50J00-000 | HOSE,WASHER L:810 | HOSE,WASHER L:810 |
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 8 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 8 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 8 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 22 | 08316-10063-000 | Nut | Nut |
| 22 | 08316-1006B-000 | NUT | NUT |
| 3 | 38274-81A00-000 | CAP,WIPER PIVOT | CAP,WIPER PIVOT |
| 10 | 38459-50J00-000 | HOSE,WASHER L:810 | HOSE,WASHER L:810 |
| 9 | 38496-61A00-000 | VALVE,CHECK | VALVE,CHECK |
| 1 | 38810-80G00-000 | WIPER ASSY,RR WINDOW | WIPER ASSY,RR WINDOW |
| 8 | 38840-76G00-000 | NOZZLE ASSY,RR WASHER | NOZZLE ASSY,RR WASHER |
