Search › Compare › HR51S × HT51S
HR51S
Suzuki OTHER-MODELS — 32 of 2,489 shared
HT51S
Suzuki KEI-SWIFT — 32 of 2,596 shared

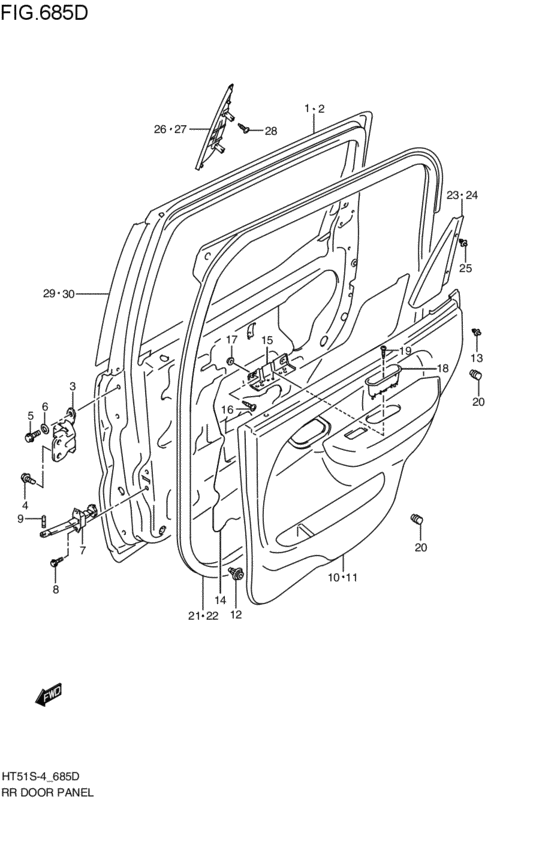

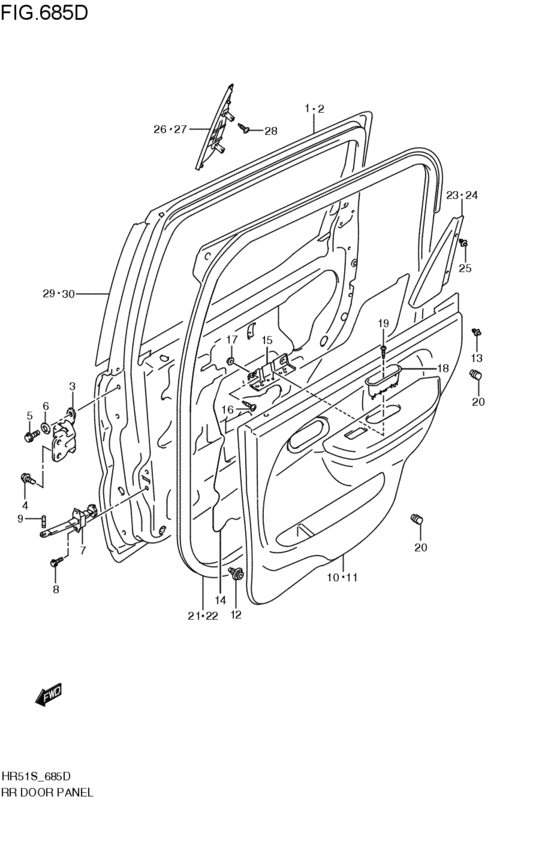

rear door panel (2001-10-01~) 32 / 40
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 1 | 68003-83G00-000 | PANEL ASSY,REAR DOOR,R | PANEL ASSY,REAR DOOR,R |
| 2 | 68004-81G01-000 | PANEL ASSY,REAR DOOR,L | PANEL ASSY,REAR DOOR,L |
| 3 | 69410-76F00-000 | HINGE,RR DOOR | HINGE,RR DOOR |
| 4 | 01551-0820A-000 | Bolt | Bolt |
| 5 | 09103-08389-000 | BOLT(8X24) | BOLT(8X24) |
| 6 | 69480-65D00-000 | Washer | Washer |
| 7 | 81830-75G00-000 | STOP,REAR DOOR OPEN | STOP,REAR DOOR OPEN |
| 8 | 09122-86004-000 | SCREW(6X20) | SCREW(6X20) |
| 9 | 81831-70B00-000 | PIN,DOOR OPEN STOPPER BODY | PIN,DOOR OPEN STOPPER BODY |
| 12 | 09409-08320-000 | CLIP | CLIP |
| 13 | 09409-06314-P4Z | CLIP(GRAY) | CLIP(GRAY) |
| 14 | 83911-60X51-000 | Cover, door sealing (600x1200) | Cover, door sealing (600x1200) |
| 14 | 83911-60X52-000 | COVER,DR SEALING | COVER,DR SEALING |
| 15 | 83751-70G50-000 | Bracket, door trim | Bracket, door trim |
| 15 | 83751-70G5V-000 | BRACKET,DR TRIM | BRACKET,DR TRIM |
| 16 | 03241-06123-000 | Screw | Screw |
| 16 | 03241-0612A-000 | SCREW | SCREW |
| 17 | 09148-06007-000 | NUT | NUT |
| 19 | 09132-05051-000 | スクリュ,5X12 | スクリュ,5X12 |
| 19 | 09132-05058-000 | SCREW(5X12) | SCREW(5X12) |
| 20 | 82711-56B00-000 | STOPPER,FR DOOR - Stopper, fr dr lower | STOPPER,FR DOOR - Stopper, fr dr lower |
| 21 | 84661-75G01-000 | WEATHERSTRIP,RR DR OPNG,R | WEATHERSTRIP,RR DR OPNG,R |
| 22 | 84671-75G01-000 | WEATHERSTRIP,RR DR OPNG,L | WEATHERSTRIP,RR DR OPNG,L |
| 23 | 83955-75G00-5PK | GARNISH,RR DR RR INR,R - Garnish, rr dr rr inner rh (black) | GARNISH,RR DR RR INR,R - Garnish, rr dr rr inner rh (black) |
| 24 | 83965-75G00-5PK | GARNISH,RR DR RR INR,L - Garnish, rr dr rr inner lh (black) | GARNISH,RR DR RR INR,L - Garnish, rr dr rr inner lh (black) |
| 25 | 09409-06314-5PK | CLIP(BLACK) | CLIP(BLACK) |
| 26 | 83971-75G00-000 | GARNISH,RR DR RR OTR,R | GARNISH,RR DR RR OTR,R |
| 27 | 83972-75G00-000 | GARNISH,RR DR RR OTR,L | GARNISH,RR DR RR OTR,L |
| 28 | 03541-05123-000 | Screw | Screw |
| 28 | 03541-0512B-000 | SCREW | SCREW |
| 29 | 83931-75G00-0CB | TAPE,RR DOOR OUTER,R | TAPE,RR DOOR OUTER,R |
| 30 | 83932-75G00-0CB | TAPE,RR DOOR OUTER,L | TAPE,RR DOOR OUTER,L |
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 6 | 01551-0820A-000 | Bolt | Bolt |
| 16 | 03241-06123-000 | Screw | Screw |
| 16 | 03241-0612A-000 | SCREW | SCREW |
| 5 | 03541-05123-000 | Screw | Screw |
| 5 | 03541-0512B-000 | SCREW | SCREW |
| 5 | 09103-08389-000 | BOLT(8X24) | BOLT(8X24) |
| 9 | 09122-86004-000 | SCREW(6X20) | SCREW(6X20) |
| 19 | 09132-05051-000 | スクリュ,5X12 | スクリュ,5X12 |
| 19 | 09132-05058-000 | SCREW(5X12) | SCREW(5X12) |
| 31 | 09148-06007-000 | NUT | NUT |
| 25 | 09409-06314-5PK | CLIP(BLACK) | CLIP(BLACK) |
| 14 | 09409-06314-P4Z | CLIP(GRAY) | CLIP(GRAY) |
| 11 | 09409-08320-000 | CLIP | CLIP |
| 1 | 68003-83G00-000 | PANEL ASSY,REAR DOOR,R | PANEL ASSY,REAR DOOR,R |
| 2 | 68004-81G01-000 | PANEL ASSY,REAR DOOR,L | PANEL ASSY,REAR DOOR,L |
| 3 | 69410-76F00-000 | HINGE,RR DOOR | HINGE,RR DOOR |
| 7 | 69480-65D00-000 | Washer | Washer |
| 7 | 81830-75G00-000 | STOP,REAR DOOR OPEN | STOP,REAR DOOR OPEN |
| 10 | 81831-70B00-000 | PIN,DOOR OPEN STOPPER BODY | PIN,DOOR OPEN STOPPER BODY |
| 22 | 82711-56B00-000 | STOPPER,FR DOOR - Stopper, fr dr lower | STOPPER,FR DOOR - Stopper, fr dr lower |
| 15 | 83751-70G50-000 | Bracket, door trim | Bracket, door trim |
| 15 | 83751-70G5V-000 | BRACKET,DR TRIM | BRACKET,DR TRIM |
| 16 | 83911-60X51-000 | Cover, door sealing (600x1200) | Cover, door sealing (600x1200) |
| 16 | 83911-60X52-000 | COVER,DR SEALING | COVER,DR SEALING |
| 29 | 83931-75G00-0CB | TAPE,RR DOOR OUTER,R | TAPE,RR DOOR OUTER,R |
| 30 | 83932-75G00-0CB | TAPE,RR DOOR OUTER,L | TAPE,RR DOOR OUTER,L |
| 23 | 83955-75G00-5PK | GARNISH,RR DR RR INR,R - Garnish, rr dr rr inner rh (black) | GARNISH,RR DR RR INR,R - Garnish, rr dr rr inner rh (black) |
| 24 | 83965-75G00-5PK | GARNISH,RR DR RR INR,L - Garnish, rr dr rr inner lh (black) | GARNISH,RR DR RR INR,L - Garnish, rr dr rr inner lh (black) |
| 26 | 83971-75G00-000 | GARNISH,RR DR RR OTR,R | GARNISH,RR DR RR OTR,R |
| 27 | 83972-75G00-000 | GARNISH,RR DR RR OTR,L | GARNISH,RR DR RR OTR,L |
| 21 | 84661-75G01-000 | WEATHERSTRIP,RR DR OPNG,R | WEATHERSTRIP,RR DR OPNG,R |
| 22 | 84671-75G01-000 | WEATHERSTRIP,RR DR OPNG,L | WEATHERSTRIP,RR DR OPNG,L |
