Search › Compare › HR51S × HT51S
HR51S
Suzuki OTHER-MODELS — 48 of 2,489 shared
HT51S
Suzuki KEI-SWIFT — 48 of 2,596 shared

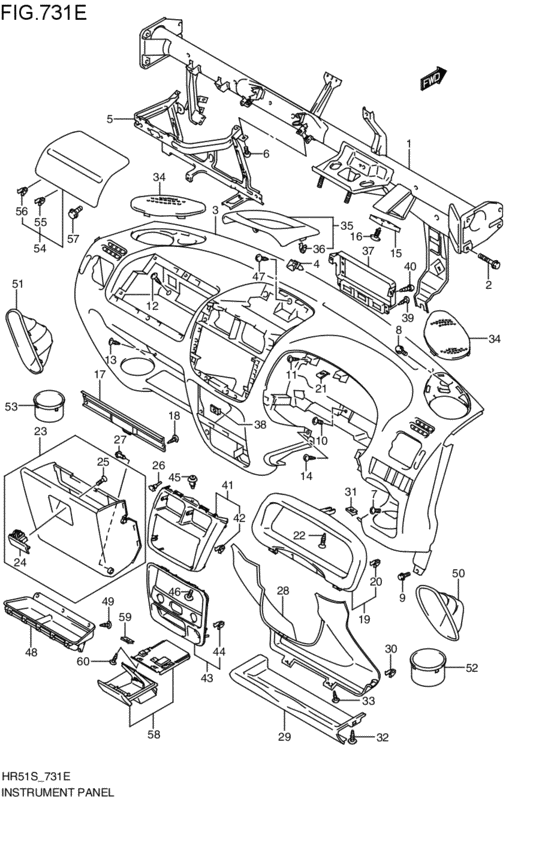

installment panel (インパネ; 2001-10-01~) 48 / 56
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 1 | 73210-70H22-000 | メンバ,ステアリングサポート | メンバ,ステアリングサポート |
| 2 | 73291-50G01-000 | Bolt | Bolt |
| 2 | 73291-50G20-000 | BOLT,STRG SPRT MBR SIDE | BOLT,STRG SPRT MBR SIDE |
| 3 | 73111-70H00-P4Z | パネル,インストゥルメントメイン(グレー) | パネル,インストゥルメントメイン(グレー) |
| 4 | 73121-78F01-000 | SOCKET,I/P PIN | SOCKET,I/P PIN |
| 5 | 73240-80G00-000 | STAY,I/P CENTER | STAY,I/P CENTER |
| 6 | 02142-05123-000 | Screw 5x12 | Screw 5x12 |
| 6 | 02142-0512A-000 | SCREW - Screw, lower | SCREW - Screw, lower |
| 8 | 01580-06163-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 8 | 01580-0616A-000 | Bolt | Bolt |
| 10 | 03242-05123-000 | Screw, inner cover | Screw, inner cover |
| 10 | 03241-0512A-000 | SCREW | SCREW |
| 17 | 73250-80G01-000 | REINFORCEMENT,GLOVE BOX UPR | REINFORCEMENT,GLOVE BOX UPR |
| 18 | 03541-05163-000 | Screw | Screw |
| 18 | 03541-0516A-000 | SCREW | SCREW |
| 20 | 09409-08326-000 | CLIP | CLIP |
| 21 | 09148-05045-000 | NUT | NUT |
| 22 | 03222-05123-000 | スクリュ | スクリュ |
| 22 | 03222-0512B-000 | SCREW | SCREW |
| 23 | 73410-80G01-P4Z | BOX,GLOVE | BOX,GLOVE |
| 24 | 73430-60G01-P4Z | LOCK,GLOVE BOX | LOCK,GLOVE BOX |
| 25 | 02122-04123-000 | Screw | Screw |
| 25 | 02122-0412B-000 | SCREW | SCREW |
| 25 | 02122-0412A-000 | SCREW - Screw, cap | SCREW - Screw, cap |
| 26 | 73461-77E00-000 | CUSHION,GLV BOX LID - Cushion, glove box lid side | CUSHION,GLV BOX LID - Cushion, glove box lid side |
| 27 | 09409-07019-5PK | CLIP(BLACK) | CLIP(BLACK) |
| 28 | 73811-80G20-P4Z | COVER,STRG COLUMN HOLE | COVER,STRG COLUMN HOLE |
| 29 | 73812-80G20-P4Z | COVER,STRG COLUMN HOLE,FR | COVER,STRG COLUMN HOLE,FR |
| 32 | 03242-05163-000 | Screw | Screw |
| 32 | 03241-0516A-000 | SCREW | SCREW |
| 34 | 73832-80G00-P4Z | COVER,SPEAKER HOLE | COVER,SPEAKER HOLE |
| 37 | 73271-70H02-000 | ブラケット,ヒータコントロールレバー | ブラケット,ヒータコントロールレバー |
| 39 | 03142-05123-000 | Screw - Screw, belt cooling duct | Screw - Screw, belt cooling duct |
| 39 | 03141-0512A-000 | SCREW - Screw, belt cooling duct | SCREW - Screw, belt cooling duct |
| 43 | 73823-70H00-5PK | ガーニッシュ,インパネセンタ,ロア(ブラック) | ガーニッシュ,インパネセンタ,ロア(ブラック) |
| 45 | 09409-06322-5PK | CLIP(BLACK) - Clip (black) | CLIP(BLACK) - Clip (black) |
| 48 | 73841-80G00-P4Z | TRAY,I/P LOWER | TRAY,I/P LOWER |
| 50 | 73842-80G00-P4Z | COVER,CUP HOLDER HOLE | COVER,CUP HOLDER HOLE |
| 51 | 73843-80G00-P4Z | COVER,CUP HOLDER HOLE | COVER,CUP HOLDER HOLE |
| 52 | 73844-80G10-P4Z | HOLDER,CUP | HOLDER,CUP |
| 53 | 73844-80G00-P4Z | HOLDER,CUP | HOLDER,CUP |
| 54 | 73910-70H00-P4Z | モジュール,パッセンジャエアバッグ(グレー) | モジュール,パッセンジャエアバッグ(グレー) |
| 54 | 73910-70H01-P4Z | MODULE,PASS A/B | MODULE,PASS A/B |
| 56 | 09409-08332-000 | CLIP | CLIP |
| 57 | 01551-08163-000 | Bolt | Bolt |
| 57 | 01551-0816C-000 | Bolt | Bolt |
| 57 | 01551-0816A-000 | ボルト | ボルト |
| 58 | 89810-80G01-5PK | ASHTRAY,FR | ASHTRAY,FR |
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 26 | 01551-08163-000 | Bolt | Bolt |
| 26 | 01551-0816A-000 | ボルト | ボルト |
| 26 | 01551-0816C-000 | Bolt | Bolt |
| 8 | 01580-06163-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 8 | 01580-0616A-000 | Bolt | Bolt |
| 25 | 02122-04123-000 | Screw | Screw |
| 25 | 02122-0412A-000 | SCREW - Screw, cap | SCREW - Screw, cap |
| 25 | 02122-0412B-000 | SCREW | SCREW |
| 6 | 02142-05123-000 | Screw 5x12 | Screw 5x12 |
| 6 | 02142-0512A-000 | SCREW - Screw, lower | SCREW - Screw, lower |
| 6 | 03141-0512A-000 | SCREW - Screw, belt cooling duct | SCREW - Screw, belt cooling duct |
| 6 | 03142-05123-000 | Screw - Screw, belt cooling duct | Screw - Screw, belt cooling duct |
| 22 | 03222-05123-000 | スクリュ | スクリュ |
| 22 | 03222-0512B-000 | SCREW | SCREW |
| 26 | 03241-0512A-000 | SCREW | SCREW |
| 32 | 03241-0516A-000 | SCREW | SCREW |
| 26 | 03242-05123-000 | Screw, inner cover | Screw, inner cover |
| 32 | 03242-05163-000 | Screw | Screw |
| 18 | 03541-05163-000 | Screw | Screw |
| 18 | 03541-0516A-000 | SCREW | SCREW |
| 21 | 09148-05045-000 | NUT | NUT |
| 45 | 09409-06322-5PK | CLIP(BLACK) - Clip (black) | CLIP(BLACK) - Clip (black) |
| 21 | 09409-07019-5PK | CLIP(BLACK) | CLIP(BLACK) |
| 10 | 09409-08326-000 | CLIP | CLIP |
| 56 | 09409-08332-000 | CLIP | CLIP |
| 3 | 73111-70H00-P4Z | パネル,インストゥルメントメイン(グレー) | パネル,インストゥルメントメイン(グレー) |
| 4 | 73121-78F01-000 | SOCKET,I/P PIN | SOCKET,I/P PIN |
| 1 | 73210-70H22-000 | メンバ,ステアリングサポート | メンバ,ステアリングサポート |
| 5 | 73240-80G00-000 | STAY,I/P CENTER | STAY,I/P CENTER |
| 17 | 73250-80G01-000 | REINFORCEMENT,GLOVE BOX UPR | REINFORCEMENT,GLOVE BOX UPR |
| 37 | 73271-70H02-000 | ブラケット,ヒータコントロールレバー | ブラケット,ヒータコントロールレバー |
| 2 | 73291-50G01-000 | Bolt | Bolt |
| 2 | 73291-50G20-000 | BOLT,STRG SPRT MBR SIDE | BOLT,STRG SPRT MBR SIDE |
| 23 | 73410-80G01-P4Z | BOX,GLOVE | BOX,GLOVE |
| 24 | 73430-60G01-P4Z | LOCK,GLOVE BOX | LOCK,GLOVE BOX |
| 26 | 73461-77E00-000 | CUSHION,GLV BOX LID - Cushion, glove box lid side | CUSHION,GLV BOX LID - Cushion, glove box lid side |
| 28 | 73811-80G20-P4Z | COVER,STRG COLUMN HOLE | COVER,STRG COLUMN HOLE |
| 29 | 73812-80G20-P4Z | COVER,STRG COLUMN HOLE,FR | COVER,STRG COLUMN HOLE,FR |
| 43 | 73823-70H00-5PK | ガーニッシュ,インパネセンタ,ロア(ブラック) | ガーニッシュ,インパネセンタ,ロア(ブラック) |
| 34 | 73832-80G00-P4Z | COVER,SPEAKER HOLE | COVER,SPEAKER HOLE |
| 48 | 73841-80G00-P4Z | TRAY,I/P LOWER | TRAY,I/P LOWER |
| 50 | 73842-80G00-P4Z | COVER,CUP HOLDER HOLE | COVER,CUP HOLDER HOLE |
| 51 | 73843-80G00-P4Z | COVER,CUP HOLDER HOLE | COVER,CUP HOLDER HOLE |
| 53 | 73844-80G00-P4Z | HOLDER,CUP | HOLDER,CUP |
| 52 | 73844-80G10-P4Z | HOLDER,CUP | HOLDER,CUP |
| 54 | 73910-70H00-P4Z | モジュール,パッセンジャエアバッグ(グレー) | モジュール,パッセンジャエアバッグ(グレー) |
| 54 | 73910-70H01-P4Z | MODULE,PASS A/B | MODULE,PASS A/B |
| 58 | 89810-80G01-5PK | ASHTRAY,FR | ASHTRAY,FR |
