Search › Compare › HR51S × HT51S
HR51S
Suzuki OTHER-MODELS — 17 of 2,489 shared
HT51S
Suzuki KEI-SWIFT — 17 of 2,596 shared

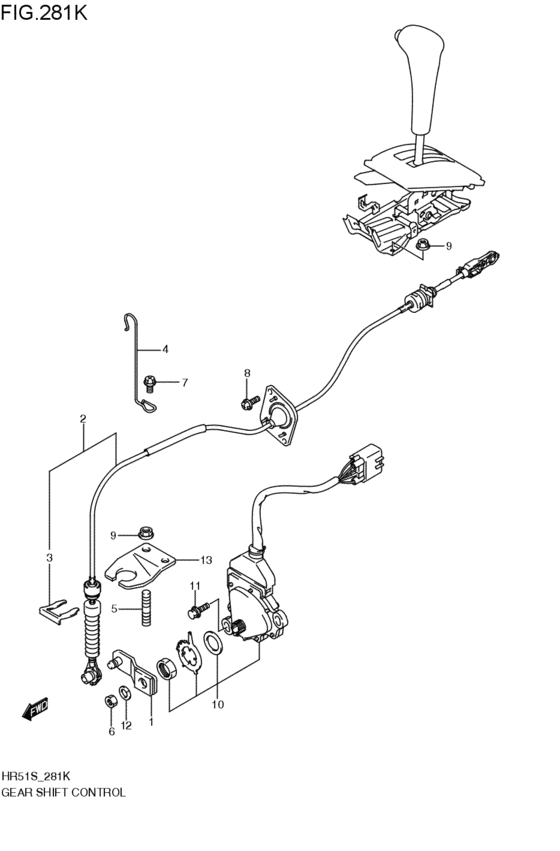

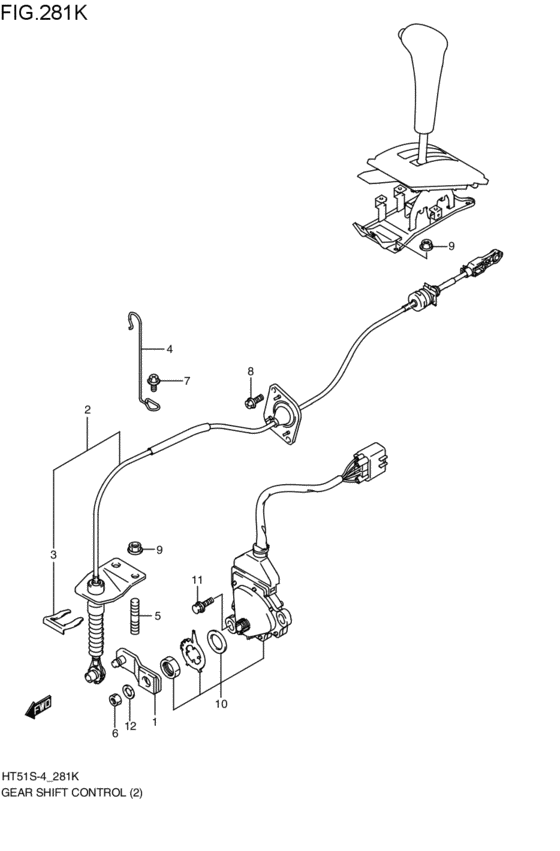

gearlever control (2001-10-01~) 17 / 18
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 1 | 25971-70H10-000 | LEVER,MANUAL SEL | LEVER,MANUAL SEL |
| 2 | 28210-70H10-000 | CABLE ASSY,SELECT | CABLE ASSY,SELECT |
| 3 | 09383-19001-000 | E RING - Clip | E RING - Clip |
| 4 | 28225-79C11-000 | CLAMP,SELECT CABLE | CLAMP,SELECT CABLE |
| 5 | 09108-08257-000 | BOLT,STUD | BOLT,STUD |
| 6 | 25996-79C10-000 | NUTMANUAL SELECT LEVER | NUTMANUAL SELECT LEVER |
| 6 | 08310-0008A-000 | NUT - Nut, bead stopper | NUT - Nut, bead stopper |
| 7 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 7 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 7 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 8 | 02162-06203-000 | Bolt | Bolt |
| 8 | 02162-0620C-000 | SCREW | SCREW |
| 9 | 08316-10083-000 | Nut | Nut |
| 9 | 08316-1008B-000 | NUT | NUT |
| 10 | 37720-79C10-000 | SWITCH ASSY,SHIFT | SWITCH ASSY,SHIFT |
| 11 | 24896-79C10-000 | BOLT,SHIFT SWITCH | BOLT,SHIFT SWITCH |
| 12 | 25997-60G10-000 | WASHER,MANUAL SELECT LEVER | WASHER,MANUAL SELECT LEVER |
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 8 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 8 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 8 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 8 | 02162-06203-000 | Bolt | Bolt |
| 8 | 02162-0620C-000 | SCREW | SCREW |
| 9 | 08310-0008A-000 | NUT - Nut, bead stopper | NUT - Nut, bead stopper |
| 9 | 08316-10083-000 | Nut | Nut |
| 9 | 08316-1008B-000 | NUT | NUT |
| 5 | 09108-08257-000 | BOLT,STUD | BOLT,STUD |
| 3 | 09383-19001-000 | E RING - Clip | E RING - Clip |
| 11 | 24896-79C10-000 | BOLT,SHIFT SWITCH | BOLT,SHIFT SWITCH |
| 1 | 25971-70H10-000 | LEVER,MANUAL SEL | LEVER,MANUAL SEL |
| 6 | 25996-79C10-000 | NUTMANUAL SELECT LEVER | NUTMANUAL SELECT LEVER |
| 12 | 25997-60G10-000 | WASHER,MANUAL SELECT LEVER | WASHER,MANUAL SELECT LEVER |
| 2 | 28210-70H10-000 | CABLE ASSY,SELECT | CABLE ASSY,SELECT |
| 4 | 28225-79C11-000 | CLAMP,SELECT CABLE | CLAMP,SELECT CABLE |
| 10 | 37720-79C10-000 | SWITCH ASSY,SHIFT | SWITCH ASSY,SHIFT |
