Search › Compare › HR51S × HT51S
HR51S
Suzuki OTHER-MODELS — 38 of 2,489 shared
HT51S
Suzuki KEI-SWIFT — 38 of 2,596 shared

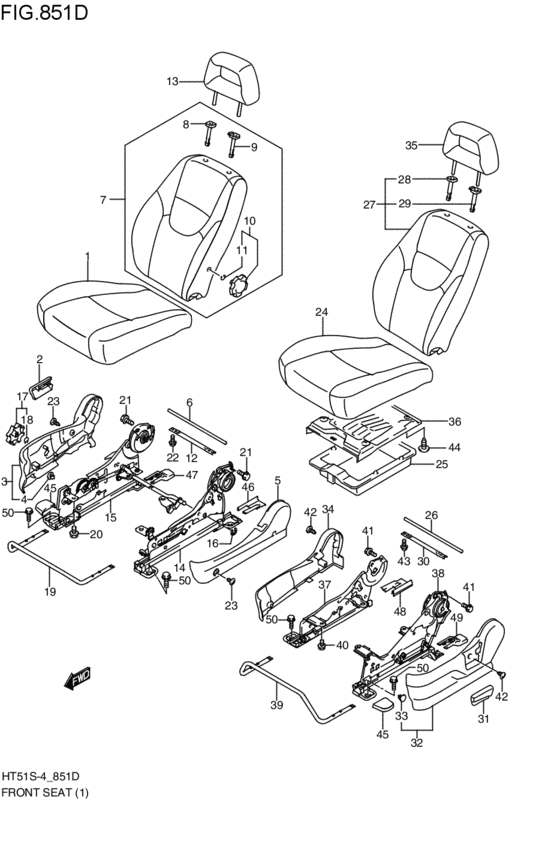

front seat (2001/10 カラ 2003/04 マデ; 2001-10-01~2003-04-01) 38 / 64
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 4 | 85211-75H00-P4Z | KNOB,RECL,R | KNOB,RECL,R |
| 5 | 85220-70H00-P4Z | COVER,RECL OUTSIDE,R | COVER,RECL OUTSIDE,R |
| 6 | 85225-74G00-P4Z | CLIP, | CLIP, |
| 7 | 85241-80G00-P4Z | COVER,RECL INSIDE,R | COVER,RECL INSIDE,R |
| 8 | 85250-80G00-000 | ROD,FR ADJUSTER | ROD,FR ADJUSTER |
| 12 | 85341-81A00-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 13 | 85840-81A10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 14 | 86170-80G00-P4Z | KNOB | KNOB |
| 15 | 78463-78000-000 | SNAP | SNAP |
| 18 | 85771-78F00-000 | MEMBER,FR SEAT | MEMBER,FR SEAT |
| 20 | 86601-70H50-000 | ADJUSTER ASSY,FR INSIDE,R | ADJUSTER ASSY,FR INSIDE,R |
| 21 | 86603-70H50-000 | ADJUSTER ASSY,FR OUTSIDE,R | ADJUSTER ASSY,FR OUTSIDE,R |
| 22 | 86691-80G00-000 | HANDLE,FR ADJ,R | HANDLE,FR ADJ,R |
| 23 | 01550-08123-000 | Bolt - Plug, oil gallery | Bolt - Plug, oil gallery |
| 23 | 01550-0812B-000 | Bolt - Plug, drain | Bolt - Plug, drain |
| 23 | 01550-0812A-000 | Bolt | Bolt |
| 24 | 01550-10203-000 | Bolt - Bolt, lower | Bolt - Bolt, lower |
| 24 | 01550-1020A-000 | Bolt - Bolt, bal sprocket | Bolt - Bolt, bal sprocket |
| 26 | 03242-05123-000 | Screw, inner cover | Screw, inner cover |
| 26 | 03241-0512A-000 | SCREW | SCREW |
| 27 | 08332-11126-000 | E ring | E ring |
| 27 | 08332-1112A-000 | E RING | E RING |
| 32 | 85150-80G10-000 | TRAY ASSY,FR UNDER | TRAY ASSY,FR UNDER |
| 39 | 85771-78F10-000 | MEMBER,FR SEAT | MEMBER,FR SEAT |
| 40 | 85711-75H00-P4Z | KNOB,RECL,L | KNOB,RECL,L |
| 41 | 85720-74G10-P4Z | Cover,recl outside,l | Cover,recl outside,l |
| 41 | 85720-74G11-P4Z | COVER,RECL OUTSIDE,L | COVER,RECL OUTSIDE,L |
| 43 | 85741-80G00-P4Z | COVER,RECL INSIDE,L | COVER,RECL INSIDE,L |
| 45 | 86521-65DA0-000 | BRACKET,UNDER TRAY | BRACKET,UNDER TRAY |
| 46 | 86602-80G00-000 | ADJUSTER ASSY,FR INSIDE,L | ADJUSTER ASSY,FR INSIDE,L |
| 47 | 86604-80G00-000 | ADJUSTER ASSY,FR OUTSIDE,L | ADJUSTER ASSY,FR OUTSIDE,L |
| 48 | 86891-80G00-000 | HANDLE,FR ADJUSTER,L | HANDLE,FR ADJUSTER,L |
| 54 | 85492-76G00-P4Z | COVER,FR OUTSIDE | COVER,FR OUTSIDE |
| 55 | 85495-76G00-P4Z | COVER,RR INSIDE,R | COVER,RR INSIDE,R |
| 56 | 85496-76G00-P4Z | COVER,RR OUTSIDE | COVER,RR OUTSIDE |
| 57 | 85995-76G00-P4Z | COVER,RR INSIDE,L | COVER,RR INSIDE,L |
| 59 | 01551-10253-000 | Bolt | Bolt |
| 59 | 01551-1025A-000 | Bolt | Bolt |
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 4 | 01550-08123-000 | Bolt - Plug, oil gallery | Bolt - Plug, oil gallery |
| 4 | 01550-0812A-000 | Bolt | Bolt |
| 4 | 01550-0812B-000 | Bolt - Plug, drain | Bolt - Plug, drain |
| 21 | 01550-10203-000 | Bolt - Bolt, lower | Bolt - Bolt, lower |
| 21 | 01550-1020A-000 | Bolt - Bolt, bal sprocket | Bolt - Bolt, bal sprocket |
| 11 | 01551-10253-000 | Bolt | Bolt |
| 11 | 01551-1025A-000 | Bolt | Bolt |
| 26 | 03241-0512A-000 | SCREW | SCREW |
| 26 | 03242-05123-000 | Screw, inner cover | Screw, inner cover |
| 27 | 08332-11126-000 | E ring | E ring |
| 27 | 08332-1112A-000 | E RING | E RING |
| 15 | 78463-78000-000 | SNAP | SNAP |
| 32 | 85150-80G10-000 | TRAY ASSY,FR UNDER | TRAY ASSY,FR UNDER |
| 4 | 85211-75H00-P4Z | KNOB,RECL,R | KNOB,RECL,R |
| 5 | 85220-70H00-P4Z | COVER,RECL OUTSIDE,R | COVER,RECL OUTSIDE,R |
| 6 | 85225-74G00-P4Z | CLIP, | CLIP, |
| 7 | 85241-80G00-P4Z | COVER,RECL INSIDE,R | COVER,RECL INSIDE,R |
| 8 | 85250-80G00-000 | ROD,FR ADJUSTER | ROD,FR ADJUSTER |
| 12 | 85341-81A00-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 54 | 85492-76G00-P4Z | COVER,FR OUTSIDE | COVER,FR OUTSIDE |
| 55 | 85495-76G00-P4Z | COVER,RR INSIDE,R | COVER,RR INSIDE,R |
| 56 | 85496-76G00-P4Z | COVER,RR OUTSIDE | COVER,RR OUTSIDE |
| 40 | 85711-75H00-P4Z | KNOB,RECL,L | KNOB,RECL,L |
| 41 | 85720-74G10-P4Z | Cover,recl outside,l | Cover,recl outside,l |
| 41 | 85720-74G11-P4Z | COVER,RECL OUTSIDE,L | COVER,RECL OUTSIDE,L |
| 43 | 85741-80G00-P4Z | COVER,RECL INSIDE,L | COVER,RECL INSIDE,L |
| 18 | 85771-78F00-000 | MEMBER,FR SEAT | MEMBER,FR SEAT |
| 39 | 85771-78F10-000 | MEMBER,FR SEAT | MEMBER,FR SEAT |
| 13 | 85840-81A10-P4Z | GUIDE,HEADRESTRAINT | GUIDE,HEADRESTRAINT |
| 57 | 85995-76G00-P4Z | COVER,RR INSIDE,L | COVER,RR INSIDE,L |
| 14 | 86170-80G00-P4Z | KNOB | KNOB |
| 45 | 86521-65DA0-000 | BRACKET,UNDER TRAY | BRACKET,UNDER TRAY |
| 20 | 86601-70H50-000 | ADJUSTER ASSY,FR INSIDE,R | ADJUSTER ASSY,FR INSIDE,R |
| 46 | 86602-80G00-000 | ADJUSTER ASSY,FR INSIDE,L | ADJUSTER ASSY,FR INSIDE,L |
| 21 | 86603-70H50-000 | ADJUSTER ASSY,FR OUTSIDE,R | ADJUSTER ASSY,FR OUTSIDE,R |
| 47 | 86604-80G00-000 | ADJUSTER ASSY,FR OUTSIDE,L | ADJUSTER ASSY,FR OUTSIDE,L |
| 22 | 86691-80G00-000 | HANDLE,FR ADJ,R | HANDLE,FR ADJ,R |
| 48 | 86891-80G00-000 | HANDLE,FR ADJUSTER,L | HANDLE,FR ADJUSTER,L |
