Search › Compare › HR51S × HT51S
HR51S
Suzuki OTHER-MODELS — 24 of 2,489 shared
HT51S
Suzuki KEI-SWIFT — 24 of 2,596 shared

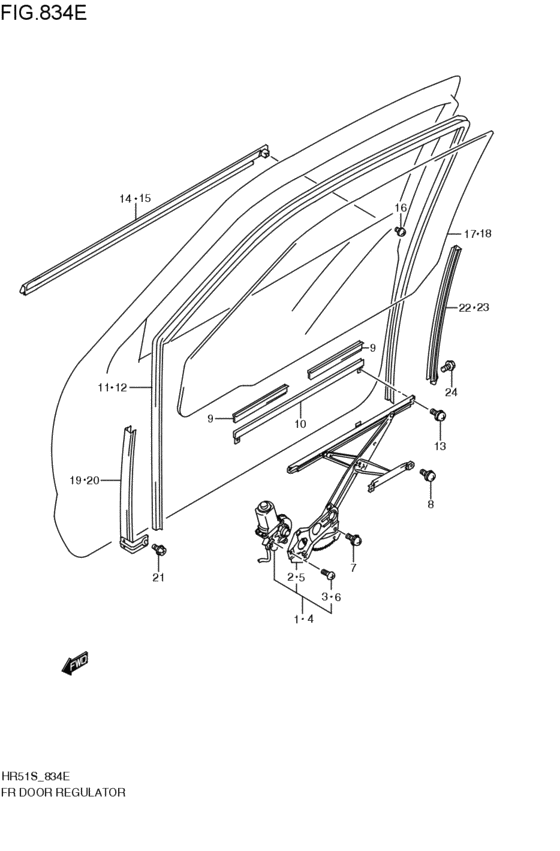

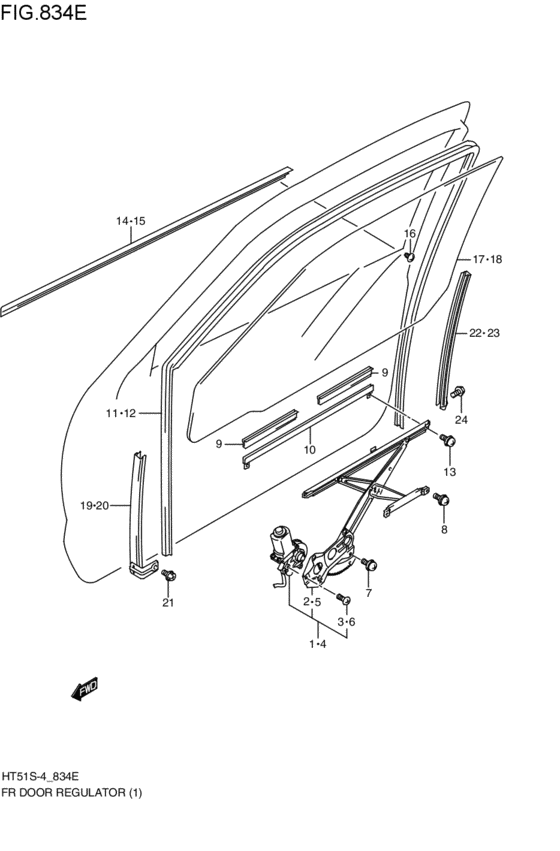

front door regulator (2001-10-01~) 24 / 24
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 1 | 83401-81G20-000 | REGULATOR ASSY,FR WINDOW,R | REGULATOR ASSY,FR WINDOW,R |
| 2 | 83410-81G10-000 | REGULATOR,FR WINDOW,R | REGULATOR,FR WINDOW,R |
| 3 | 09139-05063-000 | SCREW(5X11) | SCREW(5X11) |
| 4 | 83402-81G00-000 | REGULATOR ASSY,FR WINDOW,L | REGULATOR ASSY,FR WINDOW,L |
| 5 | 83440-81G10-000 | REGULATOR,FR WINDOW,L | REGULATOR,FR WINDOW,L |
| 7 | 02112-76103-000 | Screw | Screw |
| 7 | 02112-7610A-000 | SCREW | SCREW |
| 9 | 83691-76G00-000 | RUBBER,GLASS BOTTOM | RUBBER,GLASS BOTTOM |
| 10 | 83610-53E00-000 | CHANNEL,RR DR GLASS BOTTOM | CHANNEL,RR DR GLASS BOTTOM |
| 11 | 83661-81G00-000 | RUN,FR DOOR GLASS,R | RUN,FR DOOR GLASS,R |
| 12 | 83665-81G00-000 | RUN,FR DOOR GLASS,L | RUN,FR DOOR GLASS,L |
| 14 | 83811-75G00-000 | WEATHERSTRIP,FR DR OUT.R | WEATHERSTRIP,FR DR OUT.R |
| 15 | 83821-75G00-000 | WEATHERSTRIP,FR DR OUT.L | WEATHERSTRIP,FR DR OUT.L |
| 16 | 09136-05059-000 | SCREW(5X12) | SCREW(5X12) |
| 17 | 84531-75G10-000 | GLASS,FR DR WDO,R | GLASS,FR DR WDO,R |
| 18 | 84536-75G10-000 | GLASS,FR DR WDO,L | GLASS,FR DR WDO,L |
| 19 | 81710-75G00-000 | SASH,FR DOOR FRONT LWR,R | SASH,FR DOOR FRONT LWR,R |
| 20 | 81720-75G00-000 | SASH,FR DOOR FRONT LWR,L | SASH,FR DOOR FRONT LWR,L |
| 21 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 21 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 21 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 22 | 81730-75G00-000 | SASH,FR DOOR REAR,R | SASH,FR DOOR REAR,R |
| 23 | 81740-75G00-000 | SASH,FR DOOR REAR,L | SASH,FR DOOR REAR,L |
| 24 | 09122-76001-000 | SCREW(6X16) | SCREW(6X16) |
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 7 | 02112-76103-000 | Screw | Screw |
| 7 | 02112-7610A-000 | SCREW | SCREW |
| 8 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 8 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 8 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 24 | 09122-76001-000 | SCREW(6X16) | SCREW(6X16) |
| 16 | 09136-05059-000 | SCREW(5X12) | SCREW(5X12) |
| 3 | 09139-05063-000 | SCREW(5X11) | SCREW(5X11) |
| 19 | 81710-75G00-000 | SASH,FR DOOR FRONT LWR,R | SASH,FR DOOR FRONT LWR,R |
| 20 | 81720-75G00-000 | SASH,FR DOOR FRONT LWR,L | SASH,FR DOOR FRONT LWR,L |
| 22 | 81730-75G00-000 | SASH,FR DOOR REAR,R | SASH,FR DOOR REAR,R |
| 23 | 81740-75G00-000 | SASH,FR DOOR REAR,L | SASH,FR DOOR REAR,L |
| 1 | 83401-81G20-000 | REGULATOR ASSY,FR WINDOW,R | REGULATOR ASSY,FR WINDOW,R |
| 4 | 83402-81G00-000 | REGULATOR ASSY,FR WINDOW,L | REGULATOR ASSY,FR WINDOW,L |
| 2 | 83410-81G10-000 | REGULATOR,FR WINDOW,R | REGULATOR,FR WINDOW,R |
| 5 | 83440-81G10-000 | REGULATOR,FR WINDOW,L | REGULATOR,FR WINDOW,L |
| 10 | 83610-53E00-000 | CHANNEL,RR DR GLASS BOTTOM | CHANNEL,RR DR GLASS BOTTOM |
| 11 | 83661-81G00-000 | RUN,FR DOOR GLASS,R | RUN,FR DOOR GLASS,R |
| 12 | 83665-81G00-000 | RUN,FR DOOR GLASS,L | RUN,FR DOOR GLASS,L |
| 9 | 83691-76G00-000 | RUBBER,GLASS BOTTOM | RUBBER,GLASS BOTTOM |
| 14 | 83811-75G00-000 | WEATHERSTRIP,FR DR OUT.R | WEATHERSTRIP,FR DR OUT.R |
| 15 | 83821-75G00-000 | WEATHERSTRIP,FR DR OUT.L | WEATHERSTRIP,FR DR OUT.L |
| 17 | 84531-75G10-000 | GLASS,FR DR WDO,R | GLASS,FR DR WDO,R |
| 18 | 84536-75G10-000 | GLASS,FR DR WDO,L | GLASS,FR DR WDO,L |
