Search › Compare › HR51S × HT51S
HR51S
Suzuki OTHER-MODELS — 21 of 2,489 shared
HT51S
Suzuki KEI-SWIFT — 21 of 2,596 shared

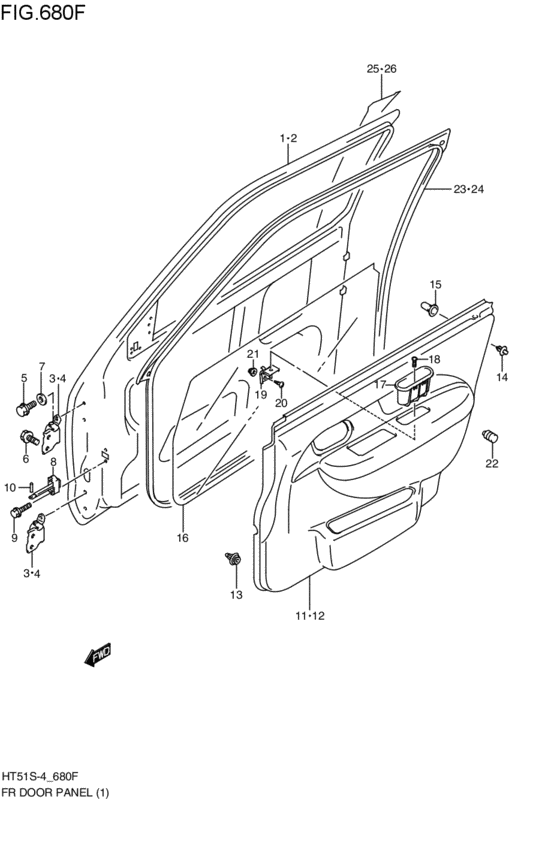

front door panel (2001-10-01~) 21 / 32
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 1 | 68001-83G01-000 | PANEL ASSY,FRONT DOOR,R | PANEL ASSY,FRONT DOOR,R |
| 2 | 68002-81G01-000 | PANEL ASSY,FRONT DOOR,L | PANEL ASSY,FRONT DOOR,L |
| 3 | 69310-60G01-000 | HINGE,FR DR NO.1 | HINGE,FR DR NO.1 |
| 3 | 69320-60G01-000 | HINGE,FR DR NO.2 | HINGE,FR DR NO.2 |
| 5 | 09103-08389-000 | BOLT(8X24) | BOLT(8X24) |
| 6 | 01551-0820A-000 | Bolt | Bolt |
| 7 | 69480-65D00-000 | Washer | Washer |
| 8 | 81810-65D00-000 | STOP,FRONT DOOR OPEN | STOP,FRONT DOOR OPEN |
| 9 | 09122-86004-000 | SCREW(6X20) | SCREW(6X20) |
| 10 | 81831-70B00-000 | PIN,DOOR OPEN STOPPER BODY | PIN,DOOR OPEN STOPPER BODY |
| 13 | 09409-08320-000 | CLIP | CLIP |
| 14 | 09409-06314-P4Z | CLIP(GRAY) | CLIP(GRAY) |
| 15 | 83751-75G00-000 | SEAL,CLIP | SEAL,CLIP |
| 16 | 83911-60X51-000 | Cover, door sealing (600x1200) | Cover, door sealing (600x1200) |
| 16 | 83911-60X52-000 | COVER,DR SEALING | COVER,DR SEALING |
| 21 | 09148-06007-000 | NUT | NUT |
| 22 | 82711-56B00-000 | STOPPER,FR DOOR - Stopper, fr dr lower | STOPPER,FR DOOR - Stopper, fr dr lower |
| 23 | 84641-75G00-000 | WEATHERSTRIP,FR DR OPNG,R | WEATHERSTRIP,FR DR OPNG,R |
| 24 | 84651-75G00-000 | WEATHERSTRIP,FR DR OPNG,L | WEATHERSTRIP,FR DR OPNG,L |
| 25 | 83921-75G00-0CB | TAPE,FR DOOR OUTER,R | TAPE,FR DOOR OUTER,R |
| 26 | 83922-75G00-0CB | TAPE,FR DOOR OUTER,L | TAPE,FR DOOR OUTER,L |
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 6 | 01551-0820A-000 | Bolt | Bolt |
| 5 | 09103-08389-000 | BOLT(8X24) | BOLT(8X24) |
| 9 | 09122-86004-000 | SCREW(6X20) | SCREW(6X20) |
| 31 | 09148-06007-000 | NUT | NUT |
| 14 | 09409-06314-P4Z | CLIP(GRAY) | CLIP(GRAY) |
| 11 | 09409-08320-000 | CLIP | CLIP |
| 1 | 68001-83G01-000 | PANEL ASSY,FRONT DOOR,R | PANEL ASSY,FRONT DOOR,R |
| 2 | 68002-81G01-000 | PANEL ASSY,FRONT DOOR,L | PANEL ASSY,FRONT DOOR,L |
| 3 | 69310-60G01-000 | HINGE,FR DR NO.1 | HINGE,FR DR NO.1 |
| 3 | 69320-60G01-000 | HINGE,FR DR NO.2 | HINGE,FR DR NO.2 |
| 7 | 69480-65D00-000 | Washer | Washer |
| 8 | 81810-65D00-000 | STOP,FRONT DOOR OPEN | STOP,FRONT DOOR OPEN |
| 10 | 81831-70B00-000 | PIN,DOOR OPEN STOPPER BODY | PIN,DOOR OPEN STOPPER BODY |
| 22 | 82711-56B00-000 | STOPPER,FR DOOR - Stopper, fr dr lower | STOPPER,FR DOOR - Stopper, fr dr lower |
| 15 | 83751-75G00-000 | SEAL,CLIP | SEAL,CLIP |
| 16 | 83911-60X51-000 | Cover, door sealing (600x1200) | Cover, door sealing (600x1200) |
| 16 | 83911-60X52-000 | COVER,DR SEALING | COVER,DR SEALING |
| 25 | 83921-75G00-0CB | TAPE,FR DOOR OUTER,R | TAPE,FR DOOR OUTER,R |
| 26 | 83922-75G00-0CB | TAPE,FR DOOR OUTER,L | TAPE,FR DOOR OUTER,L |
| 23 | 84641-75G00-000 | WEATHERSTRIP,FR DR OPNG,R | WEATHERSTRIP,FR DR OPNG,R |
| 24 | 84651-75G00-000 | WEATHERSTRIP,FR DR OPNG,L | WEATHERSTRIP,FR DR OPNG,L |
