Search › Compare › HR51S × HT51S
HR51S
Suzuki OTHER-MODELS — 9 of 2,489 shared
HT51S
Suzuki KEI-SWIFT — 9 of 2,596 shared

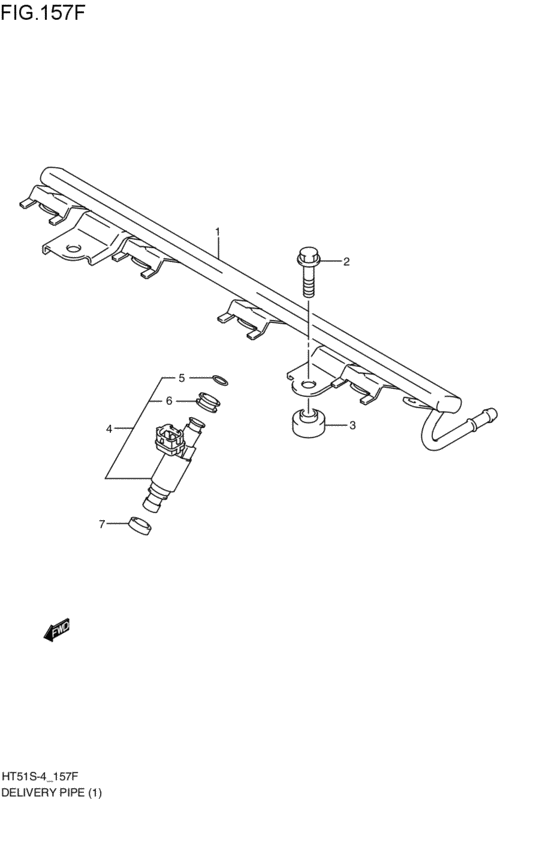

delivery pipe / fuel injector (2001-10-01~) 9 / 9
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 1 | 15730-80GA0-000 | PIPE,FUEL DELIVERY | PIPE,FUEL DELIVERY |
| 2 | 01550-08303-000 | Bolt | Bolt |
| 2 | 01550-0830B-000 | Bolt | Bolt |
| 2 | 01550-0830A-000 | Bolt - Bolt, mount oil seal cover | Bolt - Bolt, mount oil seal cover |
| 3 | 15735-58B00-000 | INSULATOR,DELIVERY PIPE - Insulator, delivery pipe | INSULATOR,DELIVERY PIPE - Insulator, delivery pipe |
| 4 | 15710-80G01-000 | INJECTOR ASSY,FUEL | INJECTOR ASSY,FUEL |
| 5 | 15710-09300-000 | O-RING | O-RING |
| 6 | 15720-09300-000 | GROMMET | GROMMET |
| 7 | 09320-08062-000 | CUSHION | CUSHION |
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 1 | 01550-08303-000 | Bolt | Bolt |
| 1 | 01550-0830A-000 | Bolt - Bolt, mount oil seal cover | Bolt - Bolt, mount oil seal cover |
| 1 | 01550-0830B-000 | Bolt | Bolt |
| 7 | 09320-08062-000 | CUSHION | CUSHION |
| 5 | 15710-09300-000 | O-RING | O-RING |
| 4 | 15710-80G01-000 | INJECTOR ASSY,FUEL | INJECTOR ASSY,FUEL |
| 6 | 15720-09300-000 | GROMMET | GROMMET |
| 1 | 15730-80GA0-000 | PIPE,FUEL DELIVERY | PIPE,FUEL DELIVERY |
| 3 | 15735-58B00-000 | INSULATOR,DELIVERY PIPE - Insulator, delivery pipe | INSULATOR,DELIVERY PIPE - Insulator, delivery pipe |
