Search › Compare › HR51S × HT51S
HR51S
Suzuki OTHER-MODELS — 19 of 2,489 shared
HT51S
Suzuki KEI-SWIFT — 19 of 2,596 shared

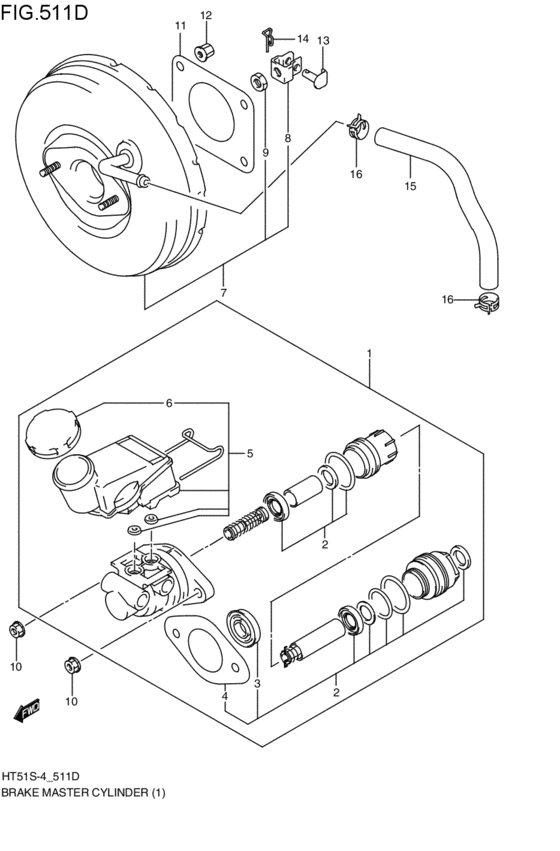

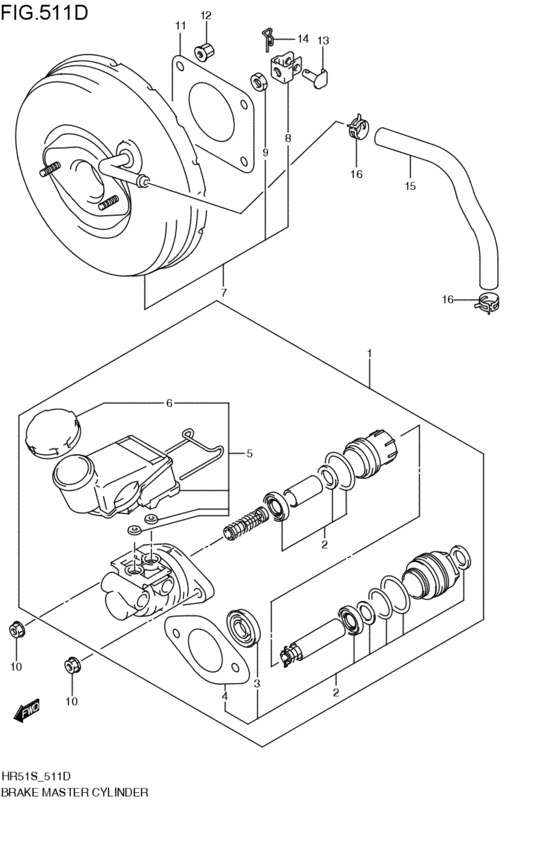

brakes master cylinder (2001-10-01~) 19 / 19
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 1 | 51100-80G61-000 | CYLINDER ASSY,BRAKE MASTER | CYLINDER ASSY,BRAKE MASTER |
| 2 | 51810-76F20-000 | PISTON SET,BRAKE MASTER | PISTON SET,BRAKE MASTER |
| 3 | 51311-76F20-000 | SEAL,BRAKE MASTER CYLINDER | SEAL,BRAKE MASTER CYLINDER |
| 4 | 51312-76F20-000 | GASKET,BRAKE MASTER CYLINDER | GASKET,BRAKE MASTER CYLINDER |
| 5 | 51200-80G00-000 | RESERVOIR ASSY,MASTER CYLINDER | RESERVOIR ASSY,MASTER CYLINDER |
| 6 | 51220-75F51-000 | Cap,reservoir | Cap,reservoir |
| 6 | 51220-77M00-000 | CAP,RESERVOIR | CAP,RESERVOIR |
| 7 | 51300-80G50-000 | ブースタアッシ,ブレーキマスタ | ブースタアッシ,ブレーキマスタ |
| 7 | 51300-80G51-000 | BOOSTER ASSY,BRAKE MASTER | BOOSTER ASSY,BRAKE MASTER |
| 8 | 51182-60D10-000 | CLEVIS,CYLINDER PUSH ROD | CLEVIS,CYLINDER PUSH ROD |
| 9 | 08316-10103-000 | Nut | Nut |
| 9 | 08316-1010B-000 | NUT | NUT |
| 10 | 09159-08075-000 | NUT | NUT |
| 11 | 51132-82003-000 | PACKING,BRAKE MASTER CYLINDER | PACKING,BRAKE MASTER CYLINDER |
| 12 | 09159-08127-000 | NUT | NUT |
| 13 | 09200-08069-000 | PIN | PIN |
| 14 | 09385-08007-000 | PIN,SNAP - Clip | PIN,SNAP - Clip |
| 15 | 51010-80G00-000 | HOSE,BRAKE VACUUM | HOSE,BRAKE VACUUM |
| 16 | 09401-15404-000 | CLIP | CLIP |
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 6 | 08316-10103-000 | Nut | Nut |
| 6 | 08316-1010B-000 | NUT | NUT |
| 10 | 09159-08075-000 | NUT | NUT |
| 12 | 09159-08127-000 | NUT | NUT |
| 13 | 09200-08069-000 | PIN | PIN |
| 14 | 09385-08007-000 | PIN,SNAP - Clip | PIN,SNAP - Clip |
| 16 | 09401-15404-000 | CLIP | CLIP |
| 15 | 51010-80G00-000 | HOSE,BRAKE VACUUM | HOSE,BRAKE VACUUM |
| 1 | 51100-80G61-000 | CYLINDER ASSY,BRAKE MASTER | CYLINDER ASSY,BRAKE MASTER |
| 11 | 51132-82003-000 | PACKING,BRAKE MASTER CYLINDER | PACKING,BRAKE MASTER CYLINDER |
| 8 | 51182-60D10-000 | CLEVIS,CYLINDER PUSH ROD | CLEVIS,CYLINDER PUSH ROD |
| 5 | 51200-80G00-000 | RESERVOIR ASSY,MASTER CYLINDER | RESERVOIR ASSY,MASTER CYLINDER |
| 6 | 51220-75F51-000 | Cap,reservoir | Cap,reservoir |
| 6 | 51220-77M00-000 | CAP,RESERVOIR | CAP,RESERVOIR |
| 7 | 51300-80G50-000 | ブースタアッシ,ブレーキマスタ | ブースタアッシ,ブレーキマスタ |
| 7 | 51300-80G51-000 | BOOSTER ASSY,BRAKE MASTER | BOOSTER ASSY,BRAKE MASTER |
| 3 | 51311-76F20-000 | SEAL,BRAKE MASTER CYLINDER | SEAL,BRAKE MASTER CYLINDER |
| 4 | 51312-76F20-000 | GASKET,BRAKE MASTER CYLINDER | GASKET,BRAKE MASTER CYLINDER |
| 2 | 51810-76F20-000 | PISTON SET,BRAKE MASTER | PISTON SET,BRAKE MASTER |
