Search › Compare › HR51S × HT51S
HR51S
Suzuki OTHER-MODELS — 23 of 2,489 shared
HT51S
Suzuki KEI-SWIFT — 23 of 2,596 shared

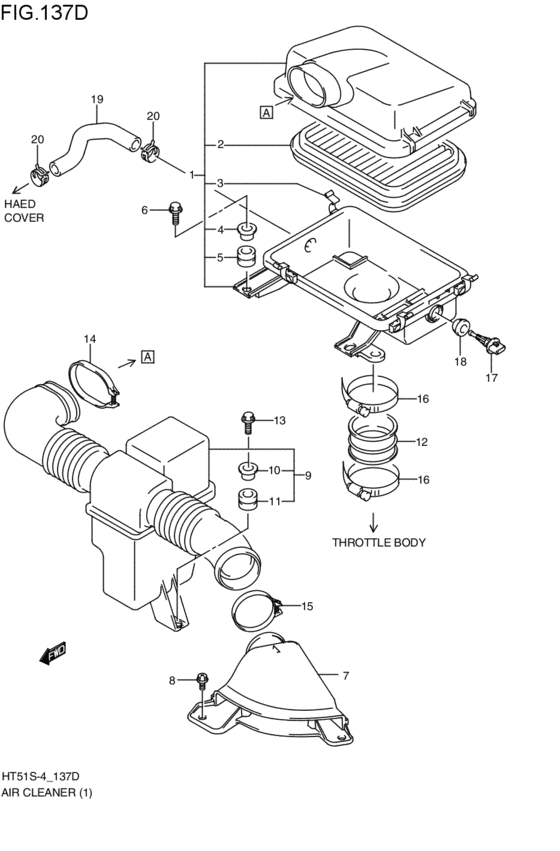

air cleaner (2001-10-01~) 23 / 25
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 1 | 13700-80GA1-000 | CLEANER ASSY,AIR | CLEANER ASSY,AIR |
| 2 | 13780-80GA0-000 | ELEMENT,AIR CLEANER | ELEMENT,AIR CLEANER |
| 3 | 13755-80GA0-000 | CLIP,AIR CLEANER CASE | CLIP,AIR CLEANER CASE |
| 4 | 09169-09008-000 | WASHER | WASHER |
| 5 | 09320-11017-000 | CUSHION | CUSHION |
| 6 | 01550-06253-000 | Bolt (6x25) | Bolt (6x25) |
| 6 | 01550-0625B-000 | Bolt - Bolt, head cover | Bolt - Bolt, head cover |
| 6 | 01550-0625A-000 | Bolt | Bolt |
| 7 | 13765-70H00-000 | PIPE,AIR CLNR SUCTION | PIPE,AIR CLNR SUCTION |
| 8 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 8 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 8 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 9 | 13870-80GA0-000 | PIPE,AIR INTAKE | PIPE,AIR INTAKE |
| 12 | 13881-80G00-000 | HOSE,AIR CLEANER OUTLET | HOSE,AIR CLEANER OUTLET |
| 13 | 01550-06203-000 | Bolt | Bolt |
| 13 | 01550-0620B-000 | Bolt - Bolt, inspection cap | Bolt - Bolt, inspection cap |
| 14 | 13875-80G00-000 | CLAMP,AIR CLEANER HOSE | CLAMP,AIR CLEANER HOSE |
| 15 | 09402-58208-000 | CLAMP | CLAMP |
| 17 | 13650-52G00-000 | SENSOR,INLET AIR TEMP - Sensor, inlet air temp | SENSOR,INLET AIR TEMP - Sensor, inlet air temp |
| 18 | 13655-77E00-000 | GROMMET,AIR TEMP SENSOR - Grommet, air temp sensor | GROMMET,AIR TEMP SENSOR - Grommet, air temp sensor |
| 18 | 13655-77E10-000 | Grommet,air Temp Sensor | Grommet,air Temp Sensor |
| 19 | 11191-80GA0-000 | HOSE,BREATHER | HOSE,BREATHER |
| 20 | 09401-18404-000 | CLIP | CLIP |
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 13 | 01550-06203-000 | Bolt | Bolt |
| 13 | 01550-0620B-000 | Bolt - Bolt, inspection cap | Bolt - Bolt, inspection cap |
| 6 | 01550-06253-000 | Bolt (6x25) | Bolt (6x25) |
| 6 | 01550-0625A-000 | Bolt | Bolt |
| 6 | 01550-0625B-000 | Bolt - Bolt, head cover | Bolt - Bolt, head cover |
| 8 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 8 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 8 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 4 | 09169-09008-000 | WASHER | WASHER |
| 5 | 09320-11017-000 | CUSHION | CUSHION |
| 20 | 09401-18404-000 | CLIP | CLIP |
| 15 | 09402-58208-000 | CLAMP | CLAMP |
| 19 | 11191-80GA0-000 | HOSE,BREATHER | HOSE,BREATHER |
| 17 | 13650-52G00-000 | SENSOR,INLET AIR TEMP - Sensor, inlet air temp | SENSOR,INLET AIR TEMP - Sensor, inlet air temp |
| 18 | 13655-77E00-000 | GROMMET,AIR TEMP SENSOR - Grommet, air temp sensor | GROMMET,AIR TEMP SENSOR - Grommet, air temp sensor |
| 18 | 13655-77E10-000 | Grommet,air Temp Sensor | Grommet,air Temp Sensor |
| 1 | 13700-80GA1-000 | CLEANER ASSY,AIR | CLEANER ASSY,AIR |
| 3 | 13755-80GA0-000 | CLIP,AIR CLEANER CASE | CLIP,AIR CLEANER CASE |
| 7 | 13765-70H00-000 | PIPE,AIR CLNR SUCTION | PIPE,AIR CLNR SUCTION |
| 2 | 13780-80GA0-000 | ELEMENT,AIR CLEANER | ELEMENT,AIR CLEANER |
| 9 | 13870-80GA0-000 | PIPE,AIR INTAKE | PIPE,AIR INTAKE |
| 14 | 13875-80G00-000 | CLAMP,AIR CLEANER HOSE | CLAMP,AIR CLEANER HOSE |
| 12 | 13881-80G00-000 | HOSE,AIR CLEANER OUTLET | HOSE,AIR CLEANER OUTLET |
