Search › Compare › HR51S × HT51S
HR51S
Suzuki OTHER-MODELS — 19 of 2,489 shared
HT51S
Suzuki KEI-SWIFT — 19 of 2,596 shared

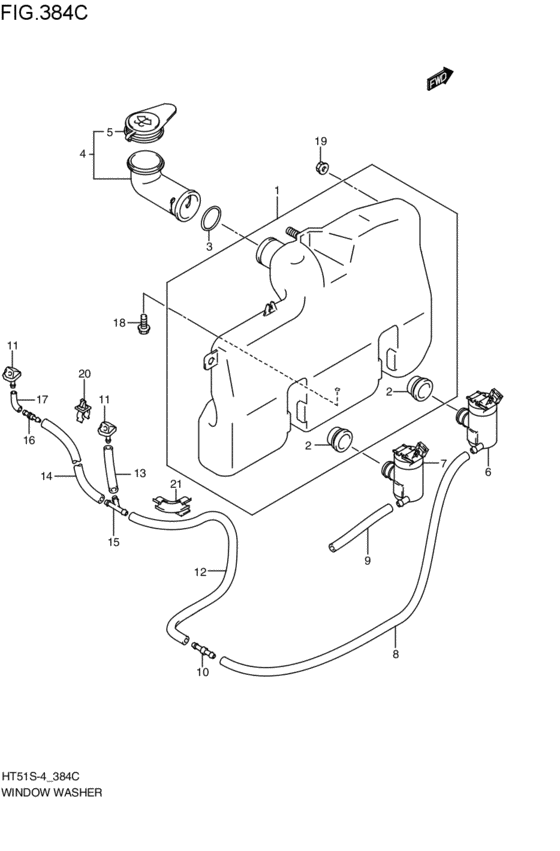

ウインドウオッシャ (2001-10-01~) 19 / 23
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 1 | 38450-80G50-000 | TANK ASSY,WASHER | TANK ASSY,WASHER |
| 2 | 38453-75000-000 | GROMMET | GROMMET |
| 3 | 38454-80G00-000 | O-RING,INLET PIPE | O-RING,INLET PIPE |
| 4 | 38402-80G10-000 | INLET&CAP SET,WASHER | INLET&CAP SET,WASHER |
| 5 | 38452-76G00-000 | CAP,WASHER TANK | CAP,WASHER TANK |
| 7 | 38410-66113-000 | PUMP ASSY,WASHER - Pump assy, washer | PUMP ASSY,WASHER - Pump assy, washer |
| 9 | 38491-61A00-000 | HOSE,WASHER L:1300 - Hose, washer (l:1300->80) | HOSE,WASHER L:1300 - Hose, washer (l:1300->80) |
| 11 | 38496-56B00-000 | CONNECTOR | CONNECTOR |
| 12 | 38480-80G10-000 | NOZZLE,WASHER | NOZZLE,WASHER |
| 13 | 38459-50J00-000 | HOSE,WASHER L:810 | HOSE,WASHER L:810 |
| 16 | 38496-71311-000 | CONNECTOR,THREE WAY | CONNECTOR,THREE WAY |
| 17 | 38833-79501-000 | VALVE,WASHER HOSE | VALVE,WASHER HOSE |
| 18 | 38454-71B10-000 | JOINT,ELBOW | JOINT,ELBOW |
| 19 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 19 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 19 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 20 | 08316-10063-000 | Nut | Nut |
| 20 | 08316-1006B-000 | NUT | NUT |
| 22 | 34935-75F10-000 | CLAMP,WASHER HOSE | CLAMP,WASHER HOSE |
| # | OEM | HR51S | HT51S |
|---|---|---|---|
| 8 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 8 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 8 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 22 | 08316-10063-000 | Nut | Nut |
| 22 | 08316-1006B-000 | NUT | NUT |
| 22 | 34935-75F10-000 | CLAMP,WASHER HOSE | CLAMP,WASHER HOSE |
| 4 | 38402-80G10-000 | INLET&CAP SET,WASHER | INLET&CAP SET,WASHER |
| 7 | 38410-66113-000 | PUMP ASSY,WASHER - Pump assy, washer | PUMP ASSY,WASHER - Pump assy, washer |
| 1 | 38450-80G50-000 | TANK ASSY,WASHER | TANK ASSY,WASHER |
| 5 | 38452-76G00-000 | CAP,WASHER TANK | CAP,WASHER TANK |
| 2 | 38453-75000-000 | GROMMET | GROMMET |
| 18 | 38454-71B10-000 | JOINT,ELBOW | JOINT,ELBOW |
| 3 | 38454-80G00-000 | O-RING,INLET PIPE | O-RING,INLET PIPE |
| 10 | 38459-50J00-000 | HOSE,WASHER L:810 | HOSE,WASHER L:810 |
| 12 | 38480-80G10-000 | NOZZLE,WASHER | NOZZLE,WASHER |
| 9 | 38491-61A00-000 | HOSE,WASHER L:1300 - Hose, washer (l:1300->80) | HOSE,WASHER L:1300 - Hose, washer (l:1300->80) |
| 11 | 38496-56B00-000 | CONNECTOR | CONNECTOR |
| 16 | 38496-71311-000 | CONNECTOR,THREE WAY | CONNECTOR,THREE WAY |
| 17 | 38833-79501-000 | VALVE,WASHER HOSE | VALVE,WASHER HOSE |
