Search › Compare › HR51S × HR81S
HR51S
Suzuki OTHER-MODELS — 18 of 2,489 shared
HR81S
Suzuki OTHER-MODELS — 18 of 2,491 shared

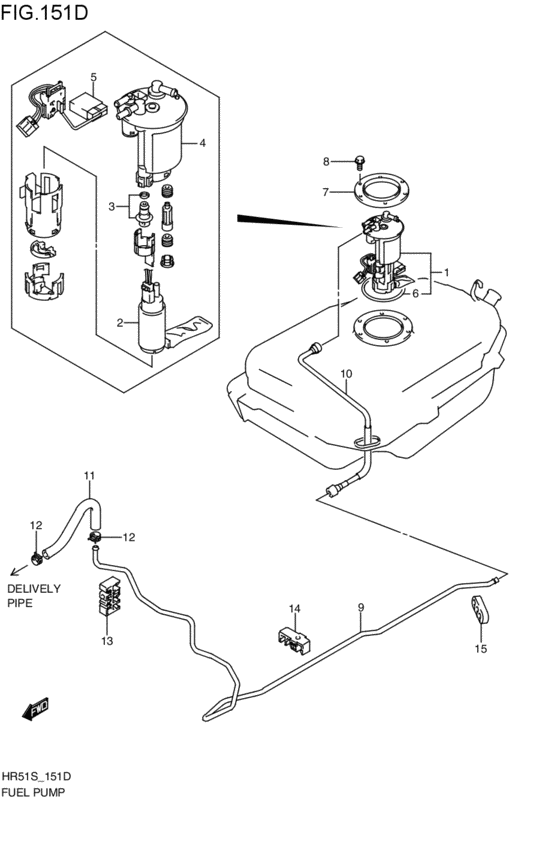

Fuel Pump (2001-10-01~) 18 / 18
| # | OEM | HR51S | HR81S |
|---|---|---|---|
| 1 | 15100-78851-000 | ポンプセット,フューエル | ポンプセット,フューエル |
| 1 | 15100-78852-000 | PUMP SET,FUEL | PUMP SET,FUEL |
| 2 | 15110-65G00-000 | PUMP ASSY,FUEL | PUMP ASSY,FUEL |
| 3 | 15610-76G50-000 | REGULATOR ASSY,FUEL | REGULATOR ASSY,FUEL |
| 4 | 15310-78F00-000 | FILTER ASSY | FILTER ASSY |
| 4 | 15310-78F01-000 | FILTER ASSY,FUEL | FILTER ASSY,FUEL |
| 5 | 34810-78F00-000 | GAUGE ASSY,LEVEL | GAUGE ASSY,LEVEL |
| 6 | 15111-50G01-000 | GASKET,FUEL PUMP | GASKET,FUEL PUMP |
| 7 | 15121-50G00-000 | PLATE,FUEL PUMP | PLATE,FUEL PUMP |
| 8 | 02162-06103-000 | Bolt - Bolt, bracket | Bolt - Bolt, bracket |
| 8 | 02162-0610A-000 | SCREW | SCREW |
| 9 | 15811-80G00-000 | PIPE,FUEL | PIPE,FUEL |
| 10 | 15812-78F01-000 | PIPE,FUEL PUMP TO PIPE | PIPE,FUEL PUMP TO PIPE |
| 11 | 15815-80G00-000 | HOSE,FUEL PIPE TO ENG | HOSE,FUEL PIPE TO ENG |
| 12 | 09401-13419-000 | CLIP | CLIP |
| 13 | 15882-80G00-000 | CLAMP,FUEL PIPE | CLAMP,FUEL PIPE |
| 14 | 15893-83G01-000 | CLAMP,FUEL PIPE | CLAMP,FUEL PIPE |
| 15 | 15438-76G00-000 | CUSHION,FUEL PIPE | CUSHION,FUEL PIPE |
| # | OEM | HR51S | HR81S |
|---|---|---|---|
| 14 | 02162-06103-000 | Bolt - Bolt, bracket | Bolt - Bolt, bracket |
| 14 | 02162-0610A-000 | SCREW | SCREW |
| 12 | 09401-13419-000 | CLIP | CLIP |
| 1 | 15100-78851-000 | ポンプセット,フューエル | ポンプセット,フューエル |
| 1 | 15100-78852-000 | PUMP SET,FUEL | PUMP SET,FUEL |
| 2 | 15110-65G00-000 | PUMP ASSY,FUEL | PUMP ASSY,FUEL |
| 6 | 15111-50G01-000 | GASKET,FUEL PUMP | GASKET,FUEL PUMP |
| 7 | 15121-50G00-000 | PLATE,FUEL PUMP | PLATE,FUEL PUMP |
| 4 | 15310-78F00-000 | FILTER ASSY | FILTER ASSY |
| 4 | 15310-78F01-000 | FILTER ASSY,FUEL | FILTER ASSY,FUEL |
| 15 | 15438-76G00-000 | CUSHION,FUEL PIPE | CUSHION,FUEL PIPE |
| 3 | 15610-76G50-000 | REGULATOR ASSY,FUEL | REGULATOR ASSY,FUEL |
| 9 | 15811-80G00-000 | PIPE,FUEL | PIPE,FUEL |
| 10 | 15812-78F01-000 | PIPE,FUEL PUMP TO PIPE | PIPE,FUEL PUMP TO PIPE |
| 11 | 15815-80G00-000 | HOSE,FUEL PIPE TO ENG | HOSE,FUEL PIPE TO ENG |
| 13 | 15882-80G00-000 | CLAMP,FUEL PIPE | CLAMP,FUEL PIPE |
| 14 | 15893-83G01-000 | CLAMP,FUEL PIPE | CLAMP,FUEL PIPE |
| 5 | 34810-78F00-000 | GAUGE ASSY,LEVEL | GAUGE ASSY,LEVEL |
