Search › Compare › HDB31 × HZB31
HDB31
Toyota COASTER — 18 of 5,655 shared
HZB31
Toyota COASTER — 18 of 5,745 shared

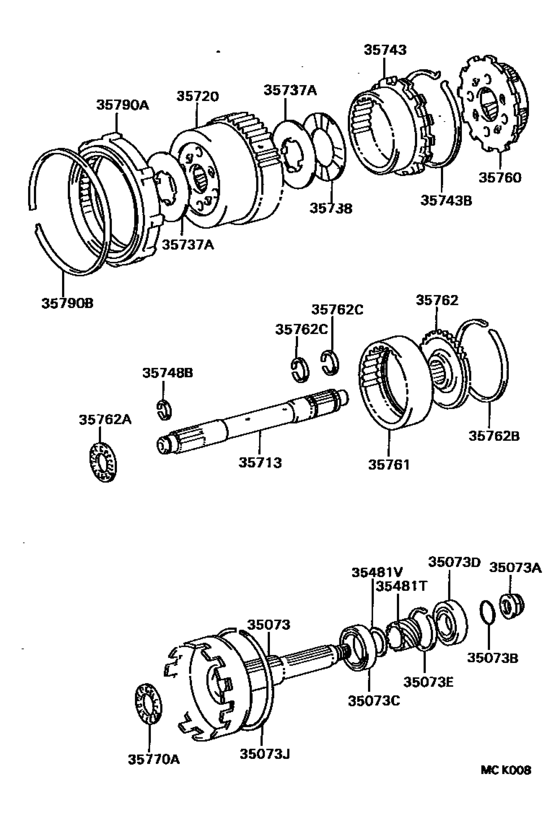

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([01.1990 - ] (9001- )HDB20,3#) 18 / 29
| # | OEM | HDB31 | HZB31 |
|---|---|---|---|
| 35073 | 35073-36020 | Shaft Sub-Assy, Output | Shaft Sub-Assy, Output |
| 35073 | 90179-22008 | Nut (For Manual Transmission Output Shaft Rear Set) | Nut (For Manual Transmission Output Shaft Rear Set) |
| 35073 | 90301-29002 | Ring, O(For Manual Transmisson Output Shaft Rear Set Nut) | Ring, O(For Manual Transmisson Output Shaft Rear Set Nut) |
| 35073 | 90363-45008 | Bearing, Radial Ball (For Output Shaft Front) | Bearing, Radial Ball (For Output Shaft Front) |
| 35073 | 90363-35019 | Bearing, Radial Ball (For Output Shaft Rear) | Bearing, Radial Ball (For Output Shaft Rear) |
| 35073 | 90521-78001 | Ring, Hole Snap (For Output Shaft Rear Bearing) | Ring, Hole Snap (For Output Shaft Rear Bearing) |
| 35073 | 90521-99042 | Ring, Hole Snap (For Output Shaft) | Ring, Hole Snap (For Output Shaft) |
| 35481 | 33481-36140 | Gear, Speedometer Drive (Atm) | Gear, Speedometer Drive (Atm) |
| 35481 | 33481-36141 | Gear, Speedometer Drive (Atm) | Gear, Speedometer Drive (Atm) |
| 35737 | 35737-60011 | Washer, Planetary Carrier Thrust, No.1 | Washer, Planetary Carrier Thrust, No.1 |
| 35743 | 90521-99018 | Ring, Hole Snap (For Direct Clutch Flange) | Ring, Hole Snap (For Direct Clutch Flange) |
| 35748 | 35748-36010 | Ring, Intermediate Shaft Oil Seal | Ring, Intermediate Shaft Oil Seal |
| 35762 | 90521-99041 | Ring, Hole Snap (For Output Shaft) | Ring, Hole Snap (For Output Shaft) |
| 35762 | 90520-22013 | Ring, Shaft Snap (For Rear Planetary Ring Gear) | Ring, Shaft Snap (For Rear Planetary Ring Gear) |
| 35790 | 35790-36010 | Clutch Assy, 1 Way | Clutch Assy, 1 Way |
| 35790 | 35790-36020 | Clutch Assy, 1 Way | Clutch Assy, 1 Way |
| 35790 | 90521-99021 | Ring, Hole Snap (For Overdrive Brake Return Spring) | Ring, Hole Snap (For Overdrive Brake Return Spring) |
| 35790 | 90521-99109 | Ring, Hole Snap (For Overdrive Brake Return Spring) | Ring, Hole Snap (For Overdrive Brake Return Spring) |
| # | OEM | HDB31 | HZB31 |
|---|---|---|---|
| 35481 | 33481-36140 | Gear, Speedometer Drive (Atm) | Gear, Speedometer Drive (Atm) |
| 35481 | 33481-36141 | Gear, Speedometer Drive (Atm) | Gear, Speedometer Drive (Atm) |
| 35073 | 35073-36020 | Shaft Sub-Assy, Output | Shaft Sub-Assy, Output |
| 35737 | 35737-60011 | Washer, Planetary Carrier Thrust, No.1 | Washer, Planetary Carrier Thrust, No.1 |
| 35748 | 35748-36010 | Ring, Intermediate Shaft Oil Seal | Ring, Intermediate Shaft Oil Seal |
| 35790 | 35790-36010 | Clutch Assy, 1 Way | Clutch Assy, 1 Way |
| 35790 | 35790-36020 | Clutch Assy, 1 Way | Clutch Assy, 1 Way |
| 35073 | 90179-22008 | Nut (For Manual Transmission Output Shaft Rear Set) | Nut (For Manual Transmission Output Shaft Rear Set) |
| 35073 | 90301-29002 | Ring, O(For Manual Transmisson Output Shaft Rear Set Nut) | Ring, O(For Manual Transmisson Output Shaft Rear Set Nut) |
| 35073 | 90363-35019 | Bearing, Radial Ball (For Output Shaft Rear) | Bearing, Radial Ball (For Output Shaft Rear) |
| 35073 | 90363-45008 | Bearing, Radial Ball (For Output Shaft Front) | Bearing, Radial Ball (For Output Shaft Front) |
| 35762 | 90520-22013 | Ring, Shaft Snap (For Rear Planetary Ring Gear) | Ring, Shaft Snap (For Rear Planetary Ring Gear) |
| 35073 | 90521-78001 | Ring, Hole Snap (For Output Shaft Rear Bearing) | Ring, Hole Snap (For Output Shaft Rear Bearing) |
| 35743 | 90521-99018 | Ring, Hole Snap (For Direct Clutch Flange) | Ring, Hole Snap (For Direct Clutch Flange) |
| 35676 | 90521-99021 | Ring, Hole Snap (For Overdrive Brake Return Spring) | Ring, Hole Snap (For Overdrive Brake Return Spring) |
| 35762 | 90521-99041 | Ring, Hole Snap (For Output Shaft) | Ring, Hole Snap (For Output Shaft) |
| 35073 | 90521-99042 | Ring, Hole Snap (For Output Shaft) | Ring, Hole Snap (For Output Shaft) |
| 35676 | 90521-99109 | Ring, Hole Snap (For Overdrive Brake Return Spring) | Ring, Hole Snap (For Overdrive Brake Return Spring) |
