Search › Compare › HA25S × HE22S
HA25S
Suzuki ALTO-A-STAR-CELERIO — 8 of 2,076 shared
HE22S
Suzuki LAPIN — 8 of 2,240 shared

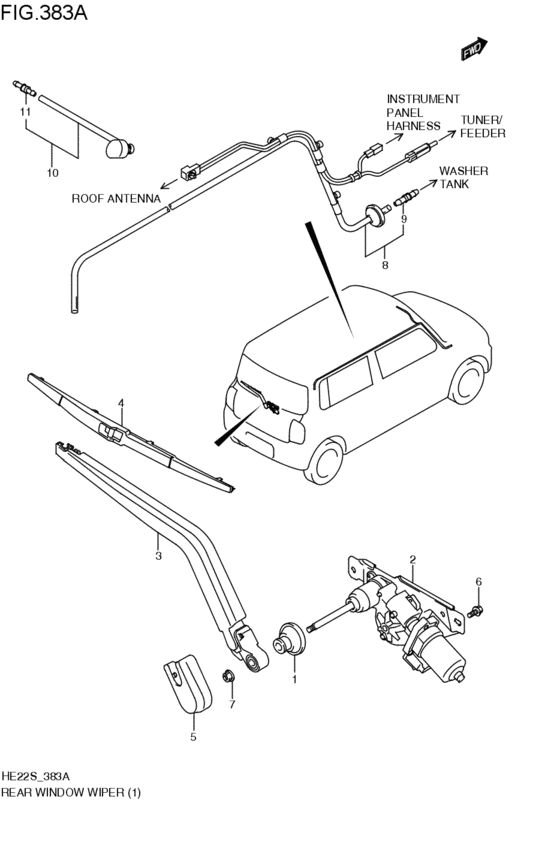

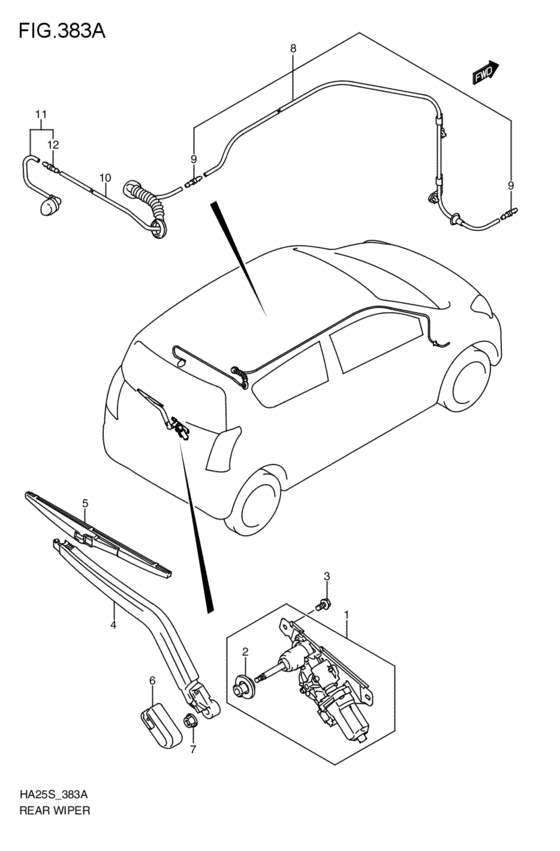

rear wind windshield wiper (4WD; 2009-09-01~) 8 / 13
| # | OEM | HA25S | HE22S |
|---|---|---|---|
| 3 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 4 | 38821-75H10-000 | ARM,RR WIPER | ARM,RR WIPER |
| 5 | 38340-85K20-000 | BLADE ASSY,WIPER RR | BLADE ASSY,WIPER RR |
| 6 | 38315-75H00-000 | COVER,ARM HEAD | COVER,ARM HEAD |
| 7 | 08316-1006A-000 | NUT | NUT |
| 9 | 38496-86010-000 | CONNECTOR | CONNECTOR |
| 9 | 38496-56B00-000 | CONNECTOR | CONNECTOR |
| 12 | 38496-61A00-000 | VALVE,CHECK | VALVE,CHECK |
| # | OEM | HA25S | HE22S |
|---|---|---|---|
| 28 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 30 | 08316-1006A-000 | NUT | NUT |
| 6 | 38315-75H00-000 | COVER,ARM HEAD | COVER,ARM HEAD |
| 5 | 38340-85K20-000 | BLADE ASSY,WIPER RR | BLADE ASSY,WIPER RR |
| 9 | 38496-56B00-000 | CONNECTOR | CONNECTOR |
| 12 | 38496-61A00-000 | VALVE,CHECK | VALVE,CHECK |
| 9 | 38496-86010-000 | CONNECTOR | CONNECTOR |
| 4 | 38821-75H10-000 | ARM,RR WIPER | ARM,RR WIPER |
