Search › Compare › HA25S × HE22S
HA25S
Suzuki ALTO-A-STAR-CELERIO — 18 of 2,076 shared
HE22S
Suzuki LAPIN — 18 of 2,240 shared

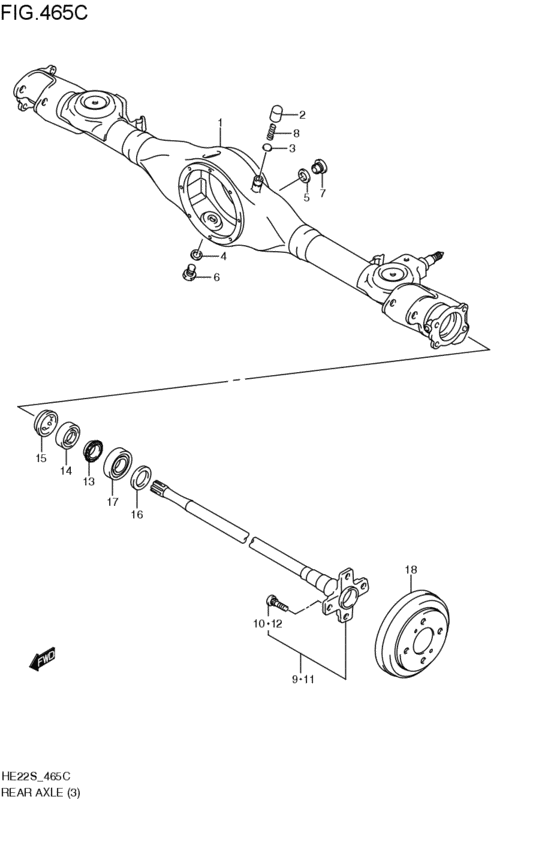

rear axle (4WD:ABS; 2009-09-01~) 18 / 18
| # | OEM | HA25S | HE22S |
|---|---|---|---|
| 1 | 46510-82KF1-000 | ハウジング,リヤアクスル | ハウジング,リヤアクスル |
| 2 | 46541-52002-000 | CAP,BREATHER | CAP,BREATHER |
| 3 | 46542-52000-000 | VALVE,BREATHER | VALVE,BREATHER |
| 3 | 46542-52001-000 | VALVE,RR AXLE HSG BREATHER | VALVE,RR AXLE HSG BREATHER |
| 4 | 09168-12002-000 | GASKET(12.1X16.2X3.7) | GASKET(12.1X16.2X3.7) |
| 5 | 09168-20003-000 | GASKET(20X27X2) - Gasket (20x27x2) | GASKET(20X27X2) - Gasket (20x27x2) |
| 6 | 09247-12003-000 | PLUG - Plug (12x13) | PLUG - Plug (12x13) |
| 7 | 09248-20003-000 | PLUG | PLUG |
| 8 | 09440-12004-000 | SPRING | SPRING |
| 9 | 44210-76810-000 | SHAFT,REAR AXLE,R | SHAFT,REAR AXLE,R |
| 10 | 09119-12012-000 | BOLT(12X38) | BOLT(12X38) |
| 11 | 44220-76810-000 | SHAFT,REAR AXLE,L | SHAFT,REAR AXLE,L |
| 13 | 43485-76GG1-000 | RING,BEARING RETAINER | RING,BEARING RETAINER |
| 14 | 09282-42001-000 | SEAL,OIL(42X55X9) - Seal, brake drum inner | SEAL,OIL(42X55X9) - Seal, brake drum inner |
| 15 | 43588-72000-000 | PROTECTOR,OIL SEAL | PROTECTOR,OIL SEAL |
| 16 | 44251-76G00-000 | SPACER,RR WHEEL BEARING | SPACER,RR WHEEL BEARING |
| 17 | 09262-30103-000 | BEARING(30X62X16) | BEARING(30X62X16) |
| 18 | 43511-76G10-000 | DRUM,BRAKE RR | DRUM,BRAKE RR |
| # | OEM | HA25S | HE22S |
|---|---|---|---|
| 2 | 09119-12012-000 | BOLT(12X38) | BOLT(12X38) |
| 4 | 09168-12002-000 | GASKET(12.1X16.2X3.7) | GASKET(12.1X16.2X3.7) |
| 5 | 09168-20003-000 | GASKET(20X27X2) - Gasket (20x27x2) | GASKET(20X27X2) - Gasket (20x27x2) |
| 6 | 09247-12003-000 | PLUG - Plug (12x13) | PLUG - Plug (12x13) |
| 7 | 09248-20003-000 | PLUG | PLUG |
| 17 | 09262-30103-000 | BEARING(30X62X16) | BEARING(30X62X16) |
| 14 | 09282-42001-000 | SEAL,OIL(42X55X9) - Seal, brake drum inner | SEAL,OIL(42X55X9) - Seal, brake drum inner |
| 8 | 09440-12004-000 | SPRING | SPRING |
| 13 | 43485-76GG1-000 | RING,BEARING RETAINER | RING,BEARING RETAINER |
| 18 | 43511-76G10-000 | DRUM,BRAKE RR | DRUM,BRAKE RR |
| 15 | 43588-72000-000 | PROTECTOR,OIL SEAL | PROTECTOR,OIL SEAL |
| 9 | 44210-76810-000 | SHAFT,REAR AXLE,R | SHAFT,REAR AXLE,R |
| 11 | 44220-76810-000 | SHAFT,REAR AXLE,L | SHAFT,REAR AXLE,L |
| 16 | 44251-76G00-000 | SPACER,RR WHEEL BEARING | SPACER,RR WHEEL BEARING |
| 1 | 46510-82KF1-000 | ハウジング,リヤアクスル | ハウジング,リヤアクスル |
| 2 | 46541-52002-000 | CAP,BREATHER | CAP,BREATHER |
| 3 | 46542-52000-000 | VALVE,BREATHER | VALVE,BREATHER |
| 3 | 46542-52001-000 | VALVE,RR AXLE HSG BREATHER | VALVE,RR AXLE HSG BREATHER |
