Search › Compare › HA25S × HE22S
HA25S
Suzuki ALTO-A-STAR-CELERIO — 13 of 2,076 shared
HE22S
Suzuki LAPIN — 13 of 2,240 shared

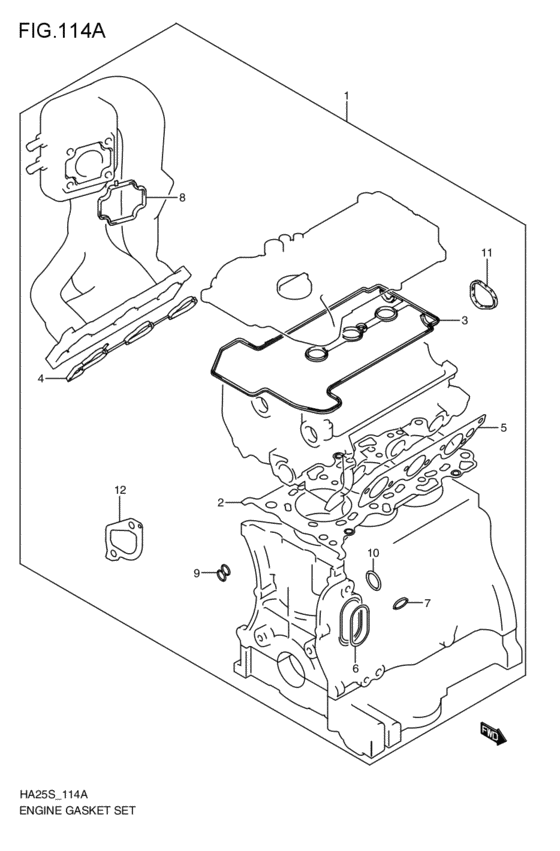

engine gasket set (2009-09-01~) 13 / 14
| # | OEM | HA25S | HE22S |
|---|---|---|---|
| 1 | 11401-70874-000 | Gasket set, Engine | Gasket set, Engine |
| 2 | 11141-73G22-000 | GASKET,CYL HEAD | GASKET,CYL HEAD |
| 3 | 11189-85K30-000 | VALVE COVER GASKET | VALVE COVER GASKET |
| 4 | 13119-85K00-000 | ガスケット,インテークマニホールド | ガスケット,インテークマニホールド |
| 5 | 14141-83G01-000 | GASKET,EXH MANF | GASKET,EXH MANF |
| 6 | 17611-73G01-000 | O ring,water pump | O ring,water pump |
| 6 | 17611-73G03-000 | O-RING,WATER PUMP | O-RING,WATER PUMP |
| 7 | 17849-53E00-000 | O-RING,WATER INLET PIPE - O ring, water inlet pipe | O-RING,WATER INLET PIPE - O ring, water inlet pipe |
| 8 | 13421-85K00-000 | GASKET,THROT BODY | GASKET,THROT BODY |
| 9 | 16118-73H00-000 | O-RING,OIL PUMP CASE | O-RING,OIL PUMP CASE |
| 10 | 17849-83G00-000 | O-RING,HEATER OUTLET PIPE | O-RING,HEATER OUTLET PIPE |
| 11 | 17675-58J01-000 | SEAL,THERMOSTAT CASE | SEAL,THERMOSTAT CASE |
| 12 | 12832-58J00-000 | GASKET,TENSIONER ADJUSTER | GASKET,TENSIONER ADJUSTER |
| # | OEM | HA25S | HE22S |
|---|---|---|---|
| 9 | 11141-73G22-000 | GASKET,CYL HEAD | GASKET,CYL HEAD |
| 11 | 11189-85K30-000 | VALVE COVER GASKET | VALVE COVER GASKET |
| 1 | 11401-70874-000 | Gasket set, Engine | Gasket set, Engine |
| 15 | 12832-58J00-000 | GASKET,TENSIONER ADJUSTER | GASKET,TENSIONER ADJUSTER |
| 4 | 13119-85K00-000 | ガスケット,インテークマニホールド | ガスケット,インテークマニホールド |
| 8 | 13421-85K00-000 | GASKET,THROT BODY | GASKET,THROT BODY |
| 5 | 14141-83G01-000 | GASKET,EXH MANF | GASKET,EXH MANF |
| 6 | 16118-73H00-000 | O-RING,OIL PUMP CASE | O-RING,OIL PUMP CASE |
| 6 | 17611-73G01-000 | O ring,water pump | O ring,water pump |
| 6 | 17611-73G03-000 | O-RING,WATER PUMP | O-RING,WATER PUMP |
| 11 | 17675-58J01-000 | SEAL,THERMOSTAT CASE | SEAL,THERMOSTAT CASE |
| 7 | 17849-53E00-000 | O-RING,WATER INLET PIPE - O ring, water inlet pipe | O-RING,WATER INLET PIPE - O ring, water inlet pipe |
| 10 | 17849-83G00-000 | O-RING,HEATER OUTLET PIPE | O-RING,HEATER OUTLET PIPE |
