Search › Compare › HA25S × HE22S
HA25S
Suzuki ALTO-A-STAR-CELERIO — 24 of 2,076 shared
HE22S
Suzuki LAPIN — 24 of 2,240 shared

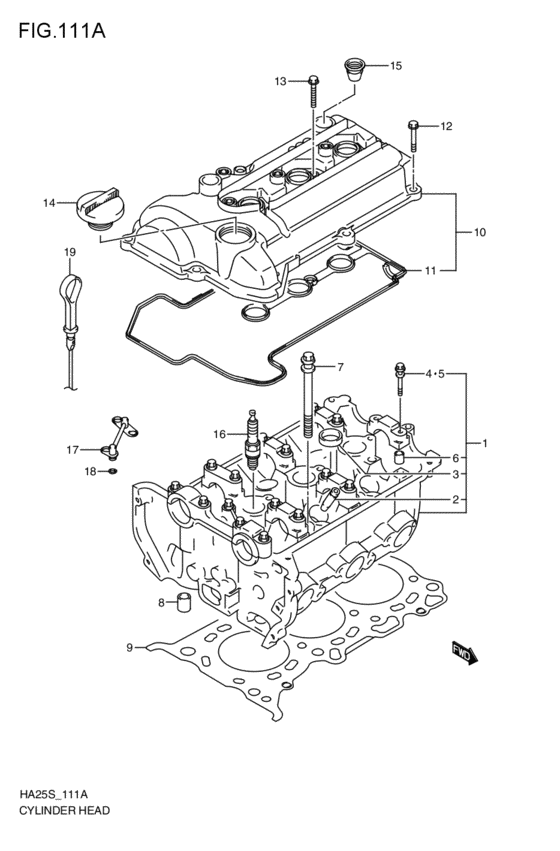

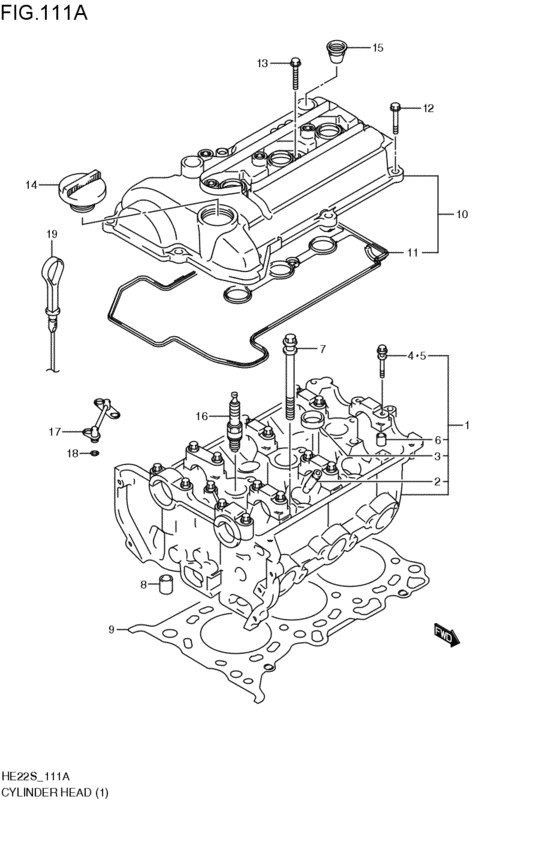

Cylinder head (2009-09-01~) 24 / 24
| # | OEM | HA25S | HE22S |
|---|---|---|---|
| 1 | 11100-85K32-000 | ヘッドアッシ,シリンダ | ヘッドアッシ,シリンダ |
| 2 | 11115-73G01-001 | GUIDE,VALVE | GUIDE,VALVE |
| 3 | 09241-20006-000 | PLUG - Plug, crank pin oil | PLUG - Plug, crank pin oil |
| 4 | 11128-69G01-000 | BOLT,CAMSHAFT HOUSING 6X39 | BOLT,CAMSHAFT HOUSING 6X39 |
| 5 | 11128-78G70-000 | BOLT,CAMSHAFT HOUSING 6X42 | BOLT,CAMSHAFT HOUSING 6X42 |
| 6 | 09206-08001-000 | PIN(8X11) | PIN(8X11) |
| 7 | 11117-73G00-000 | BOLT,CYLINDER HEAD | BOLT,CYLINDER HEAD |
| 8 | 09206-13020-000 | PIN(10.4X13X18) | PIN(10.4X13X18) |
| 9 | 11141-73G22-000 | GASKET,CYL HEAD | GASKET,CYL HEAD |
| 10 | 11170-85K30-000 | カバーアッシ,シリンダヘッド | カバーアッシ,シリンダヘッド |
| 11 | 11189-85K30-000 | VALVE COVER GASKET | VALVE COVER GASKET |
| 12 | 09103-06221-000 | BOLT(6X25) - Bolt, tensioner adjuster | BOLT(6X25) - Bolt, tensioner adjuster |
| 12 | 09103-06250-000 | BOLT(6X25) - Bolt, tensioner adjuster | BOLT(6X25) - Bolt, tensioner adjuster |
| 13 | 01547-0655A-000 | Bolt | Bolt |
| 14 | 16920-83G00-000 | Cap,oil filler | Cap,oil filler |
| 14 | 16920-83G01-000 | CAP OIL FILLER | CAP OIL FILLER |
| 14 | 16920-83G10-000 | Cap comp,oil filler | Cap comp,oil filler |
| 15 | 11197-58J50-000 | シール,ブリーザ | シール,ブリーザ |
| 15 | 11197-58J51-000 | SEAL,BREATHER | SEAL,BREATHER |
| 16 | 09482-00607-000 | PLUG,SPARK(LKR7BI8 NGK) | PLUG,SPARK(LKR7BI8 NGK) |
| 16 | 09482-00608-000 | PLUG,SPARK(IXU22HPR DENSO) | PLUG,SPARK(IXU22HPR DENSO) |
| 17 | 11150-78G71-000 | PIPE,CYLINDER HEAD OIL | PIPE,CYLINDER HEAD OIL |
| 18 | 11157-78G70-000 | O-RING,OIL PIPE | O-RING,OIL PIPE |
| 19 | 16910-58J50-000 | GAUGE,OIL LEVEL | GAUGE,OIL LEVEL |
| # | OEM | HA25S | HE22S |
|---|---|---|---|
| 13 | 01547-0655A-000 | Bolt | Bolt |
| 12 | 09103-06221-000 | BOLT(6X25) - Bolt, tensioner adjuster | BOLT(6X25) - Bolt, tensioner adjuster |
| 12 | 09103-06250-000 | BOLT(6X25) - Bolt, tensioner adjuster | BOLT(6X25) - Bolt, tensioner adjuster |
| 6 | 09206-08001-000 | PIN(8X11) | PIN(8X11) |
| 8 | 09206-13020-000 | PIN(10.4X13X18) | PIN(10.4X13X18) |
| 3 | 09241-20006-000 | PLUG - Plug, crank pin oil | PLUG - Plug, crank pin oil |
| 16 | 09482-00607-000 | PLUG,SPARK(LKR7BI8 NGK) | PLUG,SPARK(LKR7BI8 NGK) |
| 16 | 09482-00608-000 | PLUG,SPARK(IXU22HPR DENSO) | PLUG,SPARK(IXU22HPR DENSO) |
| 1 | 11100-85K32-000 | ヘッドアッシ,シリンダ | ヘッドアッシ,シリンダ |
| 2 | 11115-73G01-001 | GUIDE,VALVE | GUIDE,VALVE |
| 2 | 11117-73G00-000 | BOLT,CYLINDER HEAD | BOLT,CYLINDER HEAD |
| 4 | 11128-69G01-000 | BOLT,CAMSHAFT HOUSING 6X39 | BOLT,CAMSHAFT HOUSING 6X39 |
| 5 | 11128-78G70-000 | BOLT,CAMSHAFT HOUSING 6X42 | BOLT,CAMSHAFT HOUSING 6X42 |
| 9 | 11141-73G22-000 | GASKET,CYL HEAD | GASKET,CYL HEAD |
| 17 | 11150-78G71-000 | PIPE,CYLINDER HEAD OIL | PIPE,CYLINDER HEAD OIL |
| 18 | 11157-78G70-000 | O-RING,OIL PIPE | O-RING,OIL PIPE |
| 10 | 11170-85K30-000 | カバーアッシ,シリンダヘッド | カバーアッシ,シリンダヘッド |
| 11 | 11189-85K30-000 | VALVE COVER GASKET | VALVE COVER GASKET |
| 15 | 11197-58J50-000 | シール,ブリーザ | シール,ブリーザ |
| 15 | 11197-58J51-000 | SEAL,BREATHER | SEAL,BREATHER |
| 19 | 16910-58J50-000 | GAUGE,OIL LEVEL | GAUGE,OIL LEVEL |
| 14 | 16920-83G00-000 | Cap,oil filler | Cap,oil filler |
| 14 | 16920-83G01-000 | CAP OIL FILLER | CAP OIL FILLER |
| 14 | 16920-83G10-000 | Cap comp,oil filler | Cap comp,oil filler |
