Search › Compare › HA25S × HE22S
HA25S
Suzuki ALTO-A-STAR-CELERIO — 12 of 2,076 shared
HE22S
Suzuki LAPIN — 12 of 2,240 shared

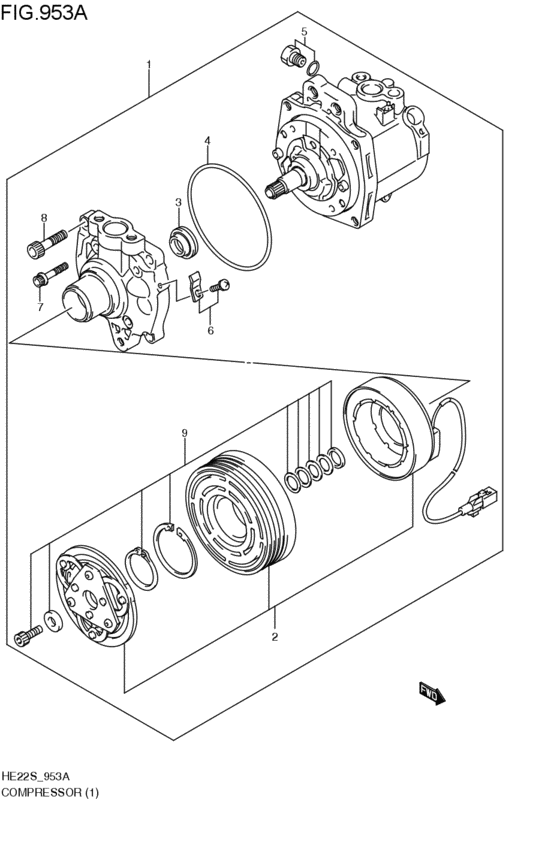

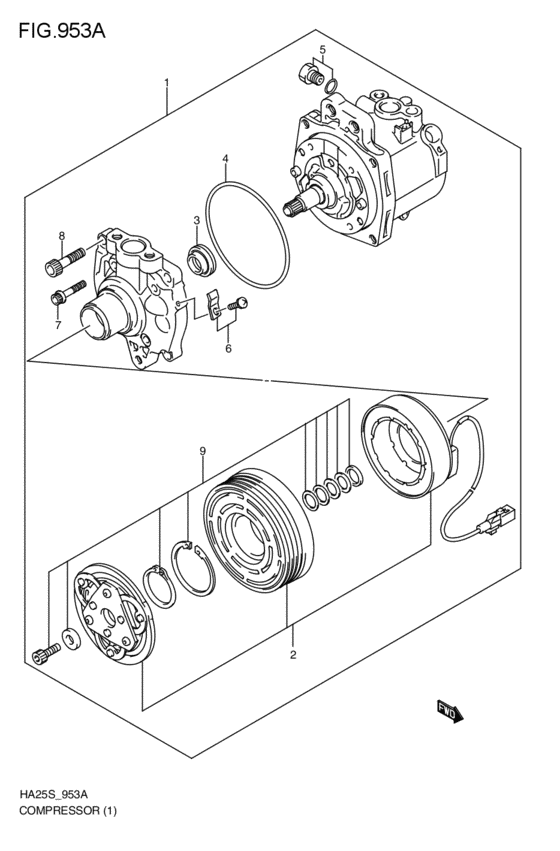

compressor (カルソニツク; 2009-09-01~) 12 / 12
| # | OEM | HA25S | HE22S |
|---|---|---|---|
| 1 | 95200-58J40-000 | コンプレッサアッシ | コンプレッサアッシ |
| 1 | 95200-58J43-000 | COMPRESSOR ASSY | COMPRESSOR ASSY |
| 2 | 95210-58J40-000 | クラッチ,マグネット | クラッチ,マグネット |
| 2 | 95210-58J42-000 | CLUTCH,MAGNET | CLUTCH,MAGNET |
| 3 | 95261-70B00-000 | Seal, lip | Seal, lip |
| 4 | 95262-70B00-000 | O ring | O ring |
| 5 | 95271-72B01-000 | VALVE,RELIEF | VALVE,RELIEF |
| 6 | 95291-70B00-000 | FIXING PLATE | FIXING PLATE |
| 7 | 95296-58J00-000 | Bolt | Bolt |
| 8 | 95297-72B20-000 | Bolt | Bolt |
| 9 | 95298-72B20-000 | Clip kit | Clip kit |
| 9 | 95298-72B21-000 | CLIP KIT | CLIP KIT |
| # | OEM | HA25S | HE22S |
|---|---|---|---|
| 7 | 95200-58J40-000 | コンプレッサアッシ | コンプレッサアッシ |
| 7 | 95200-58J43-000 | COMPRESSOR ASSY | COMPRESSOR ASSY |
| 2 | 95210-58J40-000 | クラッチ,マグネット | クラッチ,マグネット |
| 2 | 95210-58J42-000 | CLUTCH,MAGNET | CLUTCH,MAGNET |
| 3 | 95261-70B00-000 | Seal, lip | Seal, lip |
| 4 | 95262-70B00-000 | O ring | O ring |
| 5 | 95271-72B01-000 | VALVE,RELIEF | VALVE,RELIEF |
| 6 | 95291-70B00-000 | FIXING PLATE | FIXING PLATE |
| 7 | 95296-58J00-000 | Bolt | Bolt |
| 8 | 95297-72B20-000 | Bolt | Bolt |
| 9 | 95298-72B20-000 | Clip kit | Clip kit |
| 9 | 95298-72B21-000 | CLIP KIT | CLIP KIT |
