Search › Compare › HA25S × HE22S
HA25S
Suzuki ALTO-A-STAR-CELERIO — 10 of 2,076 shared
HE22S
Suzuki LAPIN — 10 of 2,240 shared

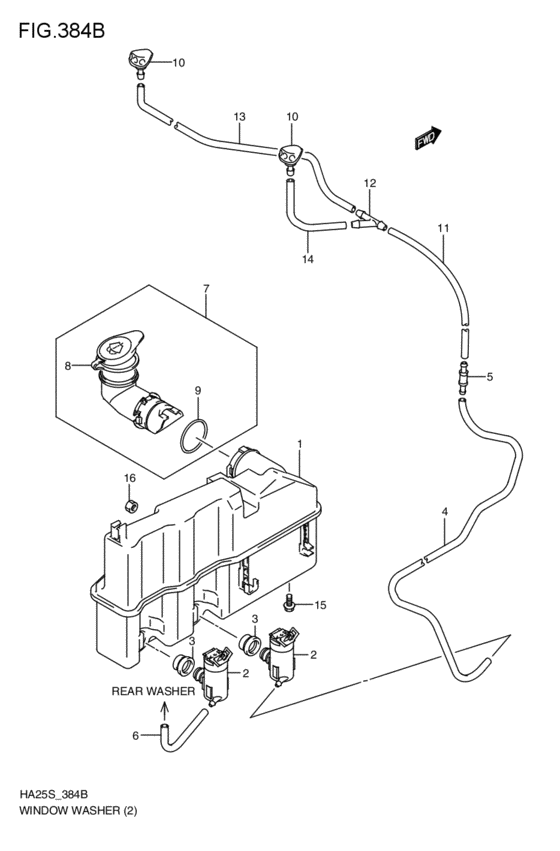

ウインドウオッシャ (4WD; 2009-09-01~) 10 / 13
| # | OEM | HA25S | HE22S |
|---|---|---|---|
| 2 | 38410-66113-000 | PUMP ASSY,WASHER - Pump assy, washer | PUMP ASSY,WASHER - Pump assy, washer |
| 3 | 38453-75000-000 | GROMMET | GROMMET |
| 4 | 38459-50J00-000 | HOSE,WASHER L:810 | HOSE,WASHER L:810 |
| 5 | 38496-56B00-000 | CONNECTOR | CONNECTOR |
| 6 | 38459-72J10-000 | HOSE,RR WASHER | HOSE,RR WASHER |
| 7 | 38402-76G00-000 | PIPE ASSY,WASHER INLET | PIPE ASSY,WASHER INLET |
| 8 | 38452-76G00-000 | CAP,WASHER TANK | CAP,WASHER TANK |
| 9 | 38454-76G00-000 | O-RING,INLET PIPE | O-RING,INLET PIPE |
| 15 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 16 | 08316-1006A-000 | NUT | NUT |
| # | OEM | HA25S | HE22S |
|---|---|---|---|
| 28 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 30 | 08316-1006A-000 | NUT | NUT |
| 7 | 38402-76G00-000 | PIPE ASSY,WASHER INLET | PIPE ASSY,WASHER INLET |
| 2 | 38410-66113-000 | PUMP ASSY,WASHER - Pump assy, washer | PUMP ASSY,WASHER - Pump assy, washer |
| 8 | 38452-76G00-000 | CAP,WASHER TANK | CAP,WASHER TANK |
| 3 | 38453-75000-000 | GROMMET | GROMMET |
| 9 | 38454-76G00-000 | O-RING,INLET PIPE | O-RING,INLET PIPE |
| 4 | 38459-50J00-000 | HOSE,WASHER L:810 | HOSE,WASHER L:810 |
| 6 | 38459-72J10-000 | HOSE,RR WASHER | HOSE,RR WASHER |
| 9 | 38496-56B00-000 | CONNECTOR | CONNECTOR |
