HA12S × HN21S

Shared 45 / Total 3,490 · Jaccard 34%
HA12S Suzuki ALTO-A-STAR-CELERIO — 45 of 2,168 shared
HN21S Suzuki KEI-SWIFT — 45 of 2,508 shared

← Back to categories

45 items

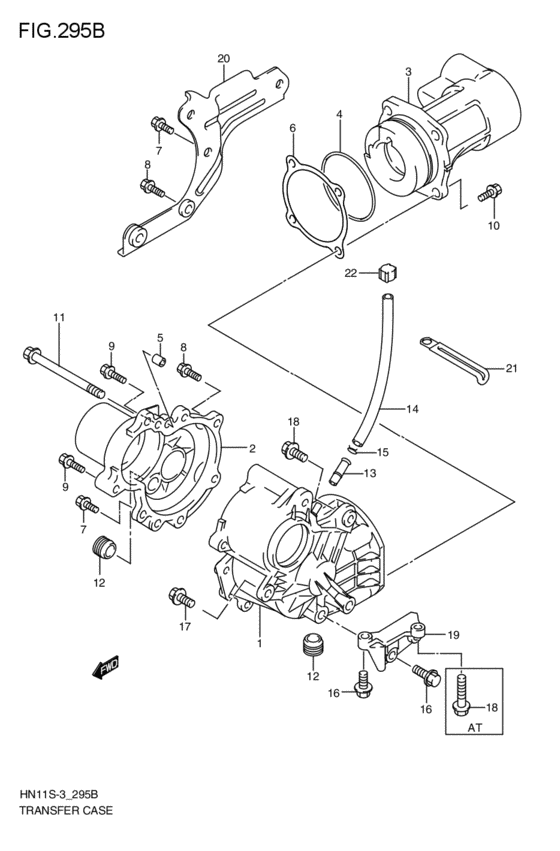

transfer case (4WD:(3AT,4AT); 1999-10-01~2001-01-01) 45 / 45
HA12S transfer case (4WD:(3AT,4AT); 1999-10-01~2001-01-01)
HN21S transfer case (4WD; 2000-10-01~2001-05-01)
# OEM HA12S HN21S
1 29510-75810-000 CASE,T/F,L CASE,T/F,L
2 29521-75F91-000 CASE,T/F,R CASE,T/F,R
3 29271-75F90-000 RETAINER,T/F OUTPUT RETAINER,T/F OUTPUT
4 09280-76008-000 O RING(D:3.1,ID:74) - O ring, rr final housing O RING(D:3.1,ID:74) - O ring, rr final housing
5 04211-09169-000 PIN PIN
6 29261-75F90-030 SHIM,T/F RETAINER T:0.30 SHIM,T/F RETAINER T:0.30
6 29261-75F90-200 SHIM,T/F RETAINER T:2.00 SHIM,T/F RETAINER T:2.00
6 29261-75F90-203 SHIM,T/F RETAINER T:2.03 SHIM,T/F RETAINER T:2.03
6 29261-75F90-206 SHIM,T/F RETAINER T:2.06 SHIM,T/F RETAINER T:2.06
6 29261-75F90-209 SHIM,T/F RETAINER T:2.09 SHIM,T/F RETAINER T:2.09
6 29261-75F90-212 SHIM,T/F RETAINER T:2.12 SHIM,T/F RETAINER T:2.12
6 29261-75F90-215 SHIM,T/F RETAINER T:2.15 SHIM,T/F RETAINER T:2.15
6 29261-75F90-218 SHIM,T/F RETAINER T:2.18 SHIM,T/F RETAINER T:2.18
6 29261-75F90-221 SHIM,T/F RETAINER T:2.21 SHIM,T/F RETAINER T:2.21
6 29261-75F90-224 SHIM,T/F RETAINER T:2.24 SHIM,T/F RETAINER T:2.24
6 29261-75F90-227 SHIM,T/F RETAINER T:2.27 SHIM,T/F RETAINER T:2.27
7 01550-08303-000 Bolt Bolt
7 01550-0830B-000 Bolt Bolt
7 01550-0830A-000 Bolt - Bolt, mount oil seal cover Bolt - Bolt, mount oil seal cover
8 01550-08403-000 Bolt Bolt
8 01550-0840B-000 Bolt Bolt
8 01550-0840A-000 Bolt Bolt
9 01550-08453-000 Bolt,cylinder h Bolt,cylinder h
9 01550-0845B-000 Bolt Bolt
9 01550-0845A-000 Bolt - Bolt, oil pump (s) Bolt - Bolt, oil pump (s)
10 01550-10353-000 Bolt Bolt
10 01550-1035A-000 Bolt - Bolt, fr fork upper Bolt - Bolt, fr fork upper
11 09103-10318-000 BOLT(10X110) - Bolt, lower BOLT(10X110) - Bolt, lower
12 09246-16010-000 PLUG PLUG
12 09246-16021-000 Plug,t/m Oil Drain Plug,t/m Oil Drain
13 09364-08004-000 UNION UNION
14 09352-70113-600 HOSE(7X11X600) HOSE(7X11X600)
14 09352-70119-600 Hose(7X11X600) Hose(7X11X600)
15 09401-11403-000 CLIP CLIP
16 01550-10303-000 Bolt - Bolt, axle housing Bolt - Bolt, axle housing
16 01550-1030B-000 Bolt - Bolt, axle housing rear Bolt - Bolt, axle housing rear
16 01550-1030A-000 Bolt Bolt
18 01550-10603-000 Bolt Bolt
18 01550-1060B-000 Bolt Bolt
18 01550-1060A-000 Bolt Bolt
19 29531-76G10-000 STIFFENER,T/F CASE STIFFENER,T/F CASE
20 29551-78G00-000 Bracket, transfer rear mount Bracket, transfer rear mount
20 29551-78G01-000 BRACKET,T/F RR MOUNT BRACKET,T/F RR MOUNT
21 09404-10417-000 CLAMP(L:97) CLAMP(L:97)
22 27991-65D01-000 PLUG,BREATHER PLUG,BREATHER
