HA12S
Suzuki ALTO-A-STAR-CELERIO — 27 of 2,168 shared
HN21S
Suzuki KEI-SWIFT — 27 of 2,508 shared

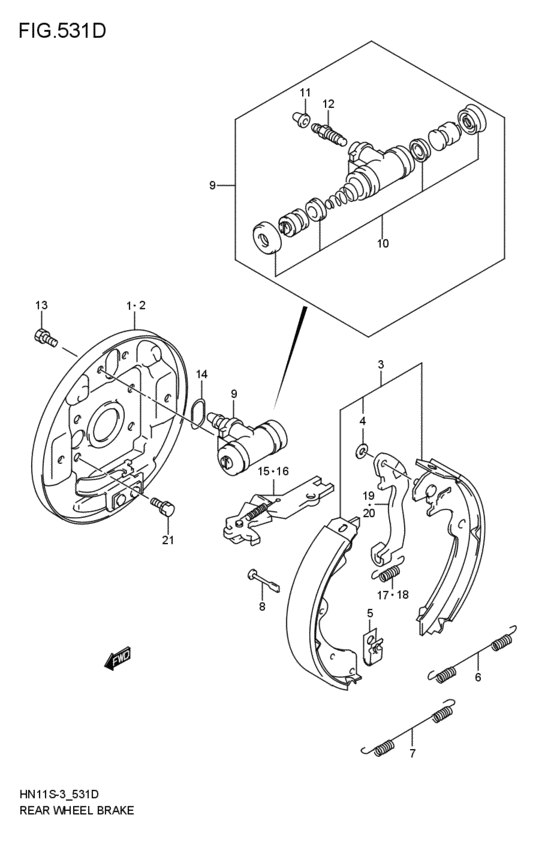

rear wheel brakes (BS,BT,BI,BLG,ADG,BDG,BLE,BSE; 1999-10-01~2001-01-01) 27 / 32
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 1 | 53101-76G01-000 | Plate,rr brake backing,r | Plate,rr brake backing,r |
| 1 | 53101-76G02-000 | PLATE,BRAKE BACKING,R | PLATE,BRAKE BACKING,R |
| 2 | 53102-76G01-000 | Plate,rr brake backing,l | Plate,rr brake backing,l |
| 2 | 53102-76G02-000 | PLATE,BRAKE BACKING,L | PLATE,BRAKE BACKING,L |
| 3 | 53200-76G00-000 | Shoe set, brake | Shoe set, brake |
| 3 | 53200-76G31-000 | SHOE SET,BRAKE | SHOE SET,BRAKE |
| 4 | 09148-06005-000 | Nut seat moldin | Nut seat moldin |
| 4 | 09148-06008-000 | NUT - Nut, adjuster knob | NUT - Nut, adjuster knob |
| 5 | 52243-84010-000 | SPRING,SHOE HOLD DOWN | SPRING,SHOE HOLD DOWN |
| 6 | 53231-76G00-000 | SPRING,SHOE RETURN UPPER | SPRING,SHOE RETURN UPPER |
| 7 | 53232-70G00-000 | SPRING,SHOE RETURN LOWER | SPRING,SHOE RETURN LOWER |
| 8 | 52241-84010-000 | PIN,SHOE HOLD DOWN | PIN,SHOE HOLD DOWN |
| 9 | 53401-76G00-000 | Cylinder assy, rr wheel | Cylinder assy, rr wheel |
| 9 | 53401-76G02-000 | CYLINDER ASSY,REAR WHEEL | CYLINDER ASSY,REAR WHEEL |
| 10 | 53810-76G00-000 | PISTON CUP/BOOT SET | PISTON CUP/BOOT SET |
| 11 | 55156-66310-000 | CAP,BLEEDER PLUG - Cap, bleeder plug | CAP,BLEEDER PLUG - Cap, bleeder plug |
| 12 | 55151-76G00-000 | PLUG,BLEEDER | PLUG,BLEEDER |
| 13 | 01570-06103-000 | Bolt | Bolt |
| 13 | 01570-0610A-000 | Bolt | Bolt |
| 14 | 53446-50A10-000 | SEAT,REAR WHEEL CYLINDER | SEAT,REAR WHEEL CYLINDER |
| 15 | 53701-76G00-000 | STRUT ASSY,PARKING SHOE,R | STRUT ASSY,PARKING SHOE,R |
| 16 | 53702-76G00-000 | STRUT ASSY,PARKING SHOE,L | STRUT ASSY,PARKING SHOE,L |
| 17 | 53715-76G00-000 | SPRING,STRUT SHOE RETURN,R | SPRING,STRUT SHOE RETURN,R |
| 18 | 53716-76G00-000 | SPRING,STRUT SHOE RETURN,L | SPRING,STRUT SHOE RETURN,L |
| 19 | 53751-76G00-000 | LEVER,OPERATING,R | LEVER,OPERATING,R |
| 20 | 53761-76G00-000 | LEVER,OPERATING,L | LEVER,OPERATING,L |
| 21 | 09117-08070-000 | BOLT(8X19) | BOLT(8X19) |
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 13 | 01570-06103-000 | Bolt | Bolt |
| 13 | 01570-0610A-000 | Bolt | Bolt |
| 21 | 09117-08070-000 | BOLT(8X19) | BOLT(8X19) |
| 4 | 09148-06005-000 | Nut seat moldin | Nut seat moldin |
| 4 | 09148-06008-000 | NUT - Nut, adjuster knob | NUT - Nut, adjuster knob |
| 8 | 52241-84010-000 | PIN,SHOE HOLD DOWN | PIN,SHOE HOLD DOWN |
| 5 | 52243-84010-000 | SPRING,SHOE HOLD DOWN | SPRING,SHOE HOLD DOWN |
| 1 | 53101-76G01-000 | Plate,rr brake backing,r | Plate,rr brake backing,r |
| 1 | 53101-76G02-000 | PLATE,BRAKE BACKING,R | PLATE,BRAKE BACKING,R |
| 2 | 53102-76G01-000 | Plate,rr brake backing,l | Plate,rr brake backing,l |
| 2 | 53102-76G02-000 | PLATE,BRAKE BACKING,L | PLATE,BRAKE BACKING,L |
| 3 | 53200-76G00-000 | Shoe set, brake | Shoe set, brake |
| 3 | 53200-76G31-000 | SHOE SET,BRAKE | SHOE SET,BRAKE |
| 6 | 53231-76G00-000 | SPRING,SHOE RETURN UPPER | SPRING,SHOE RETURN UPPER |
| 7 | 53232-70G00-000 | SPRING,SHOE RETURN LOWER | SPRING,SHOE RETURN LOWER |
| 9 | 53401-76G00-000 | Cylinder assy, rr wheel | Cylinder assy, rr wheel |
| 9 | 53401-76G02-000 | CYLINDER ASSY,REAR WHEEL | CYLINDER ASSY,REAR WHEEL |
| 14 | 53446-50A10-000 | SEAT,REAR WHEEL CYLINDER | SEAT,REAR WHEEL CYLINDER |
| 15 | 53701-76G00-000 | STRUT ASSY,PARKING SHOE,R | STRUT ASSY,PARKING SHOE,R |
| 16 | 53702-76G00-000 | STRUT ASSY,PARKING SHOE,L | STRUT ASSY,PARKING SHOE,L |
| 17 | 53715-76G00-000 | SPRING,STRUT SHOE RETURN,R | SPRING,STRUT SHOE RETURN,R |
| 18 | 53716-76G00-000 | SPRING,STRUT SHOE RETURN,L | SPRING,STRUT SHOE RETURN,L |
| 19 | 53751-76G00-000 | LEVER,OPERATING,R | LEVER,OPERATING,R |
| 20 | 53761-76G00-000 | LEVER,OPERATING,L | LEVER,OPERATING,L |
| 10 | 53810-76G00-000 | PISTON CUP/BOOT SET | PISTON CUP/BOOT SET |
| 12 | 55151-76G00-000 | PLUG,BLEEDER | PLUG,BLEEDER |
| 8 | 55156-66310-000 | CAP,BLEEDER PLUG - Cap, bleeder plug | CAP,BLEEDER PLUG - Cap, bleeder plug |
