Search › Compare › HA12S × HN21S
HA12S
Suzuki ALTO-A-STAR-CELERIO — 22 of 2,168 shared
HN21S
Suzuki KEI-SWIFT — 22 of 2,508 shared

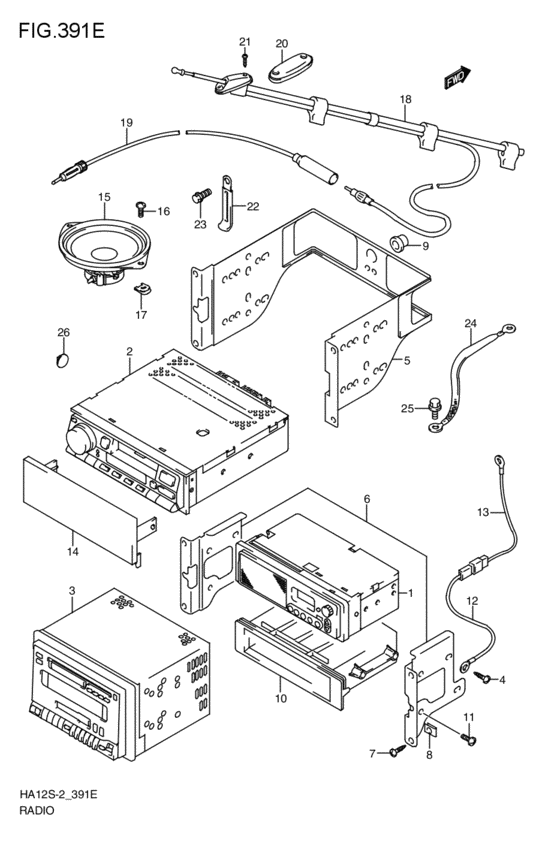

radio (1999-10-01~2001-01-01) 22 / 29
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 5 | 02142-05083-000 | Screw | Screw |
| 5 | 02142-0508A-000 | SCREW - Screw, cap | SCREW - Screw, cap |
| 7 | 03541-05163-000 | Screw | Screw |
| 7 | 03541-0516A-000 | SCREW | SCREW |
| 8 | 09148-05045-000 | NUT | NUT |
| 9 | 34955-60E00-000 | BUSH | BUSH |
| 10 | 39182-70E50-000 | POCKETTUNER | POCKETTUNER |
| 10 | 39182-70E51-000 | POCKET,TUNER | POCKET,TUNER |
| 11 | 03242-05123-000 | Screw, inner cover | Screw, inner cover |
| 11 | 03241-0512A-000 | SCREW | SCREW |
| 12 | 39191-50F00-000 | WIRE,TUNER GND | WIRE,TUNER GND |
| 13 | 39192-76G10-000 | WIRE,TUNER GND NO.2 | WIRE,TUNER GND NO.2 |
| 16 | 03541-05123-000 | Screw | Screw |
| 16 | 03541-0512B-000 | SCREW | SCREW |
| 19 | 39271-76F00-000 | FEEDER,ANT L 460 | FEEDER,ANT L 460 |
| 21 | 39251-60D01-000 | Screw | Screw |
| 21 | 09129-04003-000 | SCREW(4X12) | SCREW(4X12) |
| 21 | 09125-04033-000 | スクリュ,4X16 | スクリュ,4X16 |
| 22 | 09404-06432-000 | CLAMP(L:65) - Clamp (l:80) | CLAMP(L:65) - Clamp (l:80) |
| 22 | 09404-06039-000 | Clamp(L:65) | Clamp(L:65) |
| 25 | 09115-06001-000 | Bolt, lh - Bolt (6x16) | Bolt, lh - Bolt (6x16) |
| 25 | 09115-06005-000 | BOLT(6X16) | BOLT(6X16) |
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 5 | 02142-05083-000 | Screw | Screw |
| 5 | 02142-0508A-000 | SCREW - Screw, cap | SCREW - Screw, cap |
| 11 | 03241-0512A-000 | SCREW | SCREW |
| 11 | 03242-05123-000 | Screw, inner cover | Screw, inner cover |
| 6 | 03541-05123-000 | Screw | Screw |
| 6 | 03541-0512B-000 | SCREW | SCREW |
| 23 | 03541-05163-000 | Screw | Screw |
| 23 | 03541-0516A-000 | SCREW | SCREW |
| 4 | 09115-06001-000 | Bolt, lh - Bolt (6x16) | Bolt, lh - Bolt (6x16) |
| 4 | 09115-06005-000 | BOLT(6X16) | BOLT(6X16) |
| 21 | 09125-04033-000 | スクリュ,4X16 | スクリュ,4X16 |
| 21 | 09129-04003-000 | SCREW(4X12) | SCREW(4X12) |
| 16 | 09148-05045-000 | NUT | NUT |
| 22 | 09404-06039-000 | Clamp(L:65) | Clamp(L:65) |
| 22 | 09404-06432-000 | CLAMP(L:65) - Clamp (l:80) | CLAMP(L:65) - Clamp (l:80) |
| 9 | 34955-60E00-000 | BUSH | BUSH |
| 10 | 39182-70E50-000 | POCKETTUNER | POCKETTUNER |
| 10 | 39182-70E51-000 | POCKET,TUNER | POCKET,TUNER |
| 12 | 39191-50F00-000 | WIRE,TUNER GND | WIRE,TUNER GND |
| 13 | 39192-76G10-000 | WIRE,TUNER GND NO.2 | WIRE,TUNER GND NO.2 |
| 21 | 39251-60D01-000 | Screw | Screw |
| 19 | 39271-76F00-000 | FEEDER,ANT L 460 | FEEDER,ANT L 460 |
