Search › Compare › HA12S × HN21S
HA12S
Suzuki ALTO-A-STAR-CELERIO — 34 of 2,168 shared
HN21S
Suzuki KEI-SWIFT — 34 of 2,508 shared

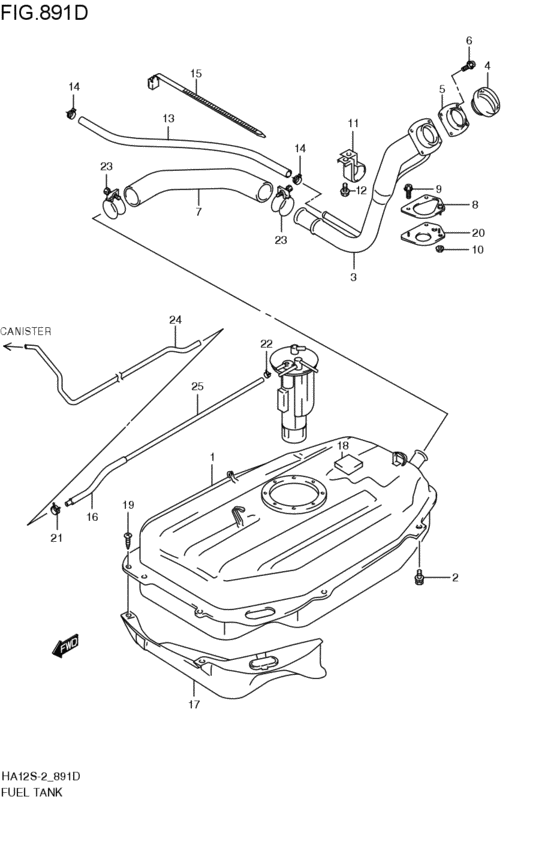

fuel tank (1999-10-01~2001-01-01) 34 / 37
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 1 | 89101-76G10-000 | Tank assy, fuel | Tank assy, fuel |
| 1 | 89101-76G12-000 | TANK ASSY,FUEL | TANK ASSY,FUEL |
| 3 | 89210-76G02-000 | NECK,FUEL FILLER | NECK,FUEL FILLER |
| 4 | 89260-70G01-000 | Cap assy, fuel filler | Cap assy, fuel filler |
| 4 | 89260-73H00-000 | CAP ASSY,FUEL FILLER | CAP ASSY,FUEL FILLER |
| 5 | 89285-75F00-000 | PACKING,FUEL FILLER | PACKING,FUEL FILLER |
| 6 | 02162-05123-000 | Screw | Screw |
| 6 | 02162-0512A-000 | SCREW | SCREW |
| 7 | 89241-75F00-000 | HOSE,FUEL TANK FILLER | HOSE,FUEL TANK FILLER |
| 8 | 89291-75F00-000 | BRACKET,FUEL FILLER | BRACKET,FUEL FILLER |
| 9 | 02162-06163-000 | Screw - Bolt | Screw - Bolt |
| 9 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 10 | 08316-10063-000 | Nut | Nut |
| 10 | 08316-1006B-000 | NUT | NUT |
| 11 | 89280-75F00-000 | Clamp, fuel filler neck | Clamp, fuel filler neck |
| 11 | 89280-75F0V-000 | CLAMP,FUEL FILLER NECK | CLAMP,FUEL FILLER NECK |
| 12 | 09118-06106-000 | BOLT(6X16) | BOLT(6X16) |
| 13 | 09355-11165-00B | HOSE(11X16X2000) | HOSE(11X16X2000) |
| 14 | 09401-14404-000 | CLIP | CLIP |
| 15 | 09407-19401-000 | CLAMP(L:190) | CLAMP(L:190) |
| 16 | 89489-63B00-000 | PROTECTOR,VALVE OUTLET HOSE | PROTECTOR,VALVE OUTLET HOSE |
| 17 | 89191-76G00-000 | Cover, fuel tank lower | Cover, fuel tank lower |
| 17 | 89191-76G01-000 | COVER,FUEL TANK,LOWER | COVER,FUEL TANK,LOWER |
| 18 | 89521-60B01-000 | PAD,FUEL TANK | PAD,FUEL TANK |
| 19 | 03542-06163-000 | Screw | Screw |
| 19 | 03541-0616A-000 | SCREW | SCREW |
| 20 | 89282-75F00-000 | Seal, fuel filler neck | Seal, fuel filler neck |
| 20 | 89282-75F10-000 | SEAL,FUEL FILLER NECK | SEAL,FUEL FILLER NECK |
| 21 | 09401-11413-000 | CLIP | CLIP |
| 22 | 09401-12404-000 | CLIP | CLIP |
| 23 | 09400-45311-000 | CLAMP | CLAMP |
| 24 | 89483-76G10-000 | パイプ,フューエルエバポレータ | パイプ,フューエルエバポレータ |
| 24 | 89483-76G11-000 | PIPE,FUEL EVAP | PIPE,FUEL EVAP |
| 25 | 09359-54112-760 | HOSE(5.4X11.4X760) - Hose, fuel (pump to carb) (5.4x11.4x760) | HOSE(5.4X11.4X760) - Hose, fuel (pump to carb) (5.4x11.4x760) |
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 6 | 02162-05123-000 | Screw | Screw |
| 6 | 02162-0512A-000 | SCREW | SCREW |
| 18 | 02162-06163-000 | Screw - Bolt | Screw - Bolt |
| 18 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 19 | 03541-0616A-000 | SCREW | SCREW |
| 19 | 03542-06163-000 | Screw | Screw |
| 12 | 08316-10063-000 | Nut | Nut |
| 12 | 08316-1006B-000 | NUT | NUT |
| 23 | 09118-06106-000 | BOLT(6X16) | BOLT(6X16) |
| 13 | 09355-11165-00B | HOSE(11X16X2000) | HOSE(11X16X2000) |
| 25 | 09359-54112-760 | HOSE(5.4X11.4X760) - Hose, fuel (pump to carb) (5.4x11.4x760) | HOSE(5.4X11.4X760) - Hose, fuel (pump to carb) (5.4x11.4x760) |
| 23 | 09400-45311-000 | CLAMP | CLAMP |
| 21 | 09401-11413-000 | CLIP | CLIP |
| 22 | 09401-12404-000 | CLIP | CLIP |
| 14 | 09401-14404-000 | CLIP | CLIP |
| 15 | 09407-19401-000 | CLAMP(L:190) | CLAMP(L:190) |
| 1 | 89101-76G10-000 | Tank assy, fuel | Tank assy, fuel |
| 1 | 89101-76G12-000 | TANK ASSY,FUEL | TANK ASSY,FUEL |
| 17 | 89191-76G00-000 | Cover, fuel tank lower | Cover, fuel tank lower |
| 17 | 89191-76G01-000 | COVER,FUEL TANK,LOWER | COVER,FUEL TANK,LOWER |
| 3 | 89210-76G02-000 | NECK,FUEL FILLER | NECK,FUEL FILLER |
| 7 | 89241-75F00-000 | HOSE,FUEL TANK FILLER | HOSE,FUEL TANK FILLER |
| 4 | 89260-70G01-000 | Cap assy, fuel filler | Cap assy, fuel filler |
| 4 | 89260-73H00-000 | CAP ASSY,FUEL FILLER | CAP ASSY,FUEL FILLER |
| 11 | 89280-75F00-000 | Clamp, fuel filler neck | Clamp, fuel filler neck |
| 11 | 89280-75F0V-000 | CLAMP,FUEL FILLER NECK | CLAMP,FUEL FILLER NECK |
| 20 | 89282-75F00-000 | Seal, fuel filler neck | Seal, fuel filler neck |
| 20 | 89282-75F10-000 | SEAL,FUEL FILLER NECK | SEAL,FUEL FILLER NECK |
| 5 | 89285-75F00-000 | PACKING,FUEL FILLER | PACKING,FUEL FILLER |
| 8 | 89291-75F00-000 | BRACKET,FUEL FILLER | BRACKET,FUEL FILLER |
| 24 | 89483-76G10-000 | パイプ,フューエルエバポレータ | パイプ,フューエルエバポレータ |
| 24 | 89483-76G11-000 | PIPE,FUEL EVAP | PIPE,FUEL EVAP |
| 16 | 89489-63B00-000 | PROTECTOR,VALVE OUTLET HOSE | PROTECTOR,VALVE OUTLET HOSE |
| 18 | 89521-60B01-000 | PAD,FUEL TANK | PAD,FUEL TANK |
