Search › Compare › HA12S × HN21S
HA12S
Suzuki ALTO-A-STAR-CELERIO — 15 of 2,168 shared
HN21S
Suzuki KEI-SWIFT — 15 of 2,508 shared

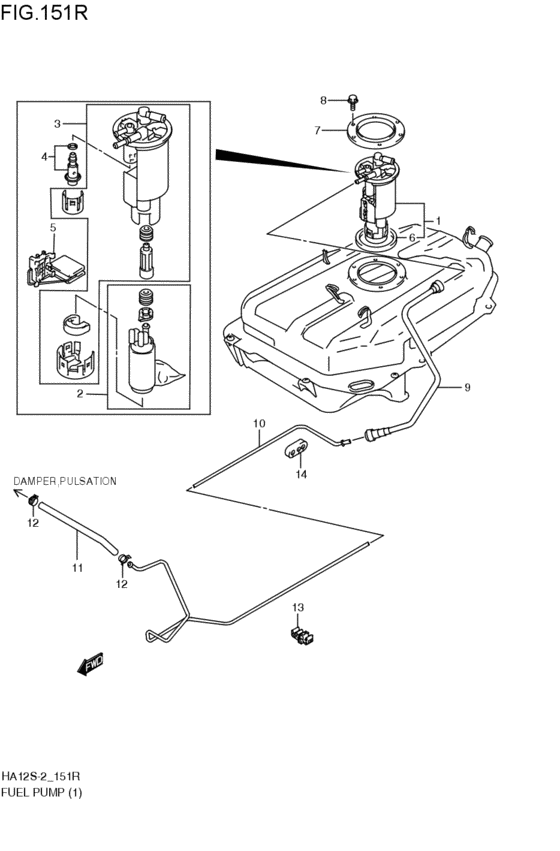

Fuel Pump (F6A:EPI; 1999-10-01~2001-01-01) 15 / 26
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 1 | 15121-75F01-000 | PLATE,FUEL PUMP | PLATE,FUEL PUMP |
| 6 | 15111-75F00-000 | Gasket | Gasket |
| 6 | 15111-75F01-000 | GASKET,FUEL PUMP | GASKET,FUEL PUMP |
| 7 | 15121-75F00-000 | Plate | Plate |
| 8 | 02162-06103-000 | Bolt - Bolt, bracket | Bolt - Bolt, bracket |
| 8 | 02162-0610A-000 | SCREW | SCREW |
| 9 | 15812-76G01-000 | Pipe, fuel (pump to pipe) | Pipe, fuel (pump to pipe) |
| 9 | 15812-76G03-000 | PIPE,FUEL PUMP TO PIPE | PIPE,FUEL PUMP TO PIPE |
| 10 | 15811-76G10-000 | パイプ,フューエル | パイプ,フューエル |
| 10 | 15811-76G11-000 | PIPE,FUEL | PIPE,FUEL |
| 12 | 09401-11418-000 | Clip | Clip |
| 12 | 09401-11420-000 | CLIP | CLIP |
| 13 | 15893-83G00-000 | クランプ,フューエルパイプ | クランプ,フューエルパイプ |
| 13 | 15893-83G01-000 | CLAMP,FUEL PIPE | CLAMP,FUEL PIPE |
| 14 | 15438-76G00-000 | CUSHION,FUEL PIPE | CUSHION,FUEL PIPE |
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 9 | 02162-06103-000 | Bolt - Bolt, bracket | Bolt - Bolt, bracket |
| 9 | 02162-0610A-000 | SCREW | SCREW |
| 12 | 09401-11418-000 | Clip | Clip |
| 12 | 09401-11420-000 | CLIP | CLIP |
| 6 | 15111-75F00-000 | Gasket | Gasket |
| 6 | 15111-75F01-000 | GASKET,FUEL PUMP | GASKET,FUEL PUMP |
| 7 | 15121-75F00-000 | Plate | Plate |
| 1 | 15121-75F01-000 | PLATE,FUEL PUMP | PLATE,FUEL PUMP |
| 14 | 15438-76G00-000 | CUSHION,FUEL PIPE | CUSHION,FUEL PIPE |
| 10 | 15811-76G10-000 | パイプ,フューエル | パイプ,フューエル |
| 10 | 15811-76G11-000 | PIPE,FUEL | PIPE,FUEL |
| 9 | 15812-76G01-000 | Pipe, fuel (pump to pipe) | Pipe, fuel (pump to pipe) |
| 9 | 15812-76G03-000 | PIPE,FUEL PUMP TO PIPE | PIPE,FUEL PUMP TO PIPE |
| 13 | 15893-83G00-000 | クランプ,フューエルパイプ | クランプ,フューエルパイプ |
| 13 | 15893-83G01-000 | CLAMP,FUEL PIPE | CLAMP,FUEL PIPE |
