Search › Compare › HA12S × HN21S
HA12S
Suzuki ALTO-A-STAR-CELERIO — 21 of 2,168 shared
HN21S
Suzuki KEI-SWIFT — 21 of 2,508 shared

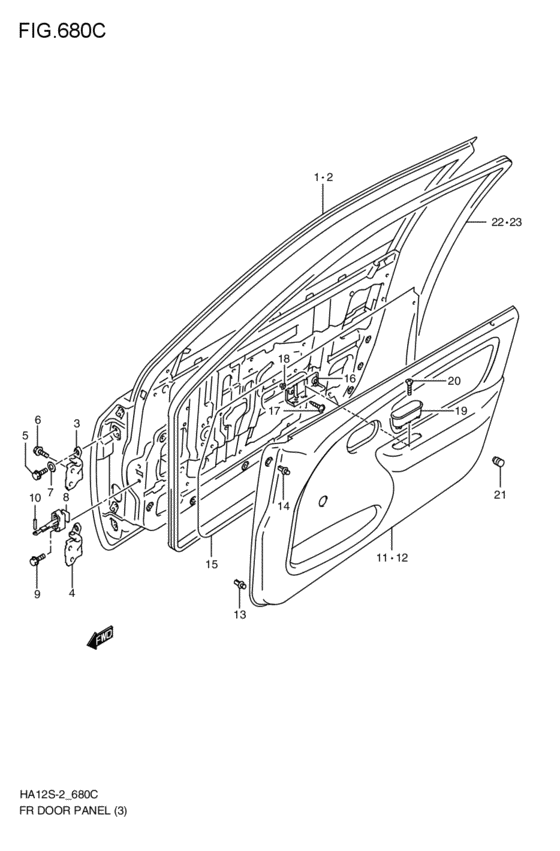

front door panel (5DR:(BC,BL,BD,BM,BX,BT,BLG,BDG,BLE); 1999-10-01~2001-01-01) 21 / 29
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 3 | 69310-60G01-000 | HINGE,FR DR NO.1 | HINGE,FR DR NO.1 |
| 3 | 69320-60G01-000 | HINGE,FR DR NO.2 | HINGE,FR DR NO.2 |
| 5 | 69491-65D00-000 | Bolt | Bolt |
| 5 | 09103-08389-000 | BOLT(8X24) | BOLT(8X24) |
| 6 | 01551-08203-000 | Bolt | Bolt |
| 6 | 01551-0820A-000 | Bolt | Bolt |
| 7 | 69480-65D00-000 | Washer | Washer |
| 8 | 81810-65D00-000 | STOP,FRONT DOOR OPEN | STOP,FRONT DOOR OPEN |
| 9 | 09122-86004-000 | SCREW(6X20) | SCREW(6X20) |
| 10 | 81831-70B00-000 | PIN,DOOR OPEN STOPPER BODY | PIN,DOOR OPEN STOPPER BODY |
| 13 | 09409-08320-000 | CLIP | CLIP |
| 15 | 83911-60X51-000 | Cover, door sealing (600x1200) | Cover, door sealing (600x1200) |
| 15 | 83911-60X52-000 | COVER,DR SEALING | COVER,DR SEALING |
| 16 | 83751-70G50-000 | Bracket, door trim | Bracket, door trim |
| 16 | 83751-70G5V-000 | BRACKET,DR TRIM | BRACKET,DR TRIM |
| 17 | 03241-06123-000 | Screw | Screw |
| 17 | 03241-0612A-000 | SCREW | SCREW |
| 18 | 09148-06007-000 | NUT | NUT |
| 20 | 03211-05123-000 | Screw | Screw |
| 20 | 03211-0512A-000 | SCREW | SCREW |
| 21 | 82711-56B00-000 | STOPPER,FR DOOR - Stopper, fr dr lower | STOPPER,FR DOOR - Stopper, fr dr lower |
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 6 | 01551-08203-000 | Bolt | Bolt |
| 6 | 01551-0820A-000 | Bolt | Bolt |
| 20 | 03211-05123-000 | Screw | Screw |
| 20 | 03211-0512A-000 | SCREW | SCREW |
| 17 | 03241-06123-000 | Screw | Screw |
| 17 | 03241-0612A-000 | SCREW | SCREW |
| 5 | 09103-08389-000 | BOLT(8X24) | BOLT(8X24) |
| 9 | 09122-86004-000 | SCREW(6X20) | SCREW(6X20) |
| 18 | 09148-06007-000 | NUT | NUT |
| 13 | 09409-08320-000 | CLIP | CLIP |
| 3 | 69310-60G01-000 | HINGE,FR DR NO.1 | HINGE,FR DR NO.1 |
| 3 | 69320-60G01-000 | HINGE,FR DR NO.2 | HINGE,FR DR NO.2 |
| 7 | 69480-65D00-000 | Washer | Washer |
| 5 | 69491-65D00-000 | Bolt | Bolt |
| 8 | 81810-65D00-000 | STOP,FRONT DOOR OPEN | STOP,FRONT DOOR OPEN |
| 10 | 81831-70B00-000 | PIN,DOOR OPEN STOPPER BODY | PIN,DOOR OPEN STOPPER BODY |
| 21 | 82711-56B00-000 | STOPPER,FR DOOR - Stopper, fr dr lower | STOPPER,FR DOOR - Stopper, fr dr lower |
| 16 | 83751-70G50-000 | Bracket, door trim | Bracket, door trim |
| 16 | 83751-70G5V-000 | BRACKET,DR TRIM | BRACKET,DR TRIM |
| 15 | 83911-60X51-000 | Cover, door sealing (600x1200) | Cover, door sealing (600x1200) |
| 15 | 83911-60X52-000 | COVER,DR SEALING | COVER,DR SEALING |
