Search › Compare › HA12S × HN21S
HA12S
Suzuki ALTO-A-STAR-CELERIO — 34 of 2,168 shared
HN21S
Suzuki KEI-SWIFT — 34 of 2,508 shared

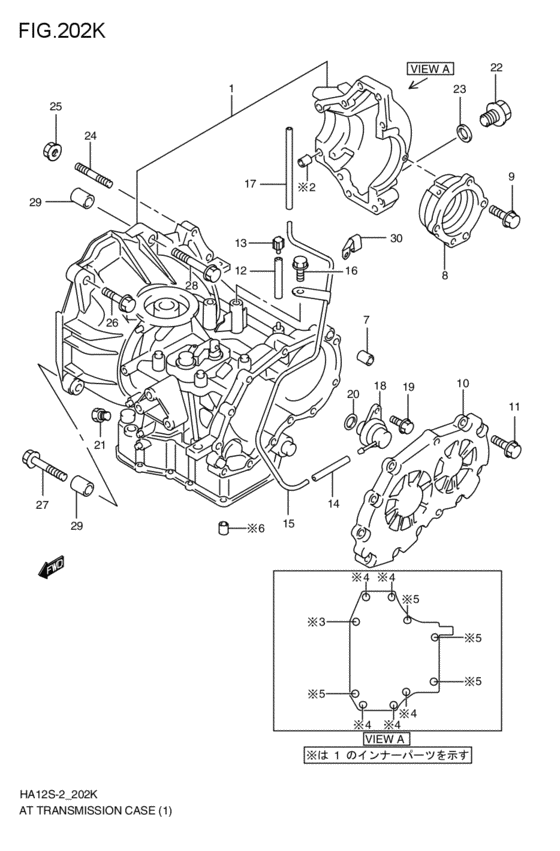

at - transmission case (3AT; 1999-10-01~2001-01-01) 34 / 52
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 2 | 04211-13149-000 | PIN | PIN |
| 5 | 01550-10503-000 | Bolt - Bolt, rh | Bolt - Bolt, rh |
| 5 | 01550-1050B-000 | Bolt | Bolt |
| 11 | 01550-08253-000 | Bolt, rear | Bolt, rear |
| 11 | 01550-0825B-000 | Bolt | Bolt |
| 11 | 01550-0825A-000 | Bolt | Bolt |
| 12 | 09352-50823-600 | HOSE(5X8.2X600) - Hose, evapotation (5.0x8.2x600) | HOSE(5X8.2X600) - Hose, evapotation (5.0x8.2x600) |
| 12 | 44420-44AR0-000 | HOSE SET,FUEL | HOSE SET,FUEL |
| 12 | 09352-50005-600 | Hose(5X8.2X600) | Hose(5X8.2X600) |
| 13 | 27991-78G10-000 | PLUG,BREATHER HOSE | PLUG,BREATHER HOSE |
| 14 | 09355-35754-601 | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) |
| 14 | 09355-35006-601 | Hose(3.5X7.5X601) | Hose(3.5X7.5X601) |
| 16 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 16 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 16 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 20 | 09280-16005-000 | O RING(D:2.4,ID:15.8) - O ring, exhaust pipe | O RING(D:2.4,ID:15.8) - O ring, exhaust pipe |
| 21 | 24822-58E00-000 | PLUG,BOOSTER | PLUG,BOOSTER |
| 21 | 24822-58E01-000 | Plug,booster | Plug,booster |
| 22 | 09247-14027-000 | PLUG(14X11.5) - Plug, oil drain | PLUG(14X11.5) - Plug, oil drain |
| 22 | 09247-14044-000 | DRAIN PLUG (M14x1.5) | DRAIN PLUG (M14x1.5) |
| 23 | 24824-71B71-000 | GASKET,18X24X2 | GASKET,18X24X2 |
| 24 | 01421-10353-000 | Stud 10x1.25x55 - Stud bolt | Stud 10x1.25x55 - Stud bolt |
| 24 | 01421-1035A-000 | BOLT,STUD | BOLT,STUD |
| 24 | 01421-1035B-000 | BOLT,STUD | BOLT,STUD |
| 25 | 08316-10103-000 | Nut | Nut |
| 25 | 08316-1010B-000 | NUT | NUT |
| 26 | 01550-10453-000 | Bolt | Bolt |
| 26 | 01550-1045B-000 | Bolt | Bolt |
| 27 | 01550-10553-000 | Bolt - Bolt, front | Bolt - Bolt, front |
| 27 | 01550-1055B-000 | Bolt | Bolt |
| 28 | 01550-10603-000 | Bolt | Bolt |
| 28 | 01550-1060B-000 | Bolt | Bolt |
| 28 | 01550-1060A-000 | Bolt | Bolt |
| 30 | 26585-71B70-000 | CLIP,HARN,NO.3 | CLIP,HARN,NO.3 |
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 24 | 01421-10353-000 | Stud 10x1.25x55 - Stud bolt | Stud 10x1.25x55 - Stud bolt |
| 24 | 01421-1035A-000 | BOLT,STUD | BOLT,STUD |
| 24 | 01421-1035B-000 | BOLT,STUD | BOLT,STUD |
| 11 | 01550-08253-000 | Bolt, rear | Bolt, rear |
| 11 | 01550-0825A-000 | Bolt | Bolt |
| 11 | 01550-0825B-000 | Bolt | Bolt |
| 26 | 01550-10453-000 | Bolt | Bolt |
| 26 | 01550-1045B-000 | Bolt | Bolt |
| 5 | 01550-10503-000 | Bolt - Bolt, rh | Bolt - Bolt, rh |
| 5 | 01550-1050B-000 | Bolt | Bolt |
| 27 | 01550-10553-000 | Bolt - Bolt, front | Bolt - Bolt, front |
| 27 | 01550-1055B-000 | Bolt | Bolt |
| 28 | 01550-10603-000 | Bolt | Bolt |
| 28 | 01550-1060A-000 | Bolt | Bolt |
| 28 | 01550-1060B-000 | Bolt | Bolt |
| 7 | 02162-06123-000 | Bolt (6x12) | Bolt (6x12) |
| 7 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 7 | 02162-0612B-000 | SCREW - Bolt | SCREW - Bolt |
| 2 | 04211-13149-000 | PIN | PIN |
| 25 | 08316-10103-000 | Nut | Nut |
| 25 | 08316-1010B-000 | NUT | NUT |
| 22 | 09247-14027-000 | PLUG(14X11.5) - Plug, oil drain | PLUG(14X11.5) - Plug, oil drain |
| 22 | 09247-14044-000 | DRAIN PLUG (M14x1.5) | DRAIN PLUG (M14x1.5) |
| 20 | 09280-16005-000 | O RING(D:2.4,ID:15.8) - O ring, exhaust pipe | O RING(D:2.4,ID:15.8) - O ring, exhaust pipe |
| 12 | 09352-50005-600 | Hose(5X8.2X600) | Hose(5X8.2X600) |
| 12 | 09352-50823-600 | HOSE(5X8.2X600) - Hose, evapotation (5.0x8.2x600) | HOSE(5X8.2X600) - Hose, evapotation (5.0x8.2x600) |
| 14 | 09355-35006-601 | Hose(3.5X7.5X601) | Hose(3.5X7.5X601) |
| 14 | 09355-35754-601 | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) | HOSE(3.5X7.5X601) - Hose, vacuum (inmf to check valve) |
| 21 | 24822-58E00-000 | PLUG,BOOSTER | PLUG,BOOSTER |
| 21 | 24822-58E01-000 | Plug,booster | Plug,booster |
| 23 | 24824-71B71-000 | GASKET,18X24X2 | GASKET,18X24X2 |
| 7 | 26585-71B70-000 | CLIP,HARN,NO.3 | CLIP,HARN,NO.3 |
| 13 | 27991-78G10-000 | PLUG,BREATHER HOSE | PLUG,BREATHER HOSE |
| 12 | 44420-44AR0-000 | HOSE SET,FUEL | HOSE SET,FUEL |
