Search › Compare › HA12S × HN21S
HA12S
Suzuki ALTO-A-STAR-CELERIO — 35 of 2,168 shared
HN21S
Suzuki KEI-SWIFT — 35 of 2,508 shared

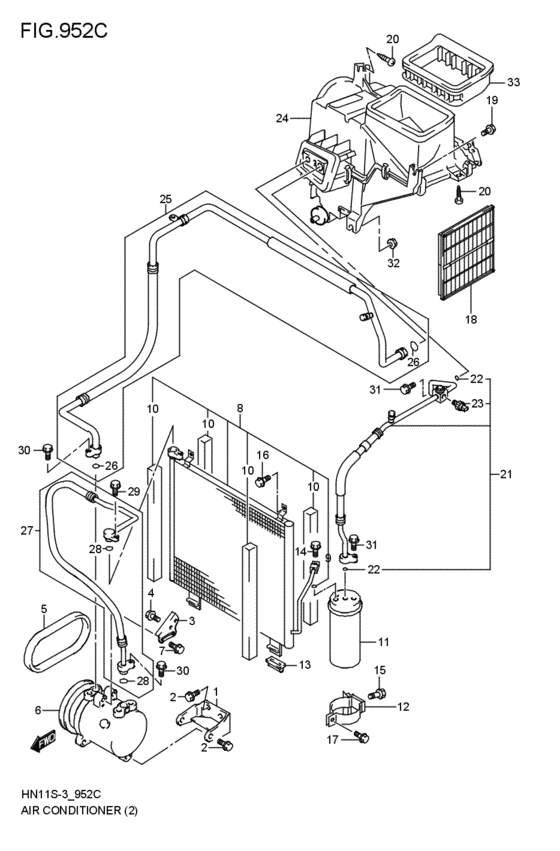

air-conditioner (4AT,3AT,CVT; 1999-10-01~2001-01-01) 35 / 44
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 3 | 01550-08203-000 | Bolt | Bolt |
| 3 | 01550-0820B-000 | Bolt | Bolt |
| 3 | 01550-0820A-000 | Bolt - Bolt, funnel bracket | Bolt - Bolt, funnel bracket |
| 6 | 95120-73G01-000 | Stay, compressor adjust | Stay, compressor adjust |
| 6 | 95120-73G10-000 | STAY,COMPRESSOR ADJUST | STAY,COMPRESSOR ADJUST |
| 9 | 95200-76G01-000 | コンプレッサアッシ | コンプレッサアッシ |
| 9 | 95200-76G03-000 | COMPRESSOR ASSY | COMPRESSOR ASSY |
| 9 | 95200-77G00-000 | Compressor assy (seiko) | Compressor assy (seiko) |
| 9 | 95200-77G02-000 | COMPRESSOR ASSY | COMPRESSOR ASSY |
| 11 | 95310-76G20-000 | コンデンサアッシ | コンデンサアッシ |
| 11 | 95310-76F00-000 | CONDENSER ASSY | CONDENSER ASSY |
| 13 | 95891-50G00-000 | O-RING,D:1.8 ID:6.7 | O-RING,D:1.8 ID:6.7 |
| 14 | 95330-77G00-000 | RECEIVER DRYER | RECEIVER DRYER |
| 15 | 95350-76G00-000 | BRACKET,RCVR | BRACKET,RCVR |
| 16 | 95851-75F00-000 | BUSH,COND | BUSH,COND |
| 17 | 01550-06203-000 | Bolt | Bolt |
| 17 | 01550-0620B-000 | Bolt - Bolt, inspection cap | Bolt - Bolt, inspection cap |
| 18 | 02162-06163-000 | Screw - Bolt | Screw - Bolt |
| 18 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 21 | 95860-81A10-000 | FILTER | FILTER |
| 21 | 95860-81A01-000 | FILTER | FILTER |
| 22 | 09116-06167-000 | BOLT(6X20) - Bolt (6x20) | BOLT(6X20) - Bolt (6x20) |
| 23 | 03541-05163-000 | Screw | Screw |
| 23 | 03541-0516A-000 | SCREW | SCREW |
| 24 | 95732-76G00-000 | Hose, receiver outlet | Hose, receiver outlet |
| 24 | 95732-76G02-000 | HOSE,RCVR OUTLET | HOSE,RCVR OUTLET |
| 26 | 95526-50G10-000 | Switch, dual pressure | Switch, dual pressure |
| 26 | 95526-50G30-000 | SWITCH,DUAL PRESSURE | SWITCH,DUAL PRESSURE |
| 27 | 95400-76G03-000 | クーリングユニット | クーリングユニット |
| 27 | 95400-76G05-000 | COOLING UNIT | COOLING UNIT |
| 29 | 95896-50G00-000 | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) |
| 30 | 95720-76G00-000 | Hose, discharge | Hose, discharge |
| 30 | 95720-76G02-000 | HOSE,DISCHARGE | HOSE,DISCHARGE |
| 31 | 95895-50G00-000 | O-RING,D:2.4 ID:10.8 | O-RING,D:2.4 ID:10.8 |
| 35 | 09159-06081-000 | NUT | NUT |
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 17 | 01550-06203-000 | Bolt | Bolt |
| 17 | 01550-0620B-000 | Bolt - Bolt, inspection cap | Bolt - Bolt, inspection cap |
| 3 | 01550-08203-000 | Bolt | Bolt |
| 3 | 01550-0820A-000 | Bolt - Bolt, funnel bracket | Bolt - Bolt, funnel bracket |
| 3 | 01550-0820B-000 | Bolt | Bolt |
| 18 | 02162-06163-000 | Screw - Bolt | Screw - Bolt |
| 18 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 23 | 03541-05163-000 | Screw | Screw |
| 23 | 03541-0516A-000 | SCREW | SCREW |
| 22 | 09116-06167-000 | BOLT(6X20) - Bolt (6x20) | BOLT(6X20) - Bolt (6x20) |
| 35 | 09159-06081-000 | NUT | NUT |
| 6 | 95120-73G01-000 | Stay, compressor adjust | Stay, compressor adjust |
| 6 | 95120-73G10-000 | STAY,COMPRESSOR ADJUST | STAY,COMPRESSOR ADJUST |
| 9 | 95200-76G01-000 | コンプレッサアッシ | コンプレッサアッシ |
| 9 | 95200-76G03-000 | COMPRESSOR ASSY | COMPRESSOR ASSY |
| 9 | 95200-77G00-000 | Compressor assy (seiko) | Compressor assy (seiko) |
| 9 | 95200-77G02-000 | COMPRESSOR ASSY | COMPRESSOR ASSY |
| 11 | 95310-76F00-000 | CONDENSER ASSY | CONDENSER ASSY |
| 11 | 95310-76G20-000 | コンデンサアッシ | コンデンサアッシ |
| 14 | 95330-77G00-000 | RECEIVER DRYER | RECEIVER DRYER |
| 15 | 95350-76G00-000 | BRACKET,RCVR | BRACKET,RCVR |
| 27 | 95400-76G03-000 | クーリングユニット | クーリングユニット |
| 27 | 95400-76G05-000 | COOLING UNIT | COOLING UNIT |
| 26 | 95526-50G10-000 | Switch, dual pressure | Switch, dual pressure |
| 26 | 95526-50G30-000 | SWITCH,DUAL PRESSURE | SWITCH,DUAL PRESSURE |
| 30 | 95720-76G00-000 | Hose, discharge | Hose, discharge |
| 30 | 95720-76G02-000 | HOSE,DISCHARGE | HOSE,DISCHARGE |
| 24 | 95732-76G00-000 | Hose, receiver outlet | Hose, receiver outlet |
| 24 | 95732-76G02-000 | HOSE,RCVR OUTLET | HOSE,RCVR OUTLET |
| 16 | 95851-75F00-000 | BUSH,COND | BUSH,COND |
| 21 | 95860-81A01-000 | FILTER | FILTER |
| 21 | 95860-81A10-000 | FILTER | FILTER |
| 13 | 95891-50G00-000 | O-RING,D:1.8 ID:6.7 | O-RING,D:1.8 ID:6.7 |
| 31 | 95895-50G00-000 | O-RING,D:2.4 ID:10.8 | O-RING,D:2.4 ID:10.8 |
| 29 | 95896-50G00-000 | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) | O-RING,D:2.4 ID:13.4 - O ring (d:2.5,id:13.4) |
