Search › Compare › HA12S × HN21S
HA12S
Suzuki ALTO-A-STAR-CELERIO — 25 of 2,168 shared
HN21S
Suzuki KEI-SWIFT — 25 of 2,508 shared

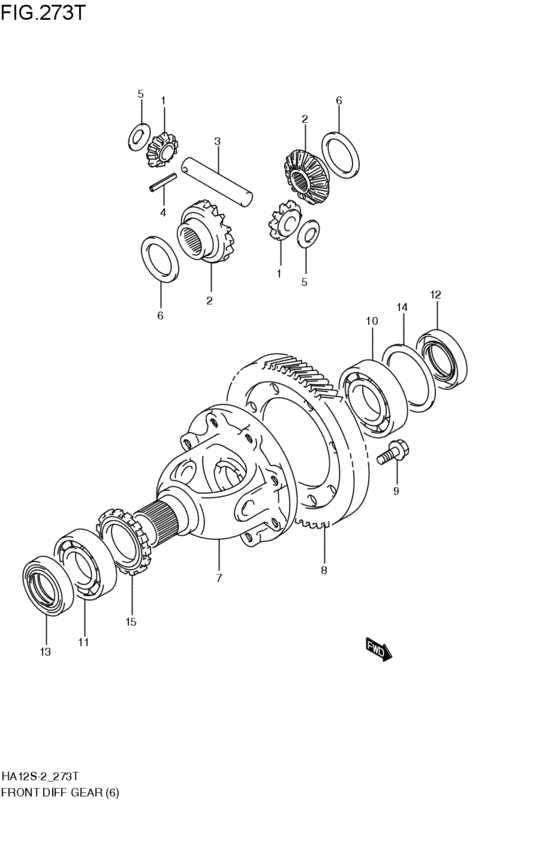

フロントデファレンシャルギヤ (4WD:(3AT,4AT); 1999-10-01~2001-01-01) 25 / 28
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 1 | 27331-78G11-000 | ピニオン,ディファレンシャル | ピニオン,ディファレンシャル |
| 1 | 27331-78FJ1-000 | PINION,DIFFERENTIAL | PINION,DIFFERENTIAL |
| 2 | 27341-82000-000 | GEAR DIFF | GEAR DIFF |
| 2 | 27341-76G12-000 | GEAR,DIFF | GEAR,DIFF |
| 3 | 27351-62B00-000 | SHAFT,DIFF SIDE PINION | SHAFT,DIFF SIDE PINION |
| 4 | 09205-05007-000 | PIN,SPRING(5X36) | PIN,SPRING(5X36) |
| 5 | 09164-15003-000 | WASHER | WASHER |
| 6 | 09160-35010-000 | WASHER(35X46X1.15) | WASHER(35X46X1.15) |
| 6 | 09160-35002-000 | WASHER(35X46X1) | WASHER(35X46X1) |
| 6 | 09160-35003-000 | WASHER(35X46X1.1) | WASHER(35X46X1.1) |
| 6 | 09160-35004-000 | WASHER(35X46X1.2) | WASHER(35X46X1.2) |
| 6 | 09160-35006-000 | WASHER(35X46X0.9) | WASHER(35X46X0.9) |
| 6 | 09160-35008-000 | WASHER(35X46X0.95) - Washer (35x46x0.95) | WASHER(35X46X0.95) - Washer (35x46x0.95) |
| 6 | 09160-35009-000 | WASHER(35X46X1.05) | WASHER(35X46X1.05) |
| 9 | 09103-10189-000 | BOLT(10X23) - Bolt, starter one way clutch | BOLT(10X23) - Bolt, starter one way clutch |
| 10 | 09262-35058-000 | BEARING(35X72X17) | BEARING(35X72X17) |
| 12 | 27431-73B20-000 | OIL SEAL,DIFF SIDE - Seal, defferential side oil | OIL SEAL,DIFF SIDE - Seal, defferential side oil |
| 12 | 27431-73H30-000 | SEAL,OIL | SEAL,OIL |
| 13 | 27432-76G10-000 | Seal, defferential side oil rh | Seal, defferential side oil rh |
| 13 | 27432-73H10-000 | SEAL,OIL | SEAL,OIL |
| 14 | 27441-56E00-040 | SHIM,DIFF SIDE | SHIM,DIFF SIDE |
| 14 | 27441-56E00-050 | SHIM,DIFF SIDE | SHIM,DIFF SIDE |
| 14 | 27441-56E00-060 | SHIM,DIFF SIDE | SHIM,DIFF SIDE |
| 14 | 27441-56E00-070 | SHIM,DIFF SIDE | SHIM,DIFF SIDE |
| 15 | 26121-76G10-000 | RING,EXCITER T:8 ID:45 | RING,EXCITER T:8 ID:45 |
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 9 | 09103-10189-000 | BOLT(10X23) - Bolt, starter one way clutch | BOLT(10X23) - Bolt, starter one way clutch |
| 6 | 09160-35002-000 | WASHER(35X46X1) | WASHER(35X46X1) |
| 6 | 09160-35003-000 | WASHER(35X46X1.1) | WASHER(35X46X1.1) |
| 6 | 09160-35004-000 | WASHER(35X46X1.2) | WASHER(35X46X1.2) |
| 6 | 09160-35006-000 | WASHER(35X46X0.9) | WASHER(35X46X0.9) |
| 6 | 09160-35008-000 | WASHER(35X46X0.95) - Washer (35x46x0.95) | WASHER(35X46X0.95) - Washer (35x46x0.95) |
| 6 | 09160-35009-000 | WASHER(35X46X1.05) | WASHER(35X46X1.05) |
| 6 | 09160-35010-000 | WASHER(35X46X1.15) | WASHER(35X46X1.15) |
| 5 | 09164-15003-000 | WASHER | WASHER |
| 4 | 09205-05007-000 | PIN,SPRING(5X36) | PIN,SPRING(5X36) |
| 5 | 09262-35058-000 | BEARING(35X72X17) | BEARING(35X72X17) |
| 15 | 26121-76G10-000 | RING,EXCITER T:8 ID:45 | RING,EXCITER T:8 ID:45 |
| 1 | 27331-78FJ1-000 | PINION,DIFFERENTIAL | PINION,DIFFERENTIAL |
| 1 | 27331-78G11-000 | ピニオン,ディファレンシャル | ピニオン,ディファレンシャル |
| 2 | 27341-76G12-000 | GEAR,DIFF | GEAR,DIFF |
| 2 | 27341-82000-000 | GEAR DIFF | GEAR DIFF |
| 3 | 27351-62B00-000 | SHAFT,DIFF SIDE PINION | SHAFT,DIFF SIDE PINION |
| 16 | 27431-73B20-000 | OIL SEAL,DIFF SIDE - Seal, defferential side oil | OIL SEAL,DIFF SIDE - Seal, defferential side oil |
| 16 | 27431-73H30-000 | SEAL,OIL | SEAL,OIL |
| 13 | 27432-73H10-000 | SEAL,OIL | SEAL,OIL |
| 13 | 27432-76G10-000 | Seal, defferential side oil rh | Seal, defferential side oil rh |
| 14 | 27441-56E00-040 | SHIM,DIFF SIDE | SHIM,DIFF SIDE |
| 14 | 27441-56E00-050 | SHIM,DIFF SIDE | SHIM,DIFF SIDE |
| 14 | 27441-56E00-060 | SHIM,DIFF SIDE | SHIM,DIFF SIDE |
| 14 | 27441-56E00-070 | SHIM,DIFF SIDE | SHIM,DIFF SIDE |
