Search › Compare › HA12S × HN21S
HA12S
Suzuki ALTO-A-STAR-CELERIO — 52 of 2,168 shared
HN21S
Suzuki KEI-SWIFT — 52 of 2,508 shared

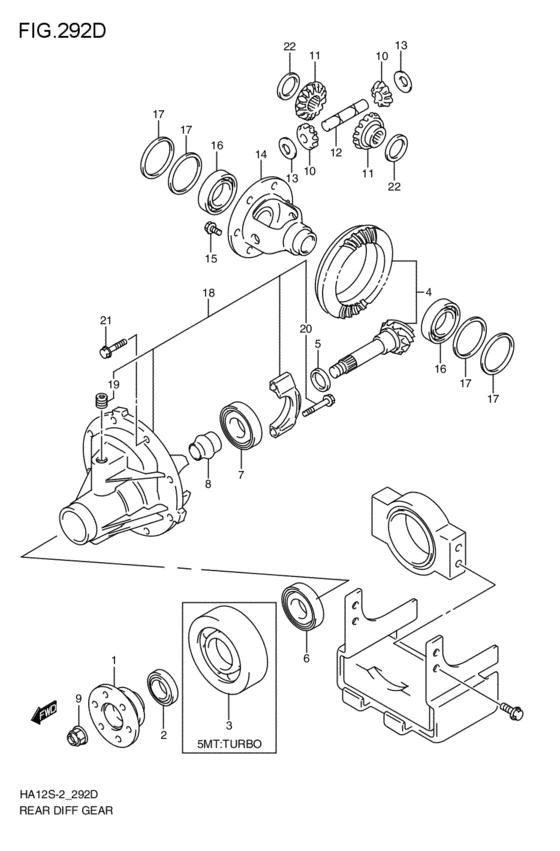

リヤデファレンシャルギヤ (4WD; 1999-10-01~2001-01-01) 52 / 53
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 1 | 27361-55F40-000 | Flange, defferential gear | Flange, defferential gear |
| 1 | 27361-55F41-000 | FLANGE,DIFF | FLANGE,DIFF |
| 2 | 09283-28022-000 | SEAL,OIL(28X47X7) | SEAL,OIL(28X47X7) |
| 4 | 27300-76820-000 | Pinion/gear set, drive bevel | Pinion/gear set, drive bevel |
| 4 | 09159-16021-000 | NUT | NUT |
| 4 | 27300-50810-000 | BEVEL PINION&GEAR SET | BEVEL PINION&GEAR SET |
| 5 | 09181-25031-000 | SHIM(25.5X31.5X0.3) | SHIM(25.5X31.5X0.3) |
| 5 | 09181-25139-000 | SHIM(25X32X1) - Washer, shift cam spring | SHIM(25X32X1) - Washer, shift cam spring |
| 5 | 09181-25140-000 | SHIM(25X32X1.03) | SHIM(25X32X1.03) |
| 5 | 09181-25142-000 | SHIM(25X32X1.06) | SHIM(25X32X1.06) |
| 5 | 09181-25143-000 | SHIM(25X32X1.09) | SHIM(25X32X1.09) |
| 5 | 09181-25145-000 | SHIM(25X32X1.12) | SHIM(25X32X1.12) |
| 5 | 09181-25146-000 | SHIM(25X32X1.15) | SHIM(25X32X1.15) |
| 5 | 09181-25147-000 | SHIM(25X32X1.18) | SHIM(25X32X1.18) |
| 5 | 09181-25149-000 | SHIM(25X32X1.21) | SHIM(25X32X1.21) |
| 5 | 09181-25150-000 | SHIM(25X32X1.24) | SHIM(25X32X1.24) |
| 5 | 09181-25152-000 | SHIM(25X32X1.27) | SHIM(25X32X1.27) |
| 5 | 09181-25153-000 | SHIM(25X32X1.3) | SHIM(25X32X1.3) |
| 6 | 09265-20001-000 | BEARING(20X47X15.25) | BEARING(20X47X15.25) |
| 7 | 09265-25037-000 | BEARING(25X62X25.25) | BEARING(25X62X25.25) |
| 8 | 27315-60C10-000 | SPACER,BEVEL PINION | SPACER,BEVEL PINION |
| 9 | 09159-16018-000 | NUT | NUT |
| 10 | 27331-78511-000 | PINION,DIFFERENTIAL | PINION,DIFFERENTIAL |
| 11 | 27341-70B01-000 | GEAR,FR DIFF | GEAR,FR DIFF |
| 11 | 27341-52R00-000 | GEAR,DIFFERENTIAL | GEAR,DIFFERENTIAL |
| 12 | 27351-76G00-000 | SHAFT,DIFF PINION | SHAFT,DIFF PINION |
| 13 | 09164-15005-000 | WASHER | WASHER |
| 14 | 27411-76G00-000 | CASE,DIFF | CASE,DIFF |
| 15 | 09103-10309-000 | BOLT(10X16) | BOLT(10X16) |
| 16 | 09262-35060-000 | BEARING(35X62X14) | BEARING(35X62X14) |
| 17 | 09181-50007-000 | SHIM(50X62X1.4) - Shim (50x62x1.4) | SHIM(50X62X1.4) - Shim (50x62x1.4) |
| 17 | 09181-50008-000 | SHIM(50X62X1.5) - Shim (50x62x1.5) | SHIM(50X62X1.5) - Shim (50x62x1.5) |
| 17 | 09181-50009-000 | SHIM(50X62X1.6) - Shim (50x62x1.6) | SHIM(50X62X1.6) - Shim (50x62x1.6) |
| 17 | 09181-50010-000 | SHIM(50X62X1.7) - Shim (50x62x1.7) | SHIM(50X62X1.7) - Shim (50x62x1.7) |
| 17 | 09181-50015-000 | SHIM(50X62X1.35) | SHIM(50X62X1.35) |
| 17 | 27453-52R00-135 | SHIM(50X62X1.35) | SHIM(50X62X1.35) |
| 17 | 09181-50016-000 | Shim (t:1.45) | Shim (t:1.45) |
| 17 | 27453-52R00-145 | SHIM(50X62X1.45) | SHIM(50X62X1.45) |
| 17 | 09181-50017-000 | SHIM(50X62X1.55) | SHIM(50X62X1.55) |
| 17 | 27453-52R00-155 | SHIM(50X62X1.55) | SHIM(50X62X1.55) |
| 17 | 09181-50018-000 | SHIM(50X62X1.65) | SHIM(50X62X1.65) |
| 17 | 27453-52R00-165 | SHIM(50X62X1.65) | SHIM(50X62X1.65) |
| 17 | 09181-50019-000 | Shim (t:1.75) | Shim (t:1.75) |
| 17 | 27453-52R00-175 | SHIM(50X62X1.75) | SHIM(50X62X1.75) |
| 18 | 27450-76G00-000 | CARRIER ASSY,DIFF | CARRIER ASSY,DIFF |
| 19 | 09246-16010-000 | PLUG | PLUG |
| 19 | 09246-16021-000 | Plug,t/m Oil Drain | Plug,t/m Oil Drain |
| 20 | 09111-08082-000 | BOLT(8X49.5) | BOLT(8X49.5) |
| 21 | 09112-08002-000 | BOLT(8X25) | BOLT(8X25) |
| 22 | 09160-29012-000 | WASHER(29X40X1) - Washer (t:1.0) | WASHER(29X40X1) - Washer (t:1.0) |
| 22 | 09160-29014-000 | WASHER(29X40X0.9) | WASHER(29X40X0.9) |
| 22 | 09160-29015-000 | WASHER(29X40X1.1) | WASHER(29X40X1.1) |
| # | OEM | HA12S | HN21S |
|---|---|---|---|
| 15 | 09103-10309-000 | BOLT(10X16) | BOLT(10X16) |
| 20 | 09111-08082-000 | BOLT(8X49.5) | BOLT(8X49.5) |
| 25 | 09112-08002-000 | BOLT(8X25) | BOLT(8X25) |
| 9 | 09159-16018-000 | NUT | NUT |
| 4 | 09159-16021-000 | NUT | NUT |
| 22 | 09160-29012-000 | WASHER(29X40X1) - Washer (t:1.0) | WASHER(29X40X1) - Washer (t:1.0) |
| 22 | 09160-29014-000 | WASHER(29X40X0.9) | WASHER(29X40X0.9) |
| 22 | 09160-29015-000 | WASHER(29X40X1.1) | WASHER(29X40X1.1) |
| 13 | 09164-15005-000 | WASHER | WASHER |
| 5 | 09181-25031-000 | SHIM(25.5X31.5X0.3) | SHIM(25.5X31.5X0.3) |
| 5 | 09181-25139-000 | SHIM(25X32X1) - Washer, shift cam spring | SHIM(25X32X1) - Washer, shift cam spring |
| 5 | 09181-25140-000 | SHIM(25X32X1.03) | SHIM(25X32X1.03) |
| 5 | 09181-25142-000 | SHIM(25X32X1.06) | SHIM(25X32X1.06) |
| 5 | 09181-25143-000 | SHIM(25X32X1.09) | SHIM(25X32X1.09) |
| 5 | 09181-25145-000 | SHIM(25X32X1.12) | SHIM(25X32X1.12) |
| 5 | 09181-25146-000 | SHIM(25X32X1.15) | SHIM(25X32X1.15) |
| 5 | 09181-25147-000 | SHIM(25X32X1.18) | SHIM(25X32X1.18) |
| 5 | 09181-25149-000 | SHIM(25X32X1.21) | SHIM(25X32X1.21) |
| 5 | 09181-25150-000 | SHIM(25X32X1.24) | SHIM(25X32X1.24) |
| 5 | 09181-25152-000 | SHIM(25X32X1.27) | SHIM(25X32X1.27) |
| 5 | 09181-25153-000 | SHIM(25X32X1.3) | SHIM(25X32X1.3) |
| 17 | 09181-50007-000 | SHIM(50X62X1.4) - Shim (50x62x1.4) | SHIM(50X62X1.4) - Shim (50x62x1.4) |
| 17 | 09181-50008-000 | SHIM(50X62X1.5) - Shim (50x62x1.5) | SHIM(50X62X1.5) - Shim (50x62x1.5) |
| 17 | 09181-50009-000 | SHIM(50X62X1.6) - Shim (50x62x1.6) | SHIM(50X62X1.6) - Shim (50x62x1.6) |
| 17 | 09181-50010-000 | SHIM(50X62X1.7) - Shim (50x62x1.7) | SHIM(50X62X1.7) - Shim (50x62x1.7) |
| 17 | 09181-50015-000 | SHIM(50X62X1.35) | SHIM(50X62X1.35) |
| 17 | 09181-50016-000 | Shim (t:1.45) | Shim (t:1.45) |
| 17 | 09181-50017-000 | SHIM(50X62X1.55) | SHIM(50X62X1.55) |
| 17 | 09181-50018-000 | SHIM(50X62X1.65) | SHIM(50X62X1.65) |
| 17 | 09181-50019-000 | Shim (t:1.75) | Shim (t:1.75) |
| 12 | 09246-16010-000 | PLUG | PLUG |
| 12 | 09246-16021-000 | Plug,t/m Oil Drain | Plug,t/m Oil Drain |
| 16 | 09262-35060-000 | BEARING(35X62X14) | BEARING(35X62X14) |
| 6 | 09265-20001-000 | BEARING(20X47X15.25) | BEARING(20X47X15.25) |
| 7 | 09265-25037-000 | BEARING(25X62X25.25) | BEARING(25X62X25.25) |
| 2 | 09283-28022-000 | SEAL,OIL(28X47X7) | SEAL,OIL(28X47X7) |
| 4 | 27300-50810-000 | BEVEL PINION&GEAR SET | BEVEL PINION&GEAR SET |
| 4 | 27300-76820-000 | Pinion/gear set, drive bevel | Pinion/gear set, drive bevel |
| 8 | 27315-60C10-000 | SPACER,BEVEL PINION | SPACER,BEVEL PINION |
| 10 | 27331-78511-000 | PINION,DIFFERENTIAL | PINION,DIFFERENTIAL |
| 11 | 27341-52R00-000 | GEAR,DIFFERENTIAL | GEAR,DIFFERENTIAL |
| 11 | 27341-70B01-000 | GEAR,FR DIFF | GEAR,FR DIFF |
| 12 | 27351-76G00-000 | SHAFT,DIFF PINION | SHAFT,DIFF PINION |
| 1 | 27361-55F40-000 | Flange, defferential gear | Flange, defferential gear |
| 1 | 27361-55F41-000 | FLANGE,DIFF | FLANGE,DIFF |
| 14 | 27411-76G00-000 | CASE,DIFF | CASE,DIFF |
| 18 | 27450-76G00-000 | CARRIER ASSY,DIFF | CARRIER ASSY,DIFF |
| 17 | 27453-52R00-135 | SHIM(50X62X1.35) | SHIM(50X62X1.35) |
| 17 | 27453-52R00-145 | SHIM(50X62X1.45) | SHIM(50X62X1.45) |
| 17 | 27453-52R00-155 | SHIM(50X62X1.55) | SHIM(50X62X1.55) |
| 17 | 27453-52R00-165 | SHIM(50X62X1.65) | SHIM(50X62X1.65) |
| 17 | 27453-52R00-175 | SHIM(50X62X1.75) | SHIM(50X62X1.75) |
