Search › Compare › GX81 × JZX81
GX81
Toyota CHASER — 51 of 7,573 shared
JZX81
Toyota CHASER — 51 of 6,059 shared

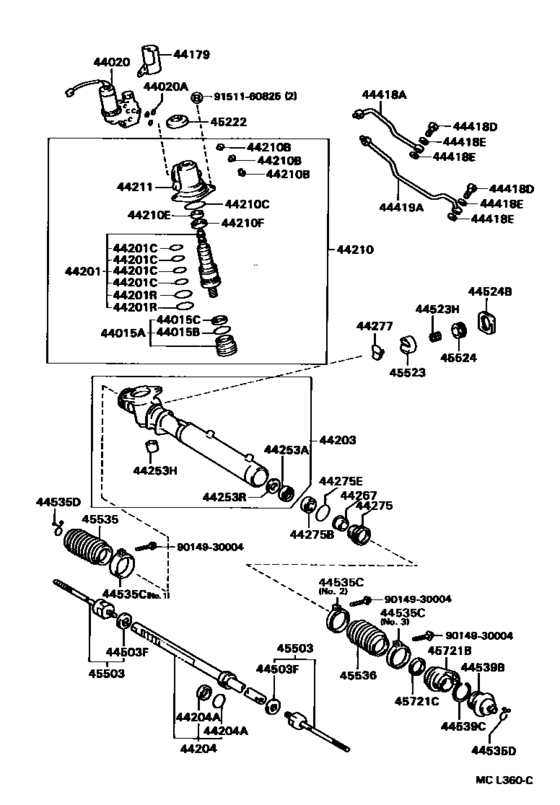

Front Steering Gear & Link ([08.1988 - ] (9008- )JZX81..GT (8808- )GX81..SPC,TWC,TWT ; (8908- )JZX81, MX83..TWC ; (9008- )TWT) 51 / 64
| # | OEM | GX81 | JZX81 |
|---|---|---|---|
| 44015 | 44015-22030 | Nut Sub-Assy, Bearing Guide | Nut Sub-Assy, Bearing Guide |
| 44015 | 90301-53181 | Ring, O(For Bearing Guide Nut) | Ring, O(For Bearing Guide Nut) |
| 44015 | 90310-30007 | Seal, Oil(For Bearing Guide Nut) | Seal, Oil(For Bearing Guide Nut) |
| 44015 | 90311-30016 | Seal, Oil(For Bearing Guide Nut) | Seal, Oil(For Bearing Guide Nut) |
| 44015 | 90311-30008 | Seal, Oil(For Bearing Guide Nut) | Seal, Oil(For Bearing Guide Nut) |
| 44020 | 44020-22020 | Valve Assy, Pressure Control W/solenoid Valve | Valve Assy, Pressure Control W/solenoid Valve |
| 44020 | 96711-19014 | O-Ring | O-Ring |
| 44201 | 44201-22120 | Valve Sub-Assy, Power Steering Control | Valve Sub-Assy, Power Steering Control |
| 44201 | 90562-33007 | Ring(For Power Steering Control Valve) | Ring(For Power Steering Control Valve) |
| 44201 | 90562-49002 | Ring(For Power Steering Control Valve) | Ring(For Power Steering Control Valve) |
| 44203 | 44203-22070 | Housing Sub-Assy, Power Steering Rack | Housing Sub-Assy, Power Steering Rack |
| 44204 | 44204-22031 | Rack Sub-Assy, Power Steering | Rack Sub-Assy, Power Steering |
| 44204 | 44204-22032 | Rack Sub-Assy, Power Steering | Rack Sub-Assy, Power Steering |
| 44204 | 90301-37007 | Ring(For Rack Steering Piston) | Ring(For Rack Steering Piston) |
| 44204 | 90562-41001 | Ring(For Rack Steering Piston) | Ring(For Rack Steering Piston) |
| 44210 | 44210-22170 | Valve Assy, Power Steering Control | Valve Assy, Power Steering Control |
| 44210 | 90410-04004 | Seat, Union(For Power Steering Control Valve) | Seat, Union(For Power Steering Control Valve) |
| 44210 | 90410-06005 | Seat, Union(Pressure Control Valve Assy) | Seat, Union(Pressure Control Valve Assy) |
| 44210 | 90301-62005 | Ring, O(For Power Steering Control Valve) | Ring, O(For Power Steering Control Valve) |
| 44210 | 90311-19002 | Seal, Oil(For Adjuster Plug) | Seal, Oil(For Adjuster Plug) |
| 44210 | 90363-19003 | Bearing(For Rear Steering Control Valve Housing) | Bearing(For Rear Steering Control Valve Housing) |
| 44211 | 44211-22060 | Housing, Control Valve | Housing, Control Valve |
| 44253 | 90310-26008 | Seal, Oil, No.1(For Power Steering Cylinder Tube) | Seal, Oil, No.1(For Power Steering Cylinder Tube) |
| 44253 | 90310-26018 | Seal, Oil, No.1(For Power Steering Cylinder Tube) | Seal, Oil, No.1(For Power Steering Cylinder Tube) |
| 44253 | 90364-13003 | Bearing(For Power Steering Control Valve Lower) | Bearing(For Power Steering Control Valve Lower) |
| 44253 | 90560-27013 | Spacer, No.1(For Power Steering Cylinder Tube) | Spacer, No.1(For Power Steering Cylinder Tube) |
| 44267 | 44267-22020 | Guide, Rack End | Guide, Rack End |
| 44275 | 44275-22020 | Stopper, Cylinder End | Stopper, Cylinder End |
| 44275 | 90301-40004 | Ring, O(For Rack End Guide) | Ring, O(For Rack End Guide) |
| 44277 | 44277-22010 | Seat, Rack Guide | Seat, Rack Guide |
| 44418 | 44418-22090 | Tube, Steering Right Turn Pressure | Tube, Steering Right Turn Pressure |
| 44418 | 90401-10021 | Bolt, Union(For Steering Turn Pressure Tube) | Bolt, Union(For Steering Turn Pressure Tube) |
| 44418 | 90430-10008 | Gasket(For Steering Turn Pressure Tube) | Gasket(For Steering Turn Pressure Tube) |
| 44419 | 44419-22090 | Tube, Steering Left Turn Pressure | Tube, Steering Left Turn Pressure |
| 44503 | 90214-14007 | Washer, Claw(For Power Steering Rack End) | Washer, Claw(For Power Steering Rack End) |
| 44523 | 90501-23024 | Spring(For Power Steering Rack Guide) | Spring(For Power Steering Rack Guide) |
| 44523 | 90501-26074 | Spring(For Power Steering Rack Guide) | Spring(For Power Steering Rack Guide) |
| 44524 | 90179-36002 | Nut(For Power Steering Pinion Cap) | Nut(For Power Steering Pinion Cap) |
| 44535 | 90460-49002 | Clamp(For Power Steering Rack Boot) | Clamp(For Power Steering Rack Boot) |
| 44535 | 90467-18003 | Clip Or Clamp(For Ventilation Hose) | Clip Or Clamp(For Ventilation Hose) |
| 44535 | 90467-19012 | Clip | Clip |
| 44535 | 90467-19019 | Clip | Clip |
| 45222 | 45222-22040 | Cover, Steering Gear Dust | Cover, Steering Gear Dust |
| 45222 | 45222-51010 | Cover, Dust(For Power Steering Gear) | Cover, Dust(For Power Steering Gear) |
| 45503 | 45503-29315 | End Sub-Assy, Steering Rack | End Sub-Assy, Steering Rack |
| 45523 | 45523-22030 | Guide, Rack(For Steering Gear) | Guide, Rack(For Steering Gear) |
| 45524 | 45524-16010 | Cap(For Power Steering Pinion) | Cap(For Power Steering Pinion) |
| 45535 | 45535-22080 | Boot, Steering Rack, No.1 | Boot, Steering Rack, No.1 |
| 9014930004 | 90149-30004 | Screw(For Steering Rack Boot Clamp) | Screw(For Steering Rack Boot Clamp) |
| 9151160825 | 91511-60825 | Bolt (For Transfer Stiffener Plate) | Bolt (For Transfer Stiffener Plate) |
| 9151160825 | 91511-B0825 | Bolt (For Transfer Stiffener Plate) | Bolt (For Transfer Stiffener Plate) |
| # | OEM | GX81 | JZX81 |
|---|---|---|---|
| 44015 | 44015-22030 | Nut Sub-Assy, Bearing Guide | Nut Sub-Assy, Bearing Guide |
| 44020 | 44020-22020 | Valve Assy, Pressure Control W/solenoid Valve | Valve Assy, Pressure Control W/solenoid Valve |
| 44201 | 44201-22120 | Valve Sub-Assy, Power Steering Control | Valve Sub-Assy, Power Steering Control |
| 44203 | 44203-22070 | Housing Sub-Assy, Power Steering Rack | Housing Sub-Assy, Power Steering Rack |
| 44204 | 44204-22031 | Rack Sub-Assy, Power Steering | Rack Sub-Assy, Power Steering |
| 44204 | 44204-22032 | Rack Sub-Assy, Power Steering | Rack Sub-Assy, Power Steering |
| 44210 | 44210-22170 | Valve Assy, Power Steering Control | Valve Assy, Power Steering Control |
| 44211 | 44211-22060 | Housing, Control Valve | Housing, Control Valve |
| 44267 | 44267-22020 | Guide, Rack End | Guide, Rack End |
| 44275 | 44275-22020 | Stopper, Cylinder End | Stopper, Cylinder End |
| 44277 | 44277-22010 | Seat, Rack Guide | Seat, Rack Guide |
| 44418 | 44418-22090 | Tube, Steering Right Turn Pressure | Tube, Steering Right Turn Pressure |
| 44419 | 44419-22090 | Tube, Steering Left Turn Pressure | Tube, Steering Left Turn Pressure |
| 45222 | 45222-22040 | Cover, Steering Gear Dust | Cover, Steering Gear Dust |
| 45222 | 45222-51010 | Cover, Dust(For Power Steering Gear) | Cover, Dust(For Power Steering Gear) |
| 45503 | 45503-29315 | End Sub-Assy, Steering Rack | End Sub-Assy, Steering Rack |
| 45523 | 45523-22030 | Guide, Rack(For Steering Gear) | Guide, Rack(For Steering Gear) |
| 45524 | 45524-16010 | Cap(For Power Steering Pinion) | Cap(For Power Steering Pinion) |
| 45535 | 45535-22080 | Boot, Steering Rack, No.1 | Boot, Steering Rack, No.1 |
| 9014930004 | 90149-30004 | Screw(For Steering Rack Boot Clamp) | Screw(For Steering Rack Boot Clamp) |
| 44524 | 90179-36002 | Nut(For Power Steering Pinion Cap) | Nut(For Power Steering Pinion Cap) |
| 44503 | 90214-14007 | Washer, Claw(For Power Steering Rack End) | Washer, Claw(For Power Steering Rack End) |
| 44204 | 90301-37007 | Ring(For Rack Steering Piston) | Ring(For Rack Steering Piston) |
| 44275 | 90301-40004 | Ring, O(For Rack End Guide) | Ring, O(For Rack End Guide) |
| 44015 | 90301-53181 | Ring, O(For Bearing Guide Nut) | Ring, O(For Bearing Guide Nut) |
| 44210 | 90301-62005 | Ring, O(For Power Steering Control Valve) | Ring, O(For Power Steering Control Valve) |
| 44253 | 90310-26008 | Seal, Oil, No.1(For Power Steering Cylinder Tube) | Seal, Oil, No.1(For Power Steering Cylinder Tube) |
| 44253 | 90310-26018 | Seal, Oil, No.1(For Power Steering Cylinder Tube) | Seal, Oil, No.1(For Power Steering Cylinder Tube) |
| 44015 | 90310-30007 | Seal, Oil(For Bearing Guide Nut) | Seal, Oil(For Bearing Guide Nut) |
| 44210 | 90311-19002 | Seal, Oil(For Adjuster Plug) | Seal, Oil(For Adjuster Plug) |
| 44015 | 90311-30008 | Seal, Oil(For Bearing Guide Nut) | Seal, Oil(For Bearing Guide Nut) |
| 44015 | 90311-30016 | Seal, Oil(For Bearing Guide Nut) | Seal, Oil(For Bearing Guide Nut) |
| 44210 | 90363-19003 | Bearing(For Rear Steering Control Valve Housing) | Bearing(For Rear Steering Control Valve Housing) |
| 44253 | 90364-13003 | Bearing(For Power Steering Control Valve Lower) | Bearing(For Power Steering Control Valve Lower) |
| 44418 | 90401-10021 | Bolt, Union(For Steering Turn Pressure Tube) | Bolt, Union(For Steering Turn Pressure Tube) |
| 44210 | 90410-04004 | Seat, Union(For Power Steering Control Valve) | Seat, Union(For Power Steering Control Valve) |
| 44210 | 90410-06005 | Seat, Union(Pressure Control Valve Assy) | Seat, Union(Pressure Control Valve Assy) |
| 44418 | 90430-10008 | Gasket(For Steering Turn Pressure Tube) | Gasket(For Steering Turn Pressure Tube) |
| 44535 | 90460-49002 | Clamp(For Power Steering Rack Boot) | Clamp(For Power Steering Rack Boot) |
| 44535 | 90467-18003 | Clip Or Clamp(For Ventilation Hose) | Clip Or Clamp(For Ventilation Hose) |
| 44535 | 90467-19012 | Clip | Clip |
| 44535 | 90467-19019 | Clip | Clip |
| 44523 | 90501-23024 | Spring(For Power Steering Rack Guide) | Spring(For Power Steering Rack Guide) |
| 44523 | 90501-26074 | Spring(For Power Steering Rack Guide) | Spring(For Power Steering Rack Guide) |
| 44253 | 90560-27013 | Spacer, No.1(For Power Steering Cylinder Tube) | Spacer, No.1(For Power Steering Cylinder Tube) |
| 44201 | 90562-33007 | Ring(For Power Steering Control Valve) | Ring(For Power Steering Control Valve) |
| 44204 | 90562-41001 | Ring(For Rack Steering Piston) | Ring(For Rack Steering Piston) |
| 44201 | 90562-49002 | Ring(For Power Steering Control Valve) | Ring(For Power Steering Control Valve) |
| 9151160825 | 91511-60825 | Bolt (For Transfer Stiffener Plate) | Bolt (For Transfer Stiffener Plate) |
| 9151560825 | 91511-B0825 | Bolt (For Transfer Stiffener Plate) | Bolt (For Transfer Stiffener Plate) |
| 44020 | 96711-19014 | O-Ring | O-Ring |
