Search › Compare › GSR50 × GSV60
GSR50
Toyota ESTIMA-EMINA-LUCIDA — 13 of 7,453 shared
GSV60
Lexus ES — 13 of 7,483 shared

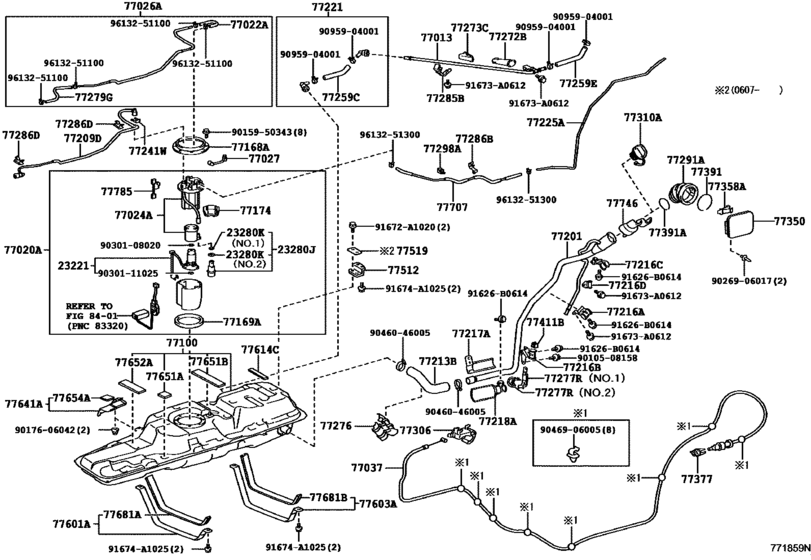

Fuel Tank & Tube ([04.2006 - 12.2008] ﾌｭｰｴﾙ ﾀﾝｸ (0604-0812)) 13 / 104
| # | OEM | GSR50 | GSV60 |
|---|---|---|---|
| 23280 | 90301-04013 | Ring, O(For Fuel Pump) | Ring, O(For Fuel Pump) |
| 23280 | 90301-15024 | Ring, O(For Fuel Pump) | Ring, O(For Fuel Pump) |
| 77168 | 77168-52020 | Plate, Fuel Tank Vent Tube Set | Plate, Fuel Tank Vent Tube Set |
| 77169 | 77169-52010 | Gasket, Fuel Suction Tube Set | Gasket, Fuel Suction Tube Set |
| 77241 | 77241-33011 | Clip, Tube Joint | Clip, Tube Joint |
| 77298 | 77298-30170 | Clamp, Fuel Tube, No.3 | Clamp, Fuel Tube, No.3 |
| 77310 | 77300-52030 | Cap Assy, Fuel Tank | Cap Assy, Fuel Tank |
| 77651 | 77651-20090 | Cushion, Fuel Tank, No.1 | Cushion, Fuel Tank, No.1 |
| 77746 | 77745-12050 | Filter, Charcoal Canister, No.1 | Filter, Charcoal Canister, No.1 |
| 9015950343 | 90159-50343 | SCREW, W-WASHER | SCREW, W-WASHER |
| 9026906017 | 90269-06017 | RIVET | RIVET |
| 9613251100 | 96132-51100 | Clip (For Hose) | Clip (For Hose) |
| 9613251300 | 96132-51300 | Clip(For Ventilation Hose No.2) | Clip(For Ventilation Hose No.2) |
| # | OEM | GSR50 | GSV60 |
|---|---|---|---|
| 77168 | 77168-52020 | Plate, Fuel Tank Vent Tube Set | Plate, Fuel Tank Vent Tube Set |
| 77169 | 77169-52010 | Gasket, Fuel Suction Tube Set | Gasket, Fuel Suction Tube Set |
| 77241 | 77241-33011 | Clip, Tube Joint | Clip, Tube Joint |
| 77298 | 77298-30170 | Clamp, Fuel Tube, No.3 | Clamp, Fuel Tube, No.3 |
| 77310 | 77300-52030 | Cap Assy, Fuel Tank | Cap Assy, Fuel Tank |
| 77651 | 77651-20090 | Cushion, Fuel Tank, No.1 | Cushion, Fuel Tank, No.1 |
| 77746 | 77745-12050 | Filter, Charcoal Canister, No.1 | Filter, Charcoal Canister, No.1 |
| 9015950343 | 90159-50343 | SCREW, W-WASHER | SCREW, W-WASHER |
| 9026906017 | 90269-06017 | RIVET | RIVET |
| 23280 | 90301-04013 | Ring, O(For Fuel Pump) | Ring, O(For Fuel Pump) |
| 23280 | 90301-15024 | Ring, O(For Fuel Pump) | Ring, O(For Fuel Pump) |
| 9613251100 | 96132-51100 | Clip (For Hose) | Clip (For Hose) |
| 9613251300 | 96132-51300 | Clip(For Ventilation Hose No.2) | Clip(For Ventilation Hose No.2) |
