Search › Compare › GSR50 × GSR55
GSR50
Toyota ESTIMA-EMINA-LUCIDA — 29 of 7,453 shared
GSR55
Toyota ESTIMA-EMINA-LUCIDA — 29 of 7,804 shared

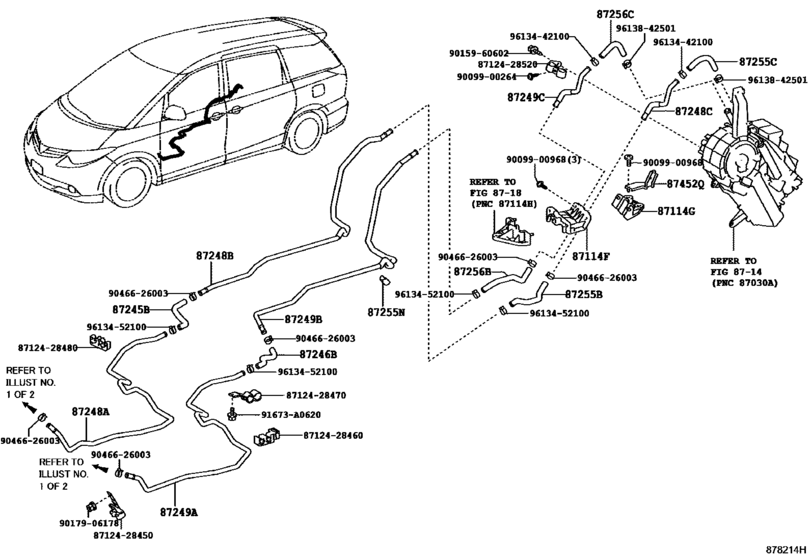

Heating & Air Conditioning - Water Piping ([01.2006 - ] ﾘﾔ (0601- )) 29 / 29
| # | OEM | GSR50 | GSR55 |
|---|---|---|---|
| 87114 | 87114-28100 | Cover, Heater, No.2 | Cover, Heater, No.2 |
| 87114 | 87114-28110 | Cover, Heater, No.3 | Cover, Heater, No.3 |
| 87245 | 87245-28A50 | Hose, Heater Water, Inlet A | Hose, Heater Water, Inlet A |
| 87246 | 87245-28A60 | Hose, Heater Water, Outlet A | Hose, Heater Water, Outlet A |
| 87248 | 87248-28440 | Pipe, Heater Water Inlet, A | Pipe, Heater Water Inlet, A |
| 87248 | 87248-28460 | Pipe, Heater Water Inlet, B | Pipe, Heater Water Inlet, B |
| 87248 | 87248-28480 | Pipe, Heater Water Inlet, C | Pipe, Heater Water Inlet, C |
| 87249 | 87248-28450 | Pipe, Heater Water Outlet, A | Pipe, Heater Water Outlet, A |
| 87249 | 87248-28470 | Pipe, Heater Water Outlet, B | Pipe, Heater Water Outlet, B |
| 87249 | 87248-28490 | Pipe, Heater Water Outlet, C | Pipe, Heater Water Outlet, C |
| 87255 | 87245-28A70 | Hose, Rear Heater Water Inlet, B | Hose, Rear Heater Water Inlet, B |
| 87255 | 87245-28B70 | Hose, Rear Heater Water Inlet, C | Hose, Rear Heater Water Inlet, C |
| 87255 | 87255-28010 | Pipe, Heater Protector, No.1 | Pipe, Heater Protector, No.1 |
| 87256 | 87245-28A80 | Hose, Rear Heater Water Inlet, B | Hose, Rear Heater Water Inlet, B |
| 87452 | 87452-28150 | Bracket, Heater, No.1 | Bracket, Heater, No.1 |
| 91673 | 91673-A0620 | BOLT FLANGE | BOLT FLANGE |
| 8712428450 | 87124-28450 | Clamp, Heater | Clamp, Heater |
| 8712428460 | 87124-28460 | Clamp, Heater | Clamp, Heater |
| 8712428470 | 87124-28470 | Clamp, Heater | Clamp, Heater |
| 8712428480 | 87124-28480 | Clamp, Heater | Clamp, Heater |
| 8712428520 | 87124-28520 | Clamp, Heater | Clamp, Heater |
| 9009900264 | 90099-00264 | SCREW | SCREW |
| 9009900968 | 90099-00968 | Screw(For Air Conditioner Unit) | Screw(For Air Conditioner Unit) |
| 9015960602 | 90159-60602 | SCREW | SCREW |
| 9017906178 | 90179-06178 | Nut (For Rear Wiper Arm Setting) | Nut (For Rear Wiper Arm Setting) |
| 9046626003 | 90466-26003 | New Genuine Part | New Genuine Part |
| 9613442100 | 96134-42100 | Clip(For Water By-Pass Hose Assy) | Clip(For Water By-Pass Hose Assy) |
| 9613452100 | 96134-52100 | Clip(For Ventilation Hose) | Clip(For Ventilation Hose) |
| 9613842501 | 96138-42501 | Clip, Hose(For Radiator Hose Sub-Assy) | Clip, Hose(For Radiator Hose Sub-Assy) |
| # | OEM | GSR50 | GSR55 |
|---|---|---|---|
| 87114 | 87114-28100 | Cover, Heater, No.2 | Cover, Heater, No.2 |
| 87114 | 87114-28110 | Cover, Heater, No.3 | Cover, Heater, No.3 |
| 8712428450 | 87124-28450 | Clamp, Heater | Clamp, Heater |
| 8712428460 | 87124-28460 | Clamp, Heater | Clamp, Heater |
| 8712428470 | 87124-28470 | Clamp, Heater | Clamp, Heater |
| 8712428480 | 87124-28480 | Clamp, Heater | Clamp, Heater |
| 8712428520 | 87124-28520 | Clamp, Heater | Clamp, Heater |
| 87245 | 87245-28A50 | Hose, Heater Water, Inlet A | Hose, Heater Water, Inlet A |
| 87246 | 87245-28A60 | Hose, Heater Water, Outlet A | Hose, Heater Water, Outlet A |
| 87255 | 87245-28A70 | Hose, Rear Heater Water Inlet, B | Hose, Rear Heater Water Inlet, B |
| 87256 | 87245-28A80 | Hose, Rear Heater Water Inlet, B | Hose, Rear Heater Water Inlet, B |
| 87255 | 87245-28B70 | Hose, Rear Heater Water Inlet, C | Hose, Rear Heater Water Inlet, C |
| 87248 | 87248-28440 | Pipe, Heater Water Inlet, A | Pipe, Heater Water Inlet, A |
| 87249 | 87248-28450 | Pipe, Heater Water Outlet, A | Pipe, Heater Water Outlet, A |
| 87248 | 87248-28460 | Pipe, Heater Water Inlet, B | Pipe, Heater Water Inlet, B |
| 87249 | 87248-28470 | Pipe, Heater Water Outlet, B | Pipe, Heater Water Outlet, B |
| 87248 | 87248-28480 | Pipe, Heater Water Inlet, C | Pipe, Heater Water Inlet, C |
| 87249 | 87248-28490 | Pipe, Heater Water Outlet, C | Pipe, Heater Water Outlet, C |
| 87255 | 87255-28010 | Pipe, Heater Protector, No.1 | Pipe, Heater Protector, No.1 |
| 87452 | 87452-28150 | Bracket, Heater, No.1 | Bracket, Heater, No.1 |
| 9009900264 | 90099-00264 | SCREW | SCREW |
| 9009900968 | 90099-00968 | Screw(For Air Conditioner Unit) | Screw(For Air Conditioner Unit) |
| 9015960602 | 90159-60602 | SCREW | SCREW |
| 9017906178 | 90179-06178 | Nut (For Rear Wiper Arm Setting) | Nut (For Rear Wiper Arm Setting) |
| 9046626003 | 90466-26003 | New Genuine Part | New Genuine Part |
| 91673 | 91673-A0620 | BOLT FLANGE | BOLT FLANGE |
| 9613442100 | 96134-42100 | Clip(For Water By-Pass Hose Assy) | Clip(For Water By-Pass Hose Assy) |
| 9613452100 | 96134-52100 | Clip(For Ventilation Hose) | Clip(For Ventilation Hose) |
| 9613842501 | 96138-42501 | Clip, Hose(For Radiator Hose Sub-Assy) | Clip, Hose(For Radiator Hose Sub-Assy) |
