Search › Compare › GRS196 × GSE26
GRS196
Lexus GS — 84 of 5,050 shared
GSE26
Lexus IS — 84 of 4,805 shared

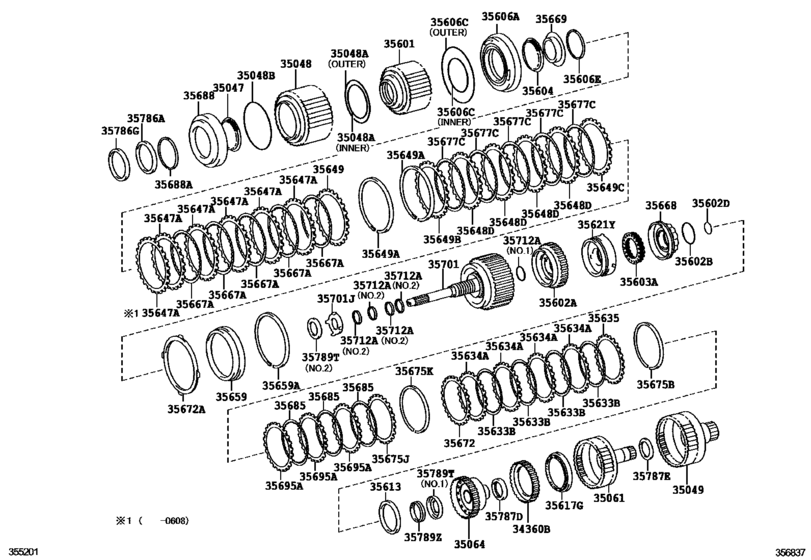

Brake Band & Multiple Disc Clutch (Atm) ([07.2009 - ] A760E,A760H (0501- )GRS190..GCC,GEN ; (0907- )GRS196) 84 / 85
| # | OEM | GRS196 | GSE26 |
|---|---|---|---|
| 34360 | 34360-50010 | Clutch Assy, Underdrive 1 Way | Clutch Assy, Underdrive 1 Way |
| 35047 | 35047-60010 | Spring Sub-Assy, Reverse Clutch Return | Spring Sub-Assy, Reverse Clutch Return |
| 35048 | 35048-60010 | Piston Sub-Assy, Reverse Clutch | Piston Sub-Assy, Reverse Clutch |
| 35048 | 90301-99141 | Ring, O (For Reverse Clutch Piston) | Ring, O (For Reverse Clutch Piston) |
| 35048 | 90301-99147 | Ring, O (For Reverse Clutch Piston) | Ring, O (For Reverse Clutch Piston) |
| 35048 | 90301-99140 | Ring, O (For Reverse Clutch Piston) | Ring, O (For Reverse Clutch Piston) |
| 35049 | 35049-30020 | Hub Sub-Assy, Reverse Clutch | Hub Sub-Assy, Reverse Clutch |
| 35061 | 35061-50010 | Hub Sub-Assy, Forward Clutch | Hub Sub-Assy, Forward Clutch |
| 35064 | 35064-50010 | Hub Sub-Assy, Coast Clutch | Hub Sub-Assy, Coast Clutch |
| 35601 | 35601-50030 | Drum Sub-Assy, Clutch | Drum Sub-Assy, Clutch |
| 35602 | 35602-34020 | Piston Sub-Assy, Forward Clutch | Piston Sub-Assy, Forward Clutch |
| 35602 | 90301-98004 | Ring, O (For Forward Clutch Piston) | Ring, O (For Forward Clutch Piston) |
| 35602 | 90520-35003 | Ring, Shaft Snap(For Forward Clutch Piston Return Spring) | Ring, Shaft Snap(For Forward Clutch Piston Return Spring) |
| 35603 | 35603-50030 | Spring Sub-Assy, Forward Clutch Return | Spring Sub-Assy, Forward Clutch Return |
| 35604 | 35604-60020 | Spring Sub-Assy, Direct Clutch Return | Spring Sub-Assy, Direct Clutch Return |
| 35606 | 35652-60021 | Piston Sub-Assy, Direct Clutch | Piston Sub-Assy, Direct Clutch |
| 35606 | 90301-74002 | Ring, O (For Overdrive Direct Cluch) | Ring, O (For Overdrive Direct Cluch) |
| 35606 | 90301-99149 | Ring, O (For Direct Clutch Piston) | Ring, O (For Direct Clutch Piston) |
| 35606 | 90520-64003 | Ring, Shaft Snap (For Direct Clutch Piston Return Spring) | Ring, Shaft Snap (For Direct Clutch Piston Return Spring) |
| 35613 | 35613-50011 | Ring, Clutch Piston Oil Seal, Outer | Ring, Clutch Piston Oil Seal, Outer |
| 35617 | 35614-50010 | Ring, Clutch Drum Oil Seal | Ring, Clutch Drum Oil Seal |
| 35621 | 35621-50010 | Piston, Coast Clutch | Piston, Coast Clutch |
| 35633 | 35633-50010 | Disc, Clutch (For Forward Multiple Disc Clutch) | Disc, Clutch (For Forward Multiple Disc Clutch) |
| 35634 | 35634-50010 | Plate, Clutch (For Forward Multiple Disc Clutch) | Plate, Clutch (For Forward Multiple Disc Clutch) |
| 35635 | 35635-60010 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60020 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60030 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60040 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60050 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60060 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60070 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60080 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60090 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60100 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60110 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35647 | 35647-60010 | Plate, Clutch (For Direct Multiple Disc Clutch) | Plate, Clutch (For Direct Multiple Disc Clutch) |
| 35648 | 35648-50010 | Plate, Clutch, No.3 | Plate, Clutch, No.3 |
| 35649 | 35649-60030 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60040 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60050 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60060 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60070 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60080 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60090 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60100 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60110 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 90520-99074 | Ring, Hole Snap(For Reverse Clutch Flange) | Ring, Hole Snap(For Reverse Clutch Flange) |
| 35649 | 35649-60010 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60020 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35659 | 35659-60020 | Sleeve, Reverse Clutch Reaction | Sleeve, Reverse Clutch Reaction |
| 35659 | 90520-99083 | Ring, Snap (For Reverse Clutch Reaction Sleeve) | Ring, Snap (For Reverse Clutch Reaction Sleeve) |
| 35667 | 35667-60020 | Disk, Direct Clutch | Disk, Direct Clutch |
| 35668 | 35668-50010 | Balancer, Clutch, No.1 | Balancer, Clutch, No.1 |
| 35669 | 35669-60010 | Balancer, Clutch, No.2 | Balancer, Clutch, No.2 |
| 35672 | 35672-50040 | Plate, Clutch Cushion | Plate, Clutch Cushion |
| 35672 | 35672-60020 | Plate, Clutch Cushion (For Direct Multiple Disc Clutch) | Plate, Clutch Cushion (For Direct Multiple Disc Clutch) |
| 35675 | 90520-99082 | Ring, Hole Snap (For Forward Clutch Flange) | Ring, Hole Snap (For Forward Clutch Flange) |
| 35675 | 35675-50010 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50020 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50030 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50040 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50050 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50060 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50070 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50080 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50090 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50100 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 90520-99089 | Ring, Snap (For Coast Clutch Flange) | Ring, Snap (For Coast Clutch Flange) |
| 35677 | 35677-50050 | Disc, Rear Clutch | Disc, Rear Clutch |
| 35685 | 35685-50010 | Disc, Coast Clutch | Disc, Coast Clutch |
| 35688 | 35688-50010 | Balancer, Clutch, No.3 | Balancer, Clutch, No.3 |
| 35688 | 90520-79001 | Ring, Snap (For Reverse Clutch Return Spring) | Ring, Snap (For Reverse Clutch Return Spring) |
| 35695 | 35695-50010 | Plate, Coast Clutch | Plate, Coast Clutch |
| 35701 | 35701-30131 | Shaft Sub-Assy, Input | Shaft Sub-Assy, Input |
| 35701 | 90374-34011 | Bearing, Thrust Needle Roller (For Input Shaft Front) | Bearing, Thrust Needle Roller (For Input Shaft Front) |
| 35712 | 35712-60010 | Ring, Input Shaft Oil Seal | Ring, Input Shaft Oil Seal |
| 35712 | 90301-33017 | Ring, O (For Forward Clutch Piston) - O(FOR FORWARD CLUTCH PISTON INNER) | Ring, O (For Forward Clutch Piston) - O(FOR FORWARD CLUTCH PISTON INNER) |
| 35786 | 35786-60010 | Race, Thrust Bearing, No.1 | Race, Thrust Bearing, No.1 |
| 35786 | 90374-71001 | Bearing, Thrust Needle Roller (For Front Planetary Gear) | Bearing, Thrust Needle Roller (For Front Planetary Gear) |
| 35787 | 90374-35006 | Bearing, Thrust Needle Roller | Bearing, Thrust Needle Roller |
| 35787 | 90374-42008 | Bearing, Thrust Needle Roller | Bearing, Thrust Needle Roller |
| 35789 | 35789-50050 | Race, Thrust Bearing (Input Shaft Rear) | Race, Thrust Bearing (Input Shaft Rear) |
| 35789 | 35789-50060 | Race, Thrust Bearing (For Input Shaft Front) | Race, Thrust Bearing (For Input Shaft Front) |
| 35789 | 90374-21004 | Bearing, Thrust Needle Roller | Bearing, Thrust Needle Roller |
| # | OEM | GRS196 | GSE26 |
|---|---|---|---|
| 34360 | 34360-50010 | Clutch Assy, Underdrive 1 Way | Clutch Assy, Underdrive 1 Way |
| 35047 | 35047-60010 | Spring Sub-Assy, Reverse Clutch Return | Spring Sub-Assy, Reverse Clutch Return |
| 35048 | 35048-60010 | Piston Sub-Assy, Reverse Clutch | Piston Sub-Assy, Reverse Clutch |
| 35049 | 35049-30020 | Hub Sub-Assy, Reverse Clutch | Hub Sub-Assy, Reverse Clutch |
| 35061 | 35061-50010 | Hub Sub-Assy, Forward Clutch | Hub Sub-Assy, Forward Clutch |
| 35064 | 35064-50010 | Hub Sub-Assy, Coast Clutch | Hub Sub-Assy, Coast Clutch |
| 35601 | 35601-50030 | Drum Sub-Assy, Clutch | Drum Sub-Assy, Clutch |
| 35602 | 35602-34020 | Piston Sub-Assy, Forward Clutch | Piston Sub-Assy, Forward Clutch |
| 35603 | 35603-50030 | Spring Sub-Assy, Forward Clutch Return | Spring Sub-Assy, Forward Clutch Return |
| 35604 | 35604-60020 | Spring Sub-Assy, Direct Clutch Return | Spring Sub-Assy, Direct Clutch Return |
| 35613 | 35613-50011 | Ring, Clutch Piston Oil Seal, Outer | Ring, Clutch Piston Oil Seal, Outer |
| 35617 | 35614-50010 | Ring, Clutch Drum Oil Seal | Ring, Clutch Drum Oil Seal |
| 35621 | 35621-50010 | Piston, Coast Clutch | Piston, Coast Clutch |
| 35633 | 35633-50010 | Disc, Clutch (For Forward Multiple Disc Clutch) | Disc, Clutch (For Forward Multiple Disc Clutch) |
| 35634 | 35634-50010 | Plate, Clutch (For Forward Multiple Disc Clutch) | Plate, Clutch (For Forward Multiple Disc Clutch) |
| 35635 | 35635-60010 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60020 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60030 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60040 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60050 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60060 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60070 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60080 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60090 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60100 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35635 | 35635-60110 | Flange, Forward Clutch | Flange, Forward Clutch |
| 35647 | 35647-60010 | Plate, Clutch (For Direct Multiple Disc Clutch) | Plate, Clutch (For Direct Multiple Disc Clutch) |
| 35648 | 35648-50010 | Plate, Clutch, No.3 | Plate, Clutch, No.3 |
| 35649 | 35649-60010 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60020 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60030 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60040 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60050 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60060 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60070 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60080 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60090 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60100 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35649 | 35649-60110 | Flange, Reverse Clutch | Flange, Reverse Clutch |
| 35606 | 35652-60021 | Piston Sub-Assy, Direct Clutch | Piston Sub-Assy, Direct Clutch |
| 35659 | 35659-60020 | Sleeve, Reverse Clutch Reaction | Sleeve, Reverse Clutch Reaction |
| 35667 | 35667-60020 | Disk, Direct Clutch | Disk, Direct Clutch |
| 35668 | 35668-50010 | Balancer, Clutch, No.1 | Balancer, Clutch, No.1 |
| 35669 | 35669-60010 | Balancer, Clutch, No.2 | Balancer, Clutch, No.2 |
| 35672 | 35672-50040 | Plate, Clutch Cushion | Plate, Clutch Cushion |
| 35672 | 35672-60020 | Plate, Clutch Cushion (For Direct Multiple Disc Clutch) | Plate, Clutch Cushion (For Direct Multiple Disc Clutch) |
| 35675 | 35675-50010 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50020 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50030 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50040 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50050 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50060 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50070 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50080 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50090 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35675 | 35675-50100 | Flange, Coast Clutch | Flange, Coast Clutch |
| 35677 | 35677-50050 | Disc, Rear Clutch | Disc, Rear Clutch |
| 35685 | 35685-50010 | Disc, Coast Clutch | Disc, Coast Clutch |
| 35688 | 35688-50010 | Balancer, Clutch, No.3 | Balancer, Clutch, No.3 |
| 35695 | 35695-50010 | Plate, Coast Clutch | Plate, Coast Clutch |
| 35701 | 35701-30131 | Shaft Sub-Assy, Input | Shaft Sub-Assy, Input |
| 35712 | 35712-60010 | Ring, Input Shaft Oil Seal | Ring, Input Shaft Oil Seal |
| 35786 | 35786-60010 | Race, Thrust Bearing, No.1 | Race, Thrust Bearing, No.1 |
| 35789 | 35789-50050 | Race, Thrust Bearing (Input Shaft Rear) | Race, Thrust Bearing (Input Shaft Rear) |
| 35789 | 35789-50060 | Race, Thrust Bearing (For Input Shaft Front) | Race, Thrust Bearing (For Input Shaft Front) |
| 35712 | 90301-33017 | Ring, O (For Forward Clutch Piston) - O(FOR FORWARD CLUTCH PISTON INNER) | Ring, O (For Forward Clutch Piston) - O(FOR FORWARD CLUTCH PISTON INNER) |
| 35606 | 90301-74002 | Ring, O (For Overdrive Direct Cluch) | Ring, O (For Overdrive Direct Cluch) |
| 35602 | 90301-98004 | Ring, O (For Forward Clutch Piston) | Ring, O (For Forward Clutch Piston) |
| 35048 | 90301-99140 | Ring, O (For Reverse Clutch Piston) | Ring, O (For Reverse Clutch Piston) |
| 35048 | 90301-99141 | Ring, O (For Reverse Clutch Piston) | Ring, O (For Reverse Clutch Piston) |
| 35048 | 90301-99147 | Ring, O (For Reverse Clutch Piston) | Ring, O (For Reverse Clutch Piston) |
| 35606 | 90301-99149 | Ring, O (For Direct Clutch Piston) | Ring, O (For Direct Clutch Piston) |
| 35789 | 90374-21004 | Bearing, Thrust Needle Roller | Bearing, Thrust Needle Roller |
| 35701 | 90374-34011 | Bearing, Thrust Needle Roller (For Input Shaft Front) | Bearing, Thrust Needle Roller (For Input Shaft Front) |
| 35787 | 90374-35006 | Bearing, Thrust Needle Roller | Bearing, Thrust Needle Roller |
| 35787 | 90374-42008 | Bearing, Thrust Needle Roller | Bearing, Thrust Needle Roller |
| 35786 | 90374-71001 | Bearing, Thrust Needle Roller (For Front Planetary Gear) | Bearing, Thrust Needle Roller (For Front Planetary Gear) |
| 35602 | 90520-35003 | Ring, Shaft Snap(For Forward Clutch Piston Return Spring) | Ring, Shaft Snap(For Forward Clutch Piston Return Spring) |
| 35606 | 90520-64003 | Ring, Shaft Snap (For Direct Clutch Piston Return Spring) | Ring, Shaft Snap (For Direct Clutch Piston Return Spring) |
| 35688 | 90520-79001 | Ring, Snap (For Reverse Clutch Return Spring) | Ring, Snap (For Reverse Clutch Return Spring) |
| 35649 | 90520-99074 | Ring, Hole Snap(For Reverse Clutch Flange) | Ring, Hole Snap(For Reverse Clutch Flange) |
| 35675 | 90520-99082 | Ring, Hole Snap (For Forward Clutch Flange) | Ring, Hole Snap (For Forward Clutch Flange) |
| 35659 | 90520-99083 | Ring, Snap (For Reverse Clutch Reaction Sleeve) | Ring, Snap (For Reverse Clutch Reaction Sleeve) |
| 35675 | 90520-99089 | Ring, Snap (For Coast Clutch Flange) | Ring, Snap (For Coast Clutch Flange) |
