Search › Compare › GRN280 × GRN285
GRN280
Toyota HILUX-SURF-4RUNNER — 49 of 5,984 shared
GRN285
Toyota HILUX-SURF-4RUNNER — 49 of 5,630 shared

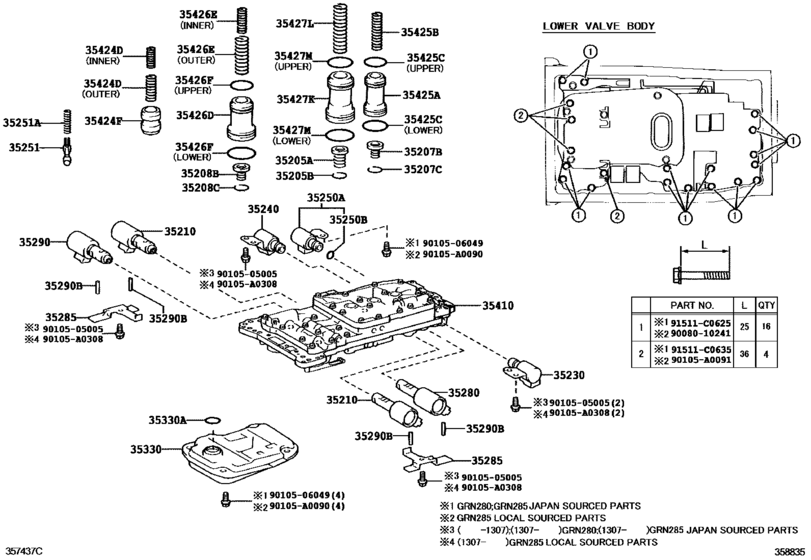

Valve Body & Oil Strainer (Atm) ([08.2009 - ] A750E,A750F (0908- )GRN28#) 49 / 49
| # | OEM | GRN280 | GRN285 |
|---|---|---|---|
| 35205 | 35205-60010 | Spring Sub-Assy, B-3 Accumulator | Spring Sub-Assy, B-3 Accumulator |
| 35205 | 90521-22004 | Ring, Hole Snap (For B-3 Accumulator Spring) | Ring, Hole Snap (For B-3 Accumulator Spring) |
| 35207 | 35207-22010 | Spring Sub-Assy, B-0 Accumulator | Spring Sub-Assy, B-0 Accumulator |
| 35208 | 35208-60010 | Spring Sub-Assy, C-3 Accumulator | Spring Sub-Assy, C-3 Accumulator |
| 35210 | 35210-50010 | Solenoid Assy, Clutch Control, No.1 | Solenoid Assy, Clutch Control, No.1 |
| 35230 | 35230-60010 | Solenoid Assy, Transmission 3Way, No.2 | Solenoid Assy, Transmission 3Way, No.2 |
| 35240 | 35240-60020 | Solenoid Assy, Automatic Transmission 3Way | Solenoid Assy, Automatic Transmission 3Way |
| 35250 | 35250-60010 | Solenoid Assy, Transmission, No.3 | Solenoid Assy, Transmission, No.3 |
| 35250 | 90301-06004 | Ring, O No.3(For Transmission Solenoid) | Ring, O No.3(For Transmission Solenoid) |
| 35251 | 35251-30020 | Body, Check Ball | Body, Check Ball |
| 35251 | 90501-03005 | Spring, Compression (For Check Ball Body) | Spring, Compression (For Check Ball Body) |
| 35280 | 35280-30050 | Solenoid Assy, Lock Up Control | Solenoid Assy, Lock Up Control |
| 35285 | 35285-34010 | Plate, Solenoid Lock | Plate, Solenoid Lock |
| 35290 | 35290-34010 | Solenoid Assy, Line Pressure Control | Solenoid Assy, Line Pressure Control |
| 35290 | 90250-03045 | Pin, Straight (For Line Pressure Contorol Solenoid) | Pin, Straight (For Line Pressure Contorol Solenoid) |
| 35330 | 35330-60050 | Strainer Assy, Valve Body Oil | Strainer Assy, Valve Body Oil |
| 35330 | 90301-31014 | O-ring (For Oil Strainer) | O-ring (For Oil Strainer) |
| 35410 | 35410-60620 | Body Assy, Transmission Valve | Body Assy, Transmission Valve |
| 35410 | 35410-35880 | BODY ASSY, TRANSMISSION VALVE | BODY ASSY, TRANSMISSION VALVE |
| 35424 | 90501-20173 | Spring, Compression (For C-1 Accumulator Piston) | Spring, Compression (For C-1 Accumulator Piston) |
| 35424 | 90501-21040 | Spring, Compression (For C-1 Accumulator Piston) | Spring, Compression (For C-1 Accumulator Piston) |
| 35424 | 35424-60030 | Valve, C-1 Accumulator | Valve, C-1 Accumulator |
| 35425 | 35425-50020 | Piston, C-2 Accumulator | Piston, C-2 Accumulator |
| 35425 | 90501-22062 | Spring, Compression (For C-2 Accumulator Piston) | Spring, Compression (For C-2 Accumulator Piston) |
| 35425 | 90301-20008 | Ring, O (For C-2 Accumulator Piston) | Ring, O (For C-2 Accumulator Piston) |
| 35425 | 90301-28008 | Ring, O (For C-2 Accumulator Piston) | Ring, O (For C-2 Accumulator Piston) |
| 35426 | 35426-50020 | Piston, C-3 Accumulator | Piston, C-3 Accumulator |
| 35426 | 90501-24038 | Spring, Compression (For C-3 Accumulator Piston) | Spring, Compression (For C-3 Accumulator Piston) |
| 35426 | 90501-25028 | Spring, Compression (For B-2 Accumulator Piston) | Spring, Compression (For B-2 Accumulator Piston) |
| 35426 | 90301-26011 | Ring, O (For C-3 Accumulator Piston) | Ring, O (For C-3 Accumulator Piston) |
| 35426 | 90301-34011 | Ring, O (For C-3 Accumulator Piston) | Ring, O (For C-3 Accumulator Piston) |
| 35427 | 35427-50020 | Piston, B-3 Accumulator | Piston, B-3 Accumulator |
| 35427 | 90501-27036 | Spring, Compression (For C-2 Accumulator Piston) | Spring, Compression (For C-2 Accumulator Piston) |
| 35427 | 90301-23010 | Ring (For Accumulator Piston No.1) | Ring (For Accumulator Piston No.1) |
| 35481 | 35481-60010 | Clamp, Valve Body Wire Harness | Clamp, Valve Body Wire Harness |
| 35482 | 35482-60040 | Clamp, Temperature Sensor | Clamp, Temperature Sensor |
| 82125 | 82125-60650 | Wire, Transmission | Wire, Transmission |
| 82125 | 82125-60651 | WIRE, TRANSMISSION | WIRE, TRANSMISSION |
| 82125 | 90301-21009 | Ring, O(For Transmission Wire) | Ring, O(For Transmission Wire) |
| 90105 | 90105-A0090 | New Genuine Part | New Genuine Part |
| 90105 | 90105-A0091 | New Genuine Part | New Genuine Part |
| 90105 | 90105-A0308 | New Genuine Part | New Genuine Part |
| 91511 | 91511-C0625 | Bolt(For Cylinder Head Cover) | Bolt(For Cylinder Head Cover) |
| 91511 | 91551-A0625 | Bolt(For Cylinder Head Cover) | Bolt(For Cylinder Head Cover) |
| 91511 | 91511-C0635 | BOLT, FLANGE | BOLT, FLANGE |
| 91611 | 91611-B0616 | Bolt(For Transaxle Case Receiver) | Bolt(For Transaxle Case Receiver) |
| 9008010241 | 90080-10241 | New Genuine Part | New Genuine Part |
| 9010505005 | 90105-05005 | Bolt (For Transfer Relief Valve Plate) | Bolt (For Transfer Relief Valve Plate) |
| 9010506049 | 90105-06049 | Bolt(For Transmission Case No.2 Plate) | Bolt(For Transmission Case No.2 Plate) |
| # | OEM | GRN280 | GRN285 |
|---|---|---|---|
| 35205 | 35205-60010 | Spring Sub-Assy, B-3 Accumulator | Spring Sub-Assy, B-3 Accumulator |
| 35207 | 35207-22010 | Spring Sub-Assy, B-0 Accumulator | Spring Sub-Assy, B-0 Accumulator |
| 35208 | 35208-60010 | Spring Sub-Assy, C-3 Accumulator | Spring Sub-Assy, C-3 Accumulator |
| 35210 | 35210-50010 | Solenoid Assy, Clutch Control, No.1 | Solenoid Assy, Clutch Control, No.1 |
| 35230 | 35230-60010 | Solenoid Assy, Transmission 3Way, No.2 | Solenoid Assy, Transmission 3Way, No.2 |
| 35240 | 35240-60020 | Solenoid Assy, Automatic Transmission 3Way | Solenoid Assy, Automatic Transmission 3Way |
| 35250 | 35250-60010 | Solenoid Assy, Transmission, No.3 | Solenoid Assy, Transmission, No.3 |
| 35251 | 35251-30020 | Body, Check Ball | Body, Check Ball |
| 35280 | 35280-30050 | Solenoid Assy, Lock Up Control | Solenoid Assy, Lock Up Control |
| 35285 | 35285-34010 | Plate, Solenoid Lock | Plate, Solenoid Lock |
| 35290 | 35290-34010 | Solenoid Assy, Line Pressure Control | Solenoid Assy, Line Pressure Control |
| 35330 | 35330-60050 | Strainer Assy, Valve Body Oil | Strainer Assy, Valve Body Oil |
| 35410 | 35410-35880 | BODY ASSY, TRANSMISSION VALVE | BODY ASSY, TRANSMISSION VALVE |
| 35410 | 35410-60620 | Body Assy, Transmission Valve | Body Assy, Transmission Valve |
| 35424 | 35424-60030 | Valve, C-1 Accumulator | Valve, C-1 Accumulator |
| 35425 | 35425-50020 | Piston, C-2 Accumulator | Piston, C-2 Accumulator |
| 35426 | 35426-50020 | Piston, C-3 Accumulator | Piston, C-3 Accumulator |
| 35427 | 35427-50020 | Piston, B-3 Accumulator | Piston, B-3 Accumulator |
| 35481 | 35481-60010 | Clamp, Valve Body Wire Harness | Clamp, Valve Body Wire Harness |
| 35482 | 35482-60040 | Clamp, Temperature Sensor | Clamp, Temperature Sensor |
| 82125 | 82125-60650 | Wire, Transmission | Wire, Transmission |
| 82125 | 82125-60651 | WIRE, TRANSMISSION | WIRE, TRANSMISSION |
| 9008010241 | 90080-10241 | New Genuine Part | New Genuine Part |
| 9010505005 | 90105-05005 | Bolt (For Transfer Relief Valve Plate) | Bolt (For Transfer Relief Valve Plate) |
| 9010506049 | 90105-06049 | Bolt(For Transmission Case No.2 Plate) | Bolt(For Transmission Case No.2 Plate) |
| 90105 | 90105-A0090 | New Genuine Part | New Genuine Part |
| 90105 | 90105-A0091 | New Genuine Part | New Genuine Part |
| 90105 | 90105-A0308 | New Genuine Part | New Genuine Part |
| 35290 | 90250-03045 | Pin, Straight (For Line Pressure Contorol Solenoid) | Pin, Straight (For Line Pressure Contorol Solenoid) |
| 35250 | 90301-06004 | Ring, O No.3(For Transmission Solenoid) | Ring, O No.3(For Transmission Solenoid) |
| 35425 | 90301-20008 | Ring, O (For C-2 Accumulator Piston) | Ring, O (For C-2 Accumulator Piston) |
| 82125 | 90301-21009 | Ring, O(For Transmission Wire) | Ring, O(For Transmission Wire) |
| 35427 | 90301-23010 | Ring (For Accumulator Piston No.1) | Ring (For Accumulator Piston No.1) |
| 35426 | 90301-26011 | Ring, O (For C-3 Accumulator Piston) | Ring, O (For C-3 Accumulator Piston) |
| 35425 | 90301-28008 | Ring, O (For C-2 Accumulator Piston) | Ring, O (For C-2 Accumulator Piston) |
| 35330 | 90301-31014 | O-ring (For Oil Strainer) | O-ring (For Oil Strainer) |
| 35426 | 90301-34011 | Ring, O (For C-3 Accumulator Piston) | Ring, O (For C-3 Accumulator Piston) |
| 35251 | 90501-03005 | Spring, Compression (For Check Ball Body) | Spring, Compression (For Check Ball Body) |
| 35424 | 90501-20173 | Spring, Compression (For C-1 Accumulator Piston) | Spring, Compression (For C-1 Accumulator Piston) |
| 35424 | 90501-21040 | Spring, Compression (For C-1 Accumulator Piston) | Spring, Compression (For C-1 Accumulator Piston) |
| 35425 | 90501-22062 | Spring, Compression (For C-2 Accumulator Piston) | Spring, Compression (For C-2 Accumulator Piston) |
| 35426 | 90501-24038 | Spring, Compression (For C-3 Accumulator Piston) | Spring, Compression (For C-3 Accumulator Piston) |
| 35426 | 90501-25028 | Spring, Compression (For B-2 Accumulator Piston) | Spring, Compression (For B-2 Accumulator Piston) |
| 35427 | 90501-27036 | Spring, Compression (For C-2 Accumulator Piston) | Spring, Compression (For C-2 Accumulator Piston) |
| 35205 | 90521-22004 | Ring, Hole Snap (For B-3 Accumulator Spring) | Ring, Hole Snap (For B-3 Accumulator Spring) |
| 91511 | 91511-C0625 | Bolt(For Cylinder Head Cover) | Bolt(For Cylinder Head Cover) |
| 91511 | 91511-C0635 | BOLT, FLANGE | BOLT, FLANGE |
| 91511 | 91551-A0625 | Bolt(For Cylinder Head Cover) | Bolt(For Cylinder Head Cover) |
| 91611 | 91611-B0616 | Bolt(For Transaxle Case Receiver) | Bolt(For Transaxle Case Receiver) |
