GRN280
Toyota HILUX-SURF-4RUNNER — 36 of 5,984 shared
GRN285
Toyota HILUX-SURF-4RUNNER — 36 of 5,630 shared

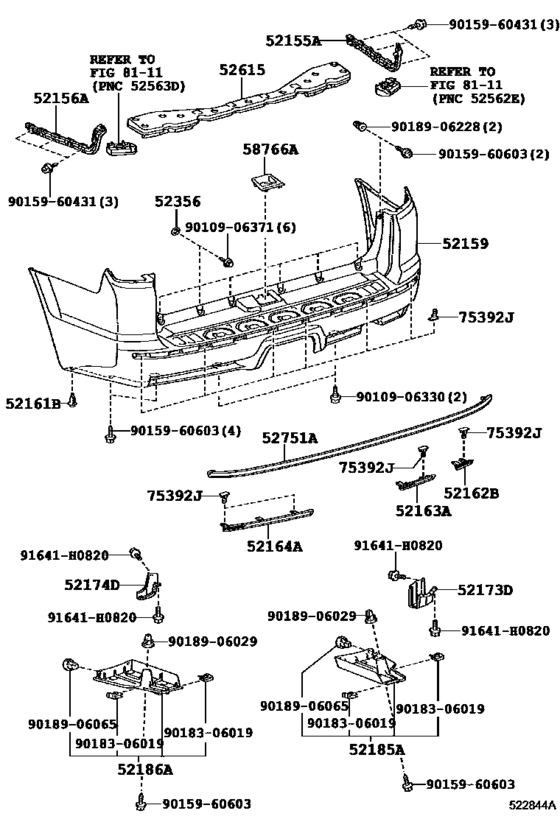

Rear Bumper & Bumper Stay ([08.2013 - ] LIMITED PACKAGE (1308- )) 36 / 40
| # | OEM | GRN280 | GRN285 |
|---|---|---|---|
| 52155 | 52155-35040 | Support, Rear Bumper Side, Rh | Support, Rear Bumper Side, Rh |
| 52155 | 52155-35050 | Support, Rear Bumper Side, Rh | Support, Rear Bumper Side, Rh |
| 52156 | 52156-35040 | Support, Rear Bumper Side, Lh | Support, Rear Bumper Side, Lh |
| 52156 | 52156-35050 | Support, Rear Bumper Side, Lh | Support, Rear Bumper Side, Lh |
| 52159 | 52159-35907 | Cover, Rear Bumper | Cover, Rear Bumper |
| 52159 | 52159-35912 | Cover, Rear Bumper | Cover, Rear Bumper |
| 52159 | 52159-35919 | Cover, Rear Bumper | Cover, Rear Bumper |
| 52159 | 52159-35922 | Cover, Rear Bumper | Cover, Rear Bumper |
| 52161 | 90467-09227 | Clip, Engine Under Cover, No.2 | Clip, Engine Under Cover, No.2 |
| 52162 | 52162-35030 | Plate, Rear Bumper, No.1 | Plate, Rear Bumper, No.1 |
| 52163 | 52163-35050 | Plate, Rear Bumper, Rh | Plate, Rear Bumper, Rh |
| 52164 | 52164-35050 | Plate, Rear Bumper, Lh | Plate, Rear Bumper, Lh |
| 52173 | 52173-35090 | Reinforcement, Rear Bumper Bar, Rh | Reinforcement, Rear Bumper Bar, Rh |
| 52173 | 52173-35100 | Reinforcement, Rear Bumper Bar, Rh | Reinforcement, Rear Bumper Bar, Rh |
| 52174 | 52174-35090 | Reinforcement, Rear Bumper Bar, Lh | Reinforcement, Rear Bumper Bar, Lh |
| 52174 | 52174-35100 | Reinforcement, Rear Bumper Bar, Lh | Reinforcement, Rear Bumper Bar, Lh |
| 52185 | 53723-35030 | Bracket, Rear Bumper Side, Rh | Bracket, Rear Bumper Side, Rh |
| 52185 | 53723-35040 | Bracket, Rear Bumper Side, Rh | Bracket, Rear Bumper Side, Rh |
| 52185 | 53723-35050 | Bracket, Rear Bumper Side, Rh | Bracket, Rear Bumper Side, Rh |
| 52186 | 53724-35020 | Bracket, Rear Bumper Side, Lh | Bracket, Rear Bumper Side, Lh |
| 52186 | 53724-35030 | Bracket, Rear Bumper Side, Lh | Bracket, Rear Bumper Side, Lh |
| 52186 | 53724-35040 | Bracket, Rear Bumper Side, Lh | Bracket, Rear Bumper Side, Lh |
| 52356 | 52356-60050 | Cushion, Rear Bumper Step | Cushion, Rear Bumper Step |
| 52615 | 52615-35050 | Absorber, Rear Bumper Energy | Absorber, Rear Bumper Energy |
| 52751 | 52751-35010 | Moulding, Rear Bumper, Center | Moulding, Rear Bumper, Center |
| 58766 | 58766-35010 | Cover, Jack Box Hole | Cover, Jack Box Hole |
| 75392 | 75392-35200 | Retainer | Retainer |
| 91641 | 91641-H0820 | Bolt | Bolt |
| 9010906330 | 90109-06330 | BOLT | BOLT |
| 9010906371 | 90109-06371 | BOLT | BOLT |
| 9015960431 | 90159-60431 | SCREW | SCREW |
| 9015960603 | 90159-60603 | SCREW WITH-WASHER | SCREW WITH-WASHER |
| 9018306019 | 90183-06019 | Clip, Outside Moulding, No.1 | Clip, Outside Moulding, No.1 |
| 9018906029 | 90189-06029 | GROMMET | GROMMET |
| 9018906065 | 90189-06065 | CLIP | CLIP |
| 9018906228 | 90189-06228 | Grommet(For Rear Bumper) | Grommet(For Rear Bumper) |
| # | OEM | GRN280 | GRN285 |
|---|---|---|---|
| 52155 | 52155-35040 | Support, Rear Bumper Side, Rh | Support, Rear Bumper Side, Rh |
| 52155 | 52155-35050 | Support, Rear Bumper Side, Rh | Support, Rear Bumper Side, Rh |
| 52156 | 52156-35040 | Support, Rear Bumper Side, Lh | Support, Rear Bumper Side, Lh |
| 52156 | 52156-35050 | Support, Rear Bumper Side, Lh | Support, Rear Bumper Side, Lh |
| 52159 | 52159-35907 | Cover, Rear Bumper | Cover, Rear Bumper |
| 52159 | 52159-35912 | Cover, Rear Bumper | Cover, Rear Bumper |
| 52159 | 52159-35919 | Cover, Rear Bumper | Cover, Rear Bumper |
| 52159 | 52159-35922 | Cover, Rear Bumper | Cover, Rear Bumper |
| 52162 | 52162-35030 | Plate, Rear Bumper, No.1 | Plate, Rear Bumper, No.1 |
| 52163 | 52163-35050 | Plate, Rear Bumper, Rh | Plate, Rear Bumper, Rh |
| 52164 | 52164-35050 | Plate, Rear Bumper, Lh | Plate, Rear Bumper, Lh |
| 52173 | 52173-35090 | Reinforcement, Rear Bumper Bar, Rh | Reinforcement, Rear Bumper Bar, Rh |
| 52173 | 52173-35100 | Reinforcement, Rear Bumper Bar, Rh | Reinforcement, Rear Bumper Bar, Rh |
| 52174 | 52174-35090 | Reinforcement, Rear Bumper Bar, Lh | Reinforcement, Rear Bumper Bar, Lh |
| 52174 | 52174-35100 | Reinforcement, Rear Bumper Bar, Lh | Reinforcement, Rear Bumper Bar, Lh |
| 52356 | 52356-60050 | Cushion, Rear Bumper Step | Cushion, Rear Bumper Step |
| 52615 | 52615-35050 | Absorber, Rear Bumper Energy | Absorber, Rear Bumper Energy |
| 52751 | 52751-35010 | Moulding, Rear Bumper, Center | Moulding, Rear Bumper, Center |
| 52185 | 53723-35030 | Bracket, Rear Bumper Side, Rh | Bracket, Rear Bumper Side, Rh |
| 52185 | 53723-35040 | Bracket, Rear Bumper Side, Rh | Bracket, Rear Bumper Side, Rh |
| 52185 | 53723-35050 | Bracket, Rear Bumper Side, Rh | Bracket, Rear Bumper Side, Rh |
| 52186 | 53724-35020 | Bracket, Rear Bumper Side, Lh | Bracket, Rear Bumper Side, Lh |
| 52186 | 53724-35030 | Bracket, Rear Bumper Side, Lh | Bracket, Rear Bumper Side, Lh |
| 52186 | 53724-35040 | Bracket, Rear Bumper Side, Lh | Bracket, Rear Bumper Side, Lh |
| 58766 | 58766-35010 | Cover, Jack Box Hole | Cover, Jack Box Hole |
| 75392 | 75392-35200 | Retainer | Retainer |
| 9010906330 | 90109-06330 | BOLT | BOLT |
| 9010906371 | 90109-06371 | BOLT | BOLT |
| 9015960431 | 90159-60431 | SCREW | SCREW |
| 9015960603 | 90159-60603 | SCREW WITH-WASHER | SCREW WITH-WASHER |
| 9018306019 | 90183-06019 | Clip, Outside Moulding, No.1 | Clip, Outside Moulding, No.1 |
| 9018906029 | 90189-06029 | GROMMET | GROMMET |
| 9018906065 | 90189-06065 | CLIP | CLIP |
| 9018906228 | 90189-06228 | Grommet(For Rear Bumper) | Grommet(For Rear Bumper) |
| 9046709227 | 90467-09227 | Clip, Engine Under Cover, No.2 | Clip, Engine Under Cover, No.2 |
| 91641 | 91641-H0820 | Bolt | Bolt |
