Search › Compare › GRN280 × GRN285
GRN280
Toyota HILUX-SURF-4RUNNER — 35 of 5,984 shared
GRN285
Toyota HILUX-SURF-4RUNNER — 35 of 5,630 shared

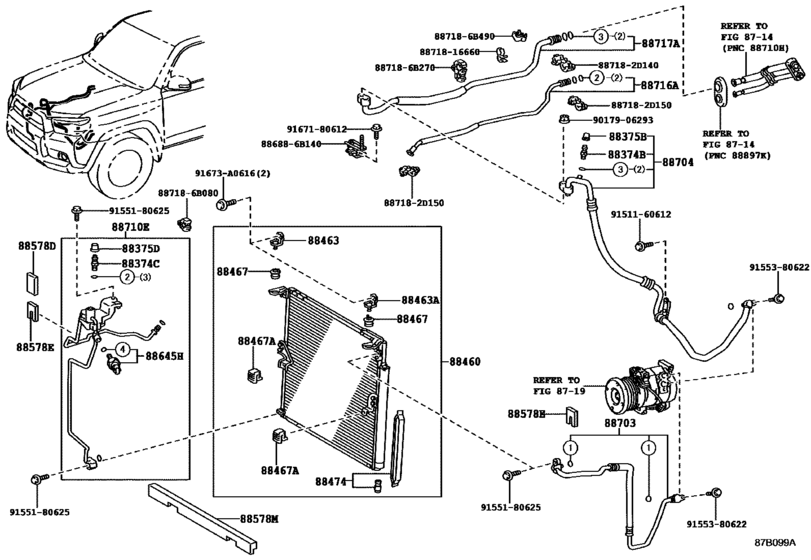

Heating & Air Conditioning - Cooler Piping ([08.2009 - ] (0908- )) 35 / 35
| # | OEM | GRN280 | GRN285 |
|---|---|---|---|
| 88374 | 88374-30010 | Valve, Service, No.1 | Valve, Service, No.1 |
| 88375 | 88375-30290 | Cap, Service Valve (For Cooler Pipe) | Cap, Service Valve (For Cooler Pipe) |
| 88375 | 88375-30280 | Cap, Service Valve (For Cooler Pipe) | Cap, Service Valve (For Cooler Pipe) |
| 88460 | 88460-60430 | Condenser Assy, Cooler | Condenser Assy, Cooler |
| 88463 | 88463-60010 | Bracket, Cooler Condenser, No.1 | Bracket, Cooler Condenser, No.1 |
| 88463 | 88463-60020 | Bracket, Cooler Condenser, No.2 | Bracket, Cooler Condenser, No.2 |
| 88467 | 88467-28050 | Cushion, Cooler Condenser, No.1 | Cushion, Cooler Condenser, No.1 |
| 88467 | 88467-35080 | Cushion, Cooler Condenser, No.1 | Cushion, Cooler Condenser, No.1 |
| 88474 | 88474-17010 | Dryer, Cooler | Dryer, Cooler |
| 88578 | 88578-60460 | Packing, Cooler Pipe, No.1 | Packing, Cooler Pipe, No.1 |
| 88578 | 88578-60550 | Packing, Cooler Pipe, No.1 | Packing, Cooler Pipe, No.1 |
| 88578 | 88578-60461 | Packing, Cooler Pipe, No.1 | Packing, Cooler Pipe, No.1 |
| 88578 | 88578-60470 | Packing, Cooler Pipe, No.2 | Packing, Cooler Pipe, No.2 |
| 88578 | 88578-60471 | Packing, Cooler Pipe, No.2 | Packing, Cooler Pipe, No.2 |
| 88578 | 88578-60540 | Packing, Cooler Pipe, No.2 | Packing, Cooler Pipe, No.2 |
| 88578 | 88578-60480 | Packing, Cooling Pipe, No.3 | Packing, Cooling Pipe, No.3 |
| 88645 | 88645-26030 | Switch, Pressure No.1 | Switch, Pressure No.1 |
| 88703 | 88703-60230 | Hose Sub-Assy, Discharge | Hose Sub-Assy, Discharge |
| 88704 | 88704-60450 | Hose Sub-Assy, Suction | Hose Sub-Assy, Suction |
| 88710 | 88710-60B10 | Tube Assy, Air Conditioner - AIRCONDITIONER | Tube Assy, Air Conditioner - AIRCONDITIONER |
| 88716 | 88716-6C530 | Pipe, Cooler Refrigerant Liquid, A | Pipe, Cooler Refrigerant Liquid, A |
| 88717 | 88717-6B220 | Pipe, Cooler Refrigerant Suction, A | Pipe, Cooler Refrigerant Suction, A |
| 91673 | 91673-A0616 | BOLT, FLANGE | BOLT, FLANGE |
| 886886 | 88688-6B140 | Bracket, Cooler Condenser, No.1 | Bracket, Cooler Condenser, No.1 |
| 887182 | 88718-2D140 | Clamp(For Cooler Refrigerant Pipe), No.1 | Clamp(For Cooler Refrigerant Pipe), No.1 |
| 887182 | 88718-2D150 | Clamp(For Cooler Refrigerant Pipe), No.1 | Clamp(For Cooler Refrigerant Pipe), No.1 |
| 887186 | 88718-6B080 | Pipe, Cooler Refrigerant Suction, No.2 | Pipe, Cooler Refrigerant Suction, No.2 |
| 887186 | 88718-6B270 | Pipe, Cooler Refrigerant Suction, No.2 | Pipe, Cooler Refrigerant Suction, No.2 |
| 887186 | 88718-6B490 | Pipe, Cooler Refrigerant Suction, No.2 | Pipe, Cooler Refrigerant Suction, No.2 |
| 8871816660 | 88718-16660 | Pipe, Cooler Refrigerant Suction, No.2 | Pipe, Cooler Refrigerant Suction, No.2 |
| 9017906293 | 90179-06293 | NUT | NUT |
| 9151160612 | 91511-60612 | BOLT | BOLT |
| 9155180625 | 91551-80625 | Bolt(For Camshaft Housing Set) | Bolt(For Camshaft Housing Set) |
| 9155380622 | 91553-80622 | BOLT FLANGE | BOLT FLANGE |
| 9167180612 | 91671-80612 | Bolt | Bolt |
| # | OEM | GRN280 | GRN285 |
|---|---|---|---|
| 88374 | 88374-30010 | Valve, Service, No.1 | Valve, Service, No.1 |
| 88375 | 88375-30280 | Cap, Service Valve (For Cooler Pipe) | Cap, Service Valve (For Cooler Pipe) |
| 88375 | 88375-30290 | Cap, Service Valve (For Cooler Pipe) | Cap, Service Valve (For Cooler Pipe) |
| 88460 | 88460-60430 | Condenser Assy, Cooler | Condenser Assy, Cooler |
| 88463 | 88463-60010 | Bracket, Cooler Condenser, No.1 | Bracket, Cooler Condenser, No.1 |
| 88463 | 88463-60020 | Bracket, Cooler Condenser, No.2 | Bracket, Cooler Condenser, No.2 |
| 88467 | 88467-28050 | Cushion, Cooler Condenser, No.1 | Cushion, Cooler Condenser, No.1 |
| 88467 | 88467-35080 | Cushion, Cooler Condenser, No.1 | Cushion, Cooler Condenser, No.1 |
| 88474 | 88474-17010 | Dryer, Cooler | Dryer, Cooler |
| 88578 | 88578-60460 | Packing, Cooler Pipe, No.1 | Packing, Cooler Pipe, No.1 |
| 8857860461 | 88578-60461 | Packing, Cooler Pipe, No.1 | Packing, Cooler Pipe, No.1 |
| 88578 | 88578-60470 | Packing, Cooler Pipe, No.2 | Packing, Cooler Pipe, No.2 |
| 88578 | 88578-60471 | Packing, Cooler Pipe, No.2 | Packing, Cooler Pipe, No.2 |
| 88578 | 88578-60480 | Packing, Cooling Pipe, No.3 | Packing, Cooling Pipe, No.3 |
| 88578 | 88578-60540 | Packing, Cooler Pipe, No.2 | Packing, Cooler Pipe, No.2 |
| 8857860461 | 88578-60550 | Packing, Cooler Pipe, No.1 | Packing, Cooler Pipe, No.1 |
| 88645 | 88645-26030 | Switch, Pressure No.1 | Switch, Pressure No.1 |
| 886886 | 88688-6B140 | Bracket, Cooler Condenser, No.1 | Bracket, Cooler Condenser, No.1 |
| 88703 | 88703-60230 | Hose Sub-Assy, Discharge | Hose Sub-Assy, Discharge |
| 88704 | 88704-60450 | Hose Sub-Assy, Suction | Hose Sub-Assy, Suction |
| 88710 | 88710-60B10 | Tube Assy, Air Conditioner - AIRCONDITIONER | Tube Assy, Air Conditioner - AIRCONDITIONER |
| 88716 | 88716-6C530 | Pipe, Cooler Refrigerant Liquid, A | Pipe, Cooler Refrigerant Liquid, A |
| 88717 | 88717-6B220 | Pipe, Cooler Refrigerant Suction, A | Pipe, Cooler Refrigerant Suction, A |
| 8871816660 | 88718-16660 | Pipe, Cooler Refrigerant Suction, No.2 | Pipe, Cooler Refrigerant Suction, No.2 |
| 887182 | 88718-2D140 | Clamp(For Cooler Refrigerant Pipe), No.1 | Clamp(For Cooler Refrigerant Pipe), No.1 |
| 887182 | 88718-2D150 | Clamp(For Cooler Refrigerant Pipe), No.1 | Clamp(For Cooler Refrigerant Pipe), No.1 |
| 887186 | 88718-6B080 | Pipe, Cooler Refrigerant Suction, No.2 | Pipe, Cooler Refrigerant Suction, No.2 |
| 887186 | 88718-6B270 | Pipe, Cooler Refrigerant Suction, No.2 | Pipe, Cooler Refrigerant Suction, No.2 |
| 887186 | 88718-6B490 | Pipe, Cooler Refrigerant Suction, No.2 | Pipe, Cooler Refrigerant Suction, No.2 |
| 9017906293 | 90179-06293 | NUT | NUT |
| 9151160612 | 91511-60612 | BOLT | BOLT |
| 9155180625 | 91551-80625 | Bolt(For Camshaft Housing Set) | Bolt(For Camshaft Housing Set) |
| 9155380622 | 91553-80622 | BOLT FLANGE | BOLT FLANGE |
| 9167180612 | 91671-80612 | Bolt | Bolt |
| 91673 | 91673-A0616 | BOLT, FLANGE | BOLT, FLANGE |
