Search › Compare › GRN280 × GRN285
GRN280
Toyota HILUX-SURF-4RUNNER — 81 of 5,984 shared
GRN285
Toyota HILUX-SURF-4RUNNER — 81 of 5,630 shared

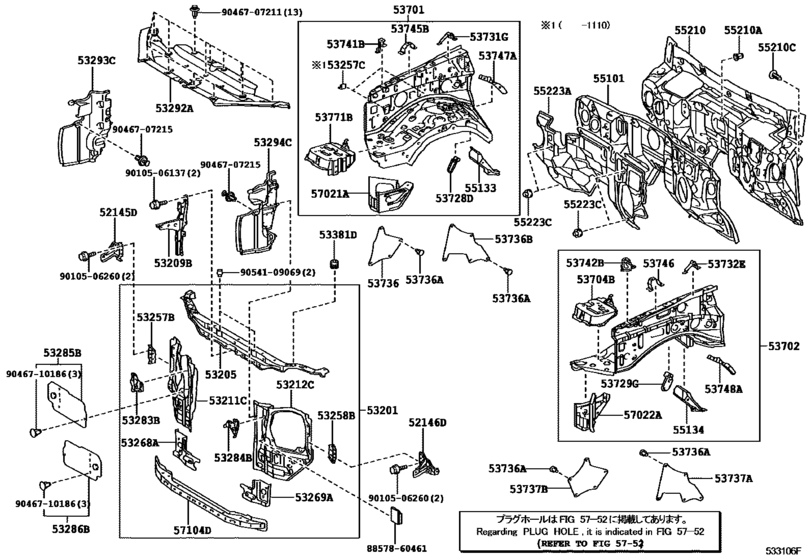

Front Fender Apron & Dash Panel ([08.2009 - 08.2013] (0908-1308)) 81 / 81
| # | OEM | GRN280 | GRN285 |
|---|---|---|---|
| 52145 | 53803-35030 | Bracket, Front Bumper Side Mounting, Rh | Bracket, Front Bumper Side Mounting, Rh |
| 52146 | 53804-35040 | Bracket, Front Bumper Side Mounting, Lh | Bracket, Front Bumper Side Mounting, Lh |
| 53201 | 53201-60170 | Support Sub-Assy, Radiator | Support Sub-Assy, Radiator |
| 53201 | 53201-60171 | Support Sub-Assy, Radiator | Support Sub-Assy, Radiator |
| 53205 | 53205-60070 | Support Sub-Assy, Radiator, Upper | Support Sub-Assy, Radiator, Upper |
| 53209 | 53209-35040 | Brace Sub-Assy, Hood Lock Support | Brace Sub-Assy, Hood Lock Support |
| 53209 | 53209-35041 | Brace Sub-Assy, Hood Lock Support | Brace Sub-Assy, Hood Lock Support |
| 53209 | 53209-35050 | Brace Sub-Assy, Hood Lock Support | Brace Sub-Assy, Hood Lock Support |
| 53209 | 53209-35051 | BRACE SUBASSY HOOD | BRACE SUBASSY HOOD |
| 53211 | 53211-60240 | Support, Radiator, Rh | Support, Radiator, Rh |
| 53211 | 53211-60242 | Support, Radiator, Rh | Support, Radiator, Rh |
| 53211 | 53211-60241 | Support, Radiator, Rh | Support, Radiator, Rh |
| 53212 | 53212-60200 | Support, Radiator, Lh | Support, Radiator, Lh |
| 53212 | 53212-60202 | Support, Radiator, Lh | Support, Radiator, Lh |
| 53212 | 53212-60201 | Support, Radiator, Lh | Support, Radiator, Lh |
| 53257 | 53257-60070 | Bracket, Radiator Support To Front Fender | Bracket, Radiator Support To Front Fender |
| 53257 | 53257-35030 | Bracket, Front End Panel Mounting, Rh | Bracket, Front End Panel Mounting, Rh |
| 53268 | 53268-35040 | Reinforcement, Radiator Mounting, Rh | Reinforcement, Radiator Mounting, Rh |
| 53269 | 53269-35040 | Reinforcement, Radiator Mounting, Lh | Reinforcement, Radiator Mounting, Lh |
| 53283 | 53283-60050 | Reinforcement, Front Body Mounting, No.2 Rh | Reinforcement, Front Body Mounting, No.2 Rh |
| 53284 | 53284-60010 | Reinforcement, Front Body Mounting, No.2 Lh | Reinforcement, Front Body Mounting, No.2 Lh |
| 53285 | 53298-35010 | Seal, Radiator Side Air, No.1 | Seal, Radiator Side Air, No.1 |
| 53286 | 53299-35100 | Seal, Radiator Side Air, No.2 | Seal, Radiator Side Air, No.2 |
| 53292 | 53292-35030 | Seal, Radiator Support, Upper | Seal, Radiator Support, Upper |
| 53292 | 53292-35031 | Seal, Radiator Support, Upper | Seal, Radiator Support, Upper |
| 53293 | 53293-35010 | Deflector, Radiator Side, Rh | Deflector, Radiator Side, Rh |
| 53293 | 53293-35020 | Deflector, Radiator Side, Rh | Deflector, Radiator Side, Rh |
| 53293 | 53293-35030 | Deflector, Radiator Side, Rh | Deflector, Radiator Side, Rh |
| 53294 | 53294-35010 | Deflector, Radiator Side, Lh | Deflector, Radiator Side, Lh |
| 53294 | 53294-35020 | Deflector, Radiator Side, Lh | Deflector, Radiator Side, Lh |
| 53294 | 53294-35030 | Deflector, Radiator Side, Lh | Deflector, Radiator Side, Lh |
| 53381 | 90541-15004 | Cushion, Hood Bumper | Cushion, Hood Bumper |
| 53701 | 53701-35A40 | Apron Sub-Assy, Front Fender, Rh | Apron Sub-Assy, Front Fender, Rh |
| 53701 | 53701-35A41 | Apron Sub-Assy, Front Fender, Rh | Apron Sub-Assy, Front Fender, Rh |
| 53702 | 53702-35A20 | Apron Sub-Assy, Front Fender, Lh | Apron Sub-Assy, Front Fender, Lh |
| 53702 | 53702-35A23 | Apron Sub-Assy, Front Fender, Lh | Apron Sub-Assy, Front Fender, Lh |
| 53702 | 53702-35A22 | Apron Sub-Assy, Front Fender, Lh | Apron Sub-Assy, Front Fender, Lh |
| 53704 | 53704-35082 | Support Sub-Assy, Battery, Lh | Support Sub-Assy, Battery, Lh |
| 53704 | 53704-60050 | Support Sub-Assy, Battery, Lh | Support Sub-Assy, Battery, Lh |
| 53728 | 53728-35060 | Bracket, Fender Apron, Rh | Bracket, Fender Apron, Rh |
| 53731 | 53731-35060 | Reinforcement, Front Fender Apron, Rh | Reinforcement, Front Fender Apron, Rh |
| 53732 | 53732-35080 | Reinforcement, Front Fender Apron, Lh | Reinforcement, Front Fender Apron, Lh |
| 53736 | 53735-35150 | Seal, Front Fender Apron, Upper | Seal, Front Fender Apron, Upper |
| 53736 | 53735-35151 | Seal, Front Fender Apron, Upper | Seal, Front Fender Apron, Upper |
| 53736 | 90467-10186 | Clip(For Front Fender Apron Seal) | Clip(For Front Fender Apron Seal) |
| 53736 | 53885-60030 | Seal, Front Fender Apron To Frame, No.1 | Seal, Front Fender Apron To Frame, No.1 |
| 53737 | 53736-35150 | Seal, Fender Apron | Seal, Fender Apron |
| 53737 | 53736-35151 | Seal, Fender Apron | Seal, Fender Apron |
| 53741 | 53741-35060 | Plate, Fender Apron Reinforce, Rh | Plate, Fender Apron Reinforce, Rh |
| 53742 | 53742-35070 | Plate, Fender Apron Reinforce, Lh | Plate, Fender Apron Reinforce, Lh |
| 53745 | 53745-35020 | Reinforcement, Front Fender Apron, Rear Rh | Reinforcement, Front Fender Apron, Rear Rh |
| 53746 | 53746-35010 | Reinforcement, Front Fender Apron, Rear Lh | Reinforcement, Front Fender Apron, Rear Lh |
| 53747 | 53747-60020 | Extension, Apron Fender Side, Rh | Extension, Apron Fender Side, Rh |
| 53748 | 53748-60010 | Extension, Apron Fender Side, Lh | Extension, Apron Fender Side, Lh |
| 53771 | 53703-35042 | Support, Battery Carrier, Rh | Support, Battery Carrier, Rh |
| 53771 | 53703-60061 | Support, Battery Carrier, Rh | Support, Battery Carrier, Rh |
| 55101 | 55101-35A00 | Panel Sub-Assy, Dash | Panel Sub-Assy, Dash |
| 55133 | 55133-60060 | Plate, Front Fender Apron Set, Lower Rh | Plate, Front Fender Apron Set, Lower Rh |
| 55134 | 55134-60070 | Plate, Front Fender Apron Set, Lower Lh | Plate, Front Fender Apron Set, Lower Lh |
| 55210 | 55210-35390 | Insulator Assy, Dash Panel | Insulator Assy, Dash Panel |
| 55210 | 55210-35392 | Insulator Assy, Dash Panel | Insulator Assy, Dash Panel |
| 55210 | 55210-35391 | Insulator Assy, Dash Panel | Insulator Assy, Dash Panel |
| 55210 | 90467-06155 | Clip | Clip |
| 55210 | 90467-08186-C0 | Clip(For Front Bumper), No.1 | Clip(For Front Bumper), No.1 |
| 55210 | 90467-08186-C3 | Clip(For Front Bumper), No.1 | Clip(For Front Bumper), No.1 |
| 55223 | 55223-35072 | Insulator, Dash Panel, Outer | Insulator, Dash Panel, Outer |
| 55223 | 55223-35074 | Insulator, Dash Panel, Outer | Insulator, Dash Panel, Outer |
| 55223 | 55223-35073 | Insulator, Dash Panel, Outer | Insulator, Dash Panel, Outer |
| 55223 | 55223-35100 | Insulator, Dash Panel, Outer | Insulator, Dash Panel, Outer |
| 55223 | 90467-06169 | Clip | Clip |
| 55223 | 90467-06206-C0 | Clip, Rear Bumper Side | Clip, Rear Bumper Side |
| 57021 | 57021-35060 | Bracket Sub-Assy, Body Mounting, No.1 Rh | Bracket Sub-Assy, Body Mounting, No.1 Rh |
| 57022 | 57022-35050 | Bracket Sub-Assy, Body Mounting, No.1 Lh | Bracket Sub-Assy, Body Mounting, No.1 Lh |
| 57104 | 57104-35061 | Member Sub-Assy, Front Cross | Member Sub-Assy, Front Cross |
| 8857860461 | 88578-60461 | Packing, Cooler Pipe, No.1 | Packing, Cooler Pipe, No.1 |
| 8857860461 | 88578-60550 | Packing, Cooler Pipe, No.1 | Packing, Cooler Pipe, No.1 |
| 9010506137 | 90105-06137 | BOLT, WASHER BASED H | BOLT, WASHER BASED H |
| 9010506260 | 90105-06260 | BOLT, WASHER BASED | BOLT, WASHER BASED |
| 9046707211 | 90467-07211 | Clip(For Reserve Tank Outlet Hose No.2) | Clip(For Reserve Tank Outlet Hose No.2) |
| 9046707215 | 90467-07215 | Clip | Clip |
| 9054109069 | 90541-09069 | Cushion, Hood Bumper | Cushion, Hood Bumper |
| # | OEM | GRN280 | GRN285 |
|---|---|---|---|
| 53201 | 53201-60170 | Support Sub-Assy, Radiator | Support Sub-Assy, Radiator |
| 53201 | 53201-60171 | Support Sub-Assy, Radiator | Support Sub-Assy, Radiator |
| 53205 | 53205-60070 | Support Sub-Assy, Radiator, Upper | Support Sub-Assy, Radiator, Upper |
| 53209 | 53209-35040 | Brace Sub-Assy, Hood Lock Support | Brace Sub-Assy, Hood Lock Support |
| 53209 | 53209-35041 | Brace Sub-Assy, Hood Lock Support | Brace Sub-Assy, Hood Lock Support |
| 53209 | 53209-35050 | Brace Sub-Assy, Hood Lock Support | Brace Sub-Assy, Hood Lock Support |
| 53209 | 53209-35051 | BRACE SUBASSY HOOD | BRACE SUBASSY HOOD |
| 53211 | 53211-60240 | Support, Radiator, Rh | Support, Radiator, Rh |
| 53211 | 53211-60241 | Support, Radiator, Rh | Support, Radiator, Rh |
| 53211 | 53211-60242 | Support, Radiator, Rh | Support, Radiator, Rh |
| 53212 | 53212-60200 | Support, Radiator, Lh | Support, Radiator, Lh |
| 53212 | 53212-60201 | Support, Radiator, Lh | Support, Radiator, Lh |
| 53212 | 53212-60202 | Support, Radiator, Lh | Support, Radiator, Lh |
| 53257 | 53257-35030 | Bracket, Front End Panel Mounting, Rh | Bracket, Front End Panel Mounting, Rh |
| 53257 | 53257-60070 | Bracket, Radiator Support To Front Fender | Bracket, Radiator Support To Front Fender |
| 53268 | 53268-35040 | Reinforcement, Radiator Mounting, Rh | Reinforcement, Radiator Mounting, Rh |
| 53269 | 53269-35040 | Reinforcement, Radiator Mounting, Lh | Reinforcement, Radiator Mounting, Lh |
| 53283 | 53283-60050 | Reinforcement, Front Body Mounting, No.2 Rh | Reinforcement, Front Body Mounting, No.2 Rh |
| 53284 | 53284-60010 | Reinforcement, Front Body Mounting, No.2 Lh | Reinforcement, Front Body Mounting, No.2 Lh |
| 53292 | 53292-35030 | Seal, Radiator Support, Upper | Seal, Radiator Support, Upper |
| 53292 | 53292-35031 | Seal, Radiator Support, Upper | Seal, Radiator Support, Upper |
| 53293 | 53293-35010 | Deflector, Radiator Side, Rh | Deflector, Radiator Side, Rh |
| 53293 | 53293-35020 | Deflector, Radiator Side, Rh | Deflector, Radiator Side, Rh |
| 53293 | 53293-35030 | Deflector, Radiator Side, Rh | Deflector, Radiator Side, Rh |
| 53294 | 53294-35010 | Deflector, Radiator Side, Lh | Deflector, Radiator Side, Lh |
| 53294 | 53294-35020 | Deflector, Radiator Side, Lh | Deflector, Radiator Side, Lh |
| 53294 | 53294-35030 | Deflector, Radiator Side, Lh | Deflector, Radiator Side, Lh |
| 53285 | 53298-35010 | Seal, Radiator Side Air, No.1 | Seal, Radiator Side Air, No.1 |
| 53286 | 53299-35100 | Seal, Radiator Side Air, No.2 | Seal, Radiator Side Air, No.2 |
| 53701 | 53701-35A40 | Apron Sub-Assy, Front Fender, Rh | Apron Sub-Assy, Front Fender, Rh |
| 53701 | 53701-35A41 | Apron Sub-Assy, Front Fender, Rh | Apron Sub-Assy, Front Fender, Rh |
| 53702 | 53702-35A20 | Apron Sub-Assy, Front Fender, Lh | Apron Sub-Assy, Front Fender, Lh |
| 53702 | 53702-35A22 | Apron Sub-Assy, Front Fender, Lh | Apron Sub-Assy, Front Fender, Lh |
| 53702 | 53702-35A23 | Apron Sub-Assy, Front Fender, Lh | Apron Sub-Assy, Front Fender, Lh |
| 53771 | 53703-35042 | Support, Battery Carrier, Rh | Support, Battery Carrier, Rh |
| 53771 | 53703-60061 | Support, Battery Carrier, Rh | Support, Battery Carrier, Rh |
| 53704 | 53704-35082 | Support Sub-Assy, Battery, Lh | Support Sub-Assy, Battery, Lh |
| 53704 | 53704-60050 | Support Sub-Assy, Battery, Lh | Support Sub-Assy, Battery, Lh |
| 53728 | 53728-35060 | Bracket, Fender Apron, Rh | Bracket, Fender Apron, Rh |
| 53731 | 53731-35060 | Reinforcement, Front Fender Apron, Rh | Reinforcement, Front Fender Apron, Rh |
| 53732 | 53732-35080 | Reinforcement, Front Fender Apron, Lh | Reinforcement, Front Fender Apron, Lh |
| 53736 | 53735-35150 | Seal, Front Fender Apron, Upper | Seal, Front Fender Apron, Upper |
| 53736 | 53735-35151 | Seal, Front Fender Apron, Upper | Seal, Front Fender Apron, Upper |
| 53737 | 53736-35150 | Seal, Fender Apron | Seal, Fender Apron |
| 53737 | 53736-35151 | Seal, Fender Apron | Seal, Fender Apron |
| 53741 | 53741-35060 | Plate, Fender Apron Reinforce, Rh | Plate, Fender Apron Reinforce, Rh |
| 53742 | 53742-35070 | Plate, Fender Apron Reinforce, Lh | Plate, Fender Apron Reinforce, Lh |
| 53745 | 53745-35020 | Reinforcement, Front Fender Apron, Rear Rh | Reinforcement, Front Fender Apron, Rear Rh |
| 53746 | 53746-35010 | Reinforcement, Front Fender Apron, Rear Lh | Reinforcement, Front Fender Apron, Rear Lh |
| 53747 | 53747-60020 | Extension, Apron Fender Side, Rh | Extension, Apron Fender Side, Rh |
| 53748 | 53748-60010 | Extension, Apron Fender Side, Lh | Extension, Apron Fender Side, Lh |
| 52145 | 53803-35030 | Bracket, Front Bumper Side Mounting, Rh | Bracket, Front Bumper Side Mounting, Rh |
| 52146 | 53804-35040 | Bracket, Front Bumper Side Mounting, Lh | Bracket, Front Bumper Side Mounting, Lh |
| 53736 | 53885-60030 | Seal, Front Fender Apron To Frame, No.1 | Seal, Front Fender Apron To Frame, No.1 |
| 55101 | 55101-35A00 | Panel Sub-Assy, Dash | Panel Sub-Assy, Dash |
| 55133 | 55133-60060 | Plate, Front Fender Apron Set, Lower Rh | Plate, Front Fender Apron Set, Lower Rh |
| 55134 | 55134-60070 | Plate, Front Fender Apron Set, Lower Lh | Plate, Front Fender Apron Set, Lower Lh |
| 55210 | 55210-35390 | Insulator Assy, Dash Panel | Insulator Assy, Dash Panel |
| 55210 | 55210-35391 | Insulator Assy, Dash Panel | Insulator Assy, Dash Panel |
| 55210 | 55210-35392 | Insulator Assy, Dash Panel | Insulator Assy, Dash Panel |
| 55223 | 55223-35072 | Insulator, Dash Panel, Outer | Insulator, Dash Panel, Outer |
| 55223 | 55223-35073 | Insulator, Dash Panel, Outer | Insulator, Dash Panel, Outer |
| 55223 | 55223-35074 | Insulator, Dash Panel, Outer | Insulator, Dash Panel, Outer |
| 55223 | 55223-35100 | Insulator, Dash Panel, Outer | Insulator, Dash Panel, Outer |
| 57021 | 57021-35060 | Bracket Sub-Assy, Body Mounting, No.1 Rh | Bracket Sub-Assy, Body Mounting, No.1 Rh |
| 57022 | 57022-35050 | Bracket Sub-Assy, Body Mounting, No.1 Lh | Bracket Sub-Assy, Body Mounting, No.1 Lh |
| 57104 | 57104-35061 | Member Sub-Assy, Front Cross | Member Sub-Assy, Front Cross |
| 8857860461 | 88578-60461 | Packing, Cooler Pipe, No.1 | Packing, Cooler Pipe, No.1 |
| 8857860461 | 88578-60550 | Packing, Cooler Pipe, No.1 | Packing, Cooler Pipe, No.1 |
| 9010506137 | 90105-06137 | BOLT, WASHER BASED H | BOLT, WASHER BASED H |
| 9010506260 | 90105-06260 | BOLT, WASHER BASED | BOLT, WASHER BASED |
| 55210 | 90467-06155 | Clip | Clip |
| 55223 | 90467-06169 | Clip | Clip |
| 55223 | 90467-06206-C0 | Clip, Rear Bumper Side | Clip, Rear Bumper Side |
| 55799 | 90467-07211 | Clip(For Reserve Tank Outlet Hose No.2) | Clip(For Reserve Tank Outlet Hose No.2) |
| 9046707215 | 90467-07215 | Clip | Clip |
| 55210 | 90467-08186-C0 | Clip(For Front Bumper), No.1 | Clip(For Front Bumper), No.1 |
| 55210 | 90467-08186-C3 | Clip(For Front Bumper), No.1 | Clip(For Front Bumper), No.1 |
| 53736 | 90467-10186 | Clip(For Front Fender Apron Seal) | Clip(For Front Fender Apron Seal) |
| 67001 | 90541-09069 | Cushion, Hood Bumper | Cushion, Hood Bumper |
| 53381 | 90541-15004 | Cushion, Hood Bumper | Cushion, Hood Bumper |
