Search › Compare › GRN280 × GRN285
GRN280
Toyota HILUX-SURF-4RUNNER — 25 of 5,984 shared
GRN285
Toyota HILUX-SURF-4RUNNER — 25 of 5,630 shared

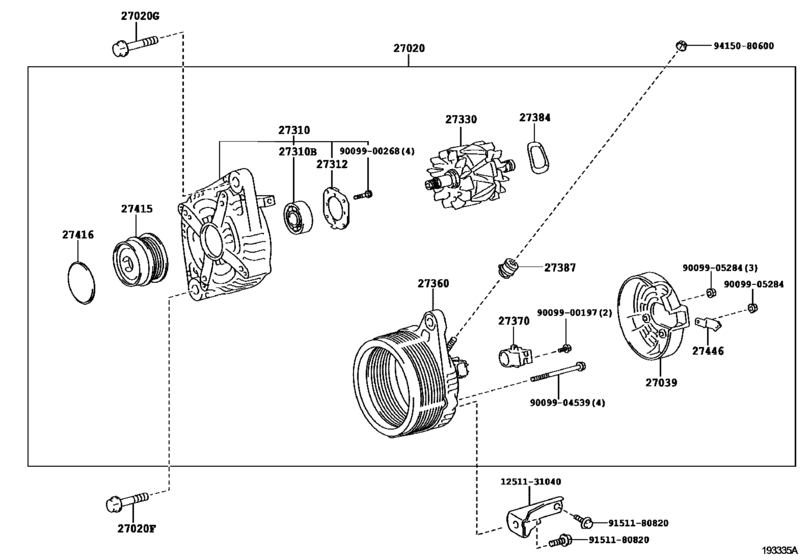

Alternator ([08.2009 - ] 12V 100A (0908- )) 25 / 25
| # | OEM | GRN280 | GRN285 |
|---|---|---|---|
| 27020 | 27060-31180 | Alternator Assy | Alternator Assy |
| 27020 | 27060-31260 | Alternator Assy | Alternator Assy |
| 27020 | 91552-81040 | Bolt(For Alternator) | Bolt(For Alternator) |
| 27020 | 91552-81070 | Bolt(For Alternator) | Bolt(For Alternator) |
| 27039 | 27039-31390 | Cover, Alternator Rear End | Cover, Alternator Rear End |
| 27310 | 27310-31430 | Frame Assy, Drive End, Alternator | Frame Assy, Drive End, Alternator |
| 27310 | 90099-10223 | Bearing(For Alternator Drive End Frame) | Bearing(For Alternator Drive End Frame) |
| 27312 | 27312-72100 | Plate, Bearing Retainer, Alternator | Plate, Bearing Retainer, Alternator |
| 27330 | 27330-30070 | Rotor Assy, Alternator | Rotor Assy, Alternator |
| 27360 | 27360-31390 | Coil Assy, Alternator | Coil Assy, Alternator |
| 27360 | 27360-31520 | Coil Assy, Alternator | Coil Assy, Alternator |
| 27370 | 27370-31220 | Holder Assy, Alternator Brush | Holder Assy, Alternator Brush |
| 27384 | 27384-50030 | Holder, Alternator Brush, A | Holder, Alternator Brush, A |
| 27387 | 27387-20130 | Insulator, Terminal | Insulator, Terminal |
| 27415 | 27415-0W130 | Pulley, Alternator W/clutch | Pulley, Alternator W/clutch |
| 27415 | 27415-0W131 | Pulley, Alternator W/clutch | Pulley, Alternator W/clutch |
| 27416 | 27416-0W050 | Cap, Alternator Pulley | Cap, Alternator Pulley |
| 27446 | 27446-31390 | Clip, Alternator Cord | Clip, Alternator Cord |
| 1251131040 | 12511-31040 | Bracket, Alternator, No.1 | Bracket, Alternator, No.1 |
| 9009900197 | 90099-00197 | Screw | Screw |
| 9009900268 | 90099-00268 | Screw(For Alternator Drive End Frame) | Screw(For Alternator Drive End Frame) |
| 9009904539 | 90099-04539 | BOLT | BOLT |
| 9009905284 | 90099-05284 | NUT | NUT |
| 9151180820 | 91511-80820 | BOLT FLANGE | BOLT FLANGE |
| 9415080600 | 94150-80600 | NUT FLANGE | NUT FLANGE |
| # | OEM | GRN280 | GRN285 |
|---|---|---|---|
| 1251131040 | 12511-31040 | Bracket, Alternator, No.1 | Bracket, Alternator, No.1 |
| 27039 | 27039-31390 | Cover, Alternator Rear End | Cover, Alternator Rear End |
| 27020 | 27060-31180 | Alternator Assy | Alternator Assy |
| 27020 | 27060-31260 | Alternator Assy | Alternator Assy |
| 27310 | 27310-31430 | Frame Assy, Drive End, Alternator | Frame Assy, Drive End, Alternator |
| 27312 | 27312-72100 | Plate, Bearing Retainer, Alternator | Plate, Bearing Retainer, Alternator |
| 27330 | 27330-30070 | Rotor Assy, Alternator | Rotor Assy, Alternator |
| 27360 | 27360-31390 | Coil Assy, Alternator | Coil Assy, Alternator |
| 27360 | 27360-31520 | Coil Assy, Alternator | Coil Assy, Alternator |
| 27370 | 27370-31220 | Holder Assy, Alternator Brush | Holder Assy, Alternator Brush |
| 27384 | 27384-50030 | Holder, Alternator Brush, A | Holder, Alternator Brush, A |
| 27387 | 27387-20130 | Insulator, Terminal | Insulator, Terminal |
| 27415 | 27415-0W130 | Pulley, Alternator W/clutch | Pulley, Alternator W/clutch |
| 27415 | 27415-0W131 | Pulley, Alternator W/clutch | Pulley, Alternator W/clutch |
| 27416 | 27416-0W050 | Cap, Alternator Pulley | Cap, Alternator Pulley |
| 27446 | 27446-31390 | Clip, Alternator Cord | Clip, Alternator Cord |
| 9009900197 | 90099-00197 | Screw | Screw |
| 9009900268 | 90099-00268 | Screw(For Alternator Drive End Frame) | Screw(For Alternator Drive End Frame) |
| 9009904539 | 90099-04539 | BOLT | BOLT |
| 9009905284 | 90099-05284 | NUT | NUT |
| 27310 | 90099-10223 | Bearing(For Alternator Drive End Frame) | Bearing(For Alternator Drive End Frame) |
| 9151180820 | 91511-80820 | BOLT FLANGE | BOLT FLANGE |
| 27020 | 91552-81040 | Bolt(For Alternator) | Bolt(For Alternator) |
| 27020 | 91552-81070 | Bolt(For Alternator) | Bolt(For Alternator) |
| 9415080600 | 94150-80600 | NUT FLANGE | NUT FLANGE |
