GRJ158
Lexus GX — 11 of 5,793 shared
KDJ150
Toyota LAND-CRUISER-PRADO — 11 of 9,116 shared

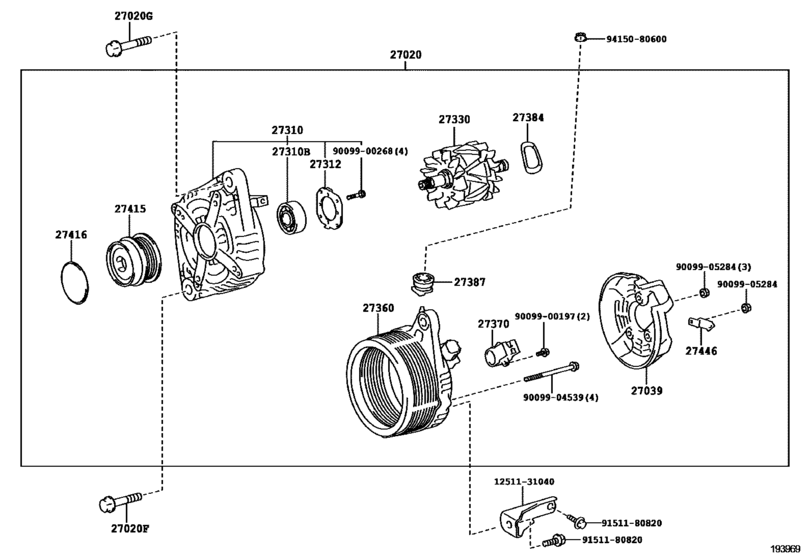

Alternator ([06.2012 - ] 12V 150A (1206- )1GRFE) 11 / 23
| # | OEM | GRJ158 | KDJ150 |
|---|---|---|---|
| 27020 | 91552-81040 | Bolt(For Alternator) | Bolt(For Alternator) |
| 27310 | 90099-10223 | Bearing(For Alternator Drive End Frame) | Bearing(For Alternator Drive End Frame) |
| 27312 | 27312-72100 | Plate, Bearing Retainer, Alternator | Plate, Bearing Retainer, Alternator |
| 27384 | 27384-50030 | Holder, Alternator Brush, A | Holder, Alternator Brush, A |
| 27387 | 27387-20130 | Insulator, Terminal | Insulator, Terminal |
| 9009900197 | 90099-00197 | Screw | Screw |
| 9009900268 | 90099-00268 | Screw(For Alternator Drive End Frame) | Screw(For Alternator Drive End Frame) |
| 9009904539 | 90099-04539 | BOLT | BOLT |
| 9009905284 | 90099-05284 | NUT | NUT |
| 9151180820 | 91511-80820 | BOLT FLANGE | BOLT FLANGE |
| 9415080600 | 94150-80600 | NUT FLANGE | NUT FLANGE |
| # | OEM | GRJ158 | KDJ150 |
|---|---|---|---|
| 27312 | 27312-72100 | Plate, Bearing Retainer, Alternator | Plate, Bearing Retainer, Alternator |
| 27384 | 27384-50030 | Holder, Alternator Brush, A | Holder, Alternator Brush, A |
| 27387 | 27387-20130 | Insulator, Terminal | Insulator, Terminal |
| 9009900197 | 90099-00197 | Screw | Screw |
| 9009900268 | 90099-00268 | Screw(For Alternator Drive End Frame) | Screw(For Alternator Drive End Frame) |
| 9009904539 | 90099-04539 | BOLT | BOLT |
| 9009905284 | 90099-05284 | NUT | NUT |
| 27310 | 90099-10223 | Bearing(For Alternator Drive End Frame) | Bearing(For Alternator Drive End Frame) |
| 9151180820 | 91511-80820 | BOLT FLANGE | BOLT FLANGE |
| 27020 | 91552-81040 | Bolt(For Alternator) | Bolt(For Alternator) |
| 9415080600 | 94150-80600 | NUT FLANGE | NUT FLANGE |
