Search › Compare › GC415V × GC416V
GC415V
Suzuki APV — 21 of 3,786 shared
GC416V
Suzuki APV — 21 of 3,786 shared

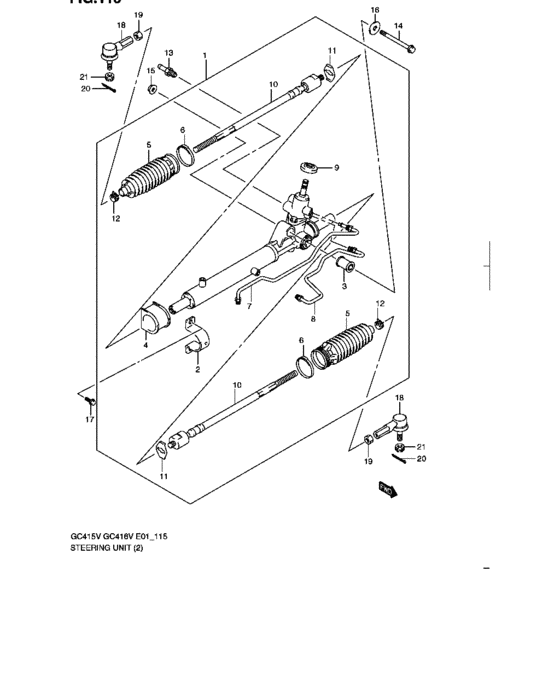

Steering unit (LHD:W/POWER STEERING) 21 / 21
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 48500-61J51-000 | Box assy, Steering gear | Box assy, Steering gear |
| 2 | 48522-61J00-000 | Bracket, mounting | Bracket, mounting |
| 3 | 48525-61J00-000 | Bush, mounting | Bush, mounting |
| 4 | 48526-61J00-000 | Rubber, mounting | Rubber, mounting |
| 5 | 48571-61J00-000 | Boot, steering | Boot, steering |
| 6 | 48575-61J00-000 | Band, steel | Band, steel |
| 7 | 48581-61J00-000 | Pipe assy | Pipe assy |
| 8 | 48582-61J00-000 | Pipe assy | Pipe assy |
| 9 | 48589-61J00-000 | Cover, dust | Cover, dust |
| 10 | 48830-61J00-000 | Tie rod, steering | Tie rod, steering |
| 11 | 48841-61J00-000 | Washer, tie rod lock | Washer, tie rod lock |
| 12 | 48871-61J00-000 | Clamp | Clamp |
| 13 | 49212-60G42-000 | PIPE,RETURN GEAR SIDE | PIPE,RETURN GEAR SIDE |
| 14 | 09103-12074-000 | BOLT(12X121) | BOLT(12X121) |
| 15 | 09159-12017-000 | NUT | NUT |
| 16 | 09160-12079-000 | WASHER(12.2X40X2.6) | WASHER(12.2X40X2.6) |
| 17 | 01551-0825A-000 | Bolt | Bolt |
| 18 | 48810-61J00-000 | End, steering tie rod | End, steering tie rod |
| 19 | 09140-12030-000 | NUT - Nut, tie rod (rh thread) | NUT - Nut, tie rod (rh thread) |
| 20 | 04111-3020A-000 | PIN | PIN |
| 21 | 08314-4012A-000 | NUT | NUT |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 5 | 01551-0825A-000 | Bolt | Bolt |
| 18 | 04111-3020A-000 | PIN | PIN |
| 21 | 08314-4012A-000 | NUT | NUT |
| 23 | 09103-12074-000 | BOLT(12X121) | BOLT(12X121) |
| 28 | 09140-12030-000 | NUT - Nut, tie rod (rh thread) | NUT - Nut, tie rod (rh thread) |
| 16 | 09159-12017-000 | NUT | NUT |
| 25 | 09160-12079-000 | WASHER(12.2X40X2.6) | WASHER(12.2X40X2.6) |
| 1 | 48500-61J51-000 | Box assy, Steering gear | Box assy, Steering gear |
| 2 | 48522-61J00-000 | Bracket, mounting | Bracket, mounting |
| 3 | 48525-61J00-000 | Bush, mounting | Bush, mounting |
| 4 | 48526-61J00-000 | Rubber, mounting | Rubber, mounting |
| 5 | 48571-61J00-000 | Boot, steering | Boot, steering |
| 6 | 48575-61J00-000 | Band, steel | Band, steel |
| 7 | 48581-61J00-000 | Pipe assy | Pipe assy |
| 8 | 48582-61J00-000 | Pipe assy | Pipe assy |
| 9 | 48589-61J00-000 | Cover, dust | Cover, dust |
| 27 | 48810-61J00-000 | End, steering tie rod | End, steering tie rod |
| 10 | 48830-61J00-000 | Tie rod, steering | Tie rod, steering |
| 11 | 48841-61J00-000 | Washer, tie rod lock | Washer, tie rod lock |
| 12 | 48871-61J00-000 | Clamp | Clamp |
| 13 | 49212-60G42-000 | PIPE,RETURN GEAR SIDE | PIPE,RETURN GEAR SIDE |
