Search › Compare › GC415V × GC416V
GC415V
Suzuki APV — 16 of 3,786 shared
GC416V
Suzuki APV — 16 of 3,786 shared

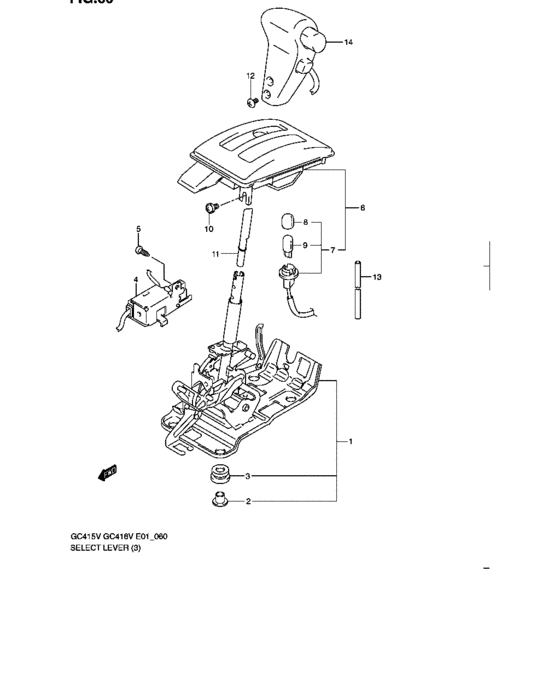

Select lever (TYPE 2:AT:LHD) 16 / 16
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 28110-60K30-000 | LEVER ASSY,SELECT | LEVER ASSY,SELECT |
| 1 | 28110-60K10-000 | LEVER ASSY,SELECT | LEVER ASSY,SELECT |
| 2 | 28367-64J00-000 | SPACER,GEAR CONT GUIDE CUSHION | SPACER,GEAR CONT GUIDE CUSHION |
| 3 | 09320-12036-000 | CUSHION - Cushion, holder | CUSHION - Cushion, holder |
| 4 | 28610-78A51-000 | SOLENOID,SHIFT LOCK | SOLENOID,SHIFT LOCK |
| 5 | 09118-05006-000 | BOLT(5X8) | BOLT(5X8) |
| 6 | 28150-60K10-000 | INDICATOR ASSY,SELECT | INDICATOR ASSY,SELECT |
| 7 | 28159-60K10-000 | LAMP ASSY,SEL LEVER ILLUM | LAMP ASSY,SEL LEVER ILLUM |
| 8 | 28182-60K10-000 | FILTER,ILLUM LAMP | FILTER,ILLUM LAMP |
| 9 | 09471-12077-000 | BULB(12V1.7W,T10,WB121) | BULB(12V1.7W,T10,WB121) |
| 10 | 02142-0510B-000 | SCREW - Bolt | SCREW - Bolt |
| 11 | 28164-62B80-000 | GUIDE,DETENT RELEASE ROD | GUIDE,DETENT RELEASE ROD |
| 12 | 09125-05117-000 | SCREW(5X6) - Screw (5x6) | SCREW(5X6) - Screw (5x6) |
| 13 | 28118-64B61-000 | TUBE,SWITCH WIRE HARNESS | TUBE,SWITCH WIRE HARNESS |
| 14 | 28160-61J10-5PK | KNOB ASSY,SELECT LEVER | KNOB ASSY,SELECT LEVER |
| 14 | 28160-61J11-5PK | KNOB ASSY,SELECT LEVER(BLACK) | KNOB ASSY,SELECT LEVER(BLACK) |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 24 | 02142-0510B-000 | SCREW - Bolt | SCREW - Bolt |
| 5 | 09118-05006-000 | BOLT(5X8) | BOLT(5X8) |
| 12 | 09125-05117-000 | SCREW(5X6) - Screw (5x6) | SCREW(5X6) - Screw (5x6) |
| 3 | 09320-12036-000 | CUSHION - Cushion, holder | CUSHION - Cushion, holder |
| 9 | 09471-12077-000 | BULB(12V1.7W,T10,WB121) | BULB(12V1.7W,T10,WB121) |
| 1 | 28110-60K10-000 | LEVER ASSY,SELECT | LEVER ASSY,SELECT |
| 1 | 28110-60K30-000 | LEVER ASSY,SELECT | LEVER ASSY,SELECT |
| 13 | 28118-64B61-000 | TUBE,SWITCH WIRE HARNESS | TUBE,SWITCH WIRE HARNESS |
| 6 | 28150-60K10-000 | INDICATOR ASSY,SELECT | INDICATOR ASSY,SELECT |
| 7 | 28159-60K10-000 | LAMP ASSY,SEL LEVER ILLUM | LAMP ASSY,SEL LEVER ILLUM |
| 14 | 28160-61J10-5PK | KNOB ASSY,SELECT LEVER | KNOB ASSY,SELECT LEVER |
| 14 | 28160-61J11-5PK | KNOB ASSY,SELECT LEVER(BLACK) | KNOB ASSY,SELECT LEVER(BLACK) |
| 11 | 28164-62B80-000 | GUIDE,DETENT RELEASE ROD | GUIDE,DETENT RELEASE ROD |
| 8 | 28182-60K10-000 | FILTER,ILLUM LAMP | FILTER,ILLUM LAMP |
| 2 | 28367-64J00-000 | SPACER,GEAR CONT GUIDE CUSHION | SPACER,GEAR CONT GUIDE CUSHION |
| 4 | 28610-78A51-000 | SOLENOID,SHIFT LOCK | SOLENOID,SHIFT LOCK |
