Search › Compare › GC415V × GC416V
GC415V
Suzuki APV — 18 of 3,786 shared
GC416V
Suzuki APV — 18 of 3,786 shared

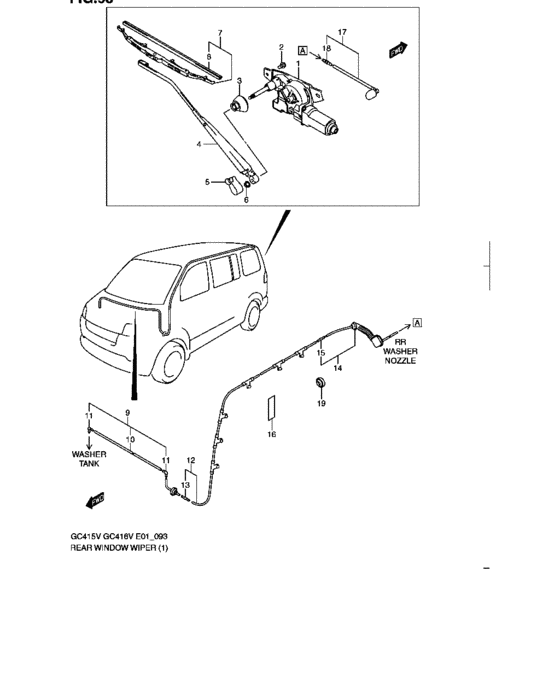

Rear window wiper (W/REAR WIPER:TYPE 1) 18 / 18
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 38810-61J00-000 | Wiper assy, rear window | Wiper assy, rear window |
| 2 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 3 | 38274-61J00-000 | Cap, rear wiper pivot | Cap, rear wiper pivot |
| 4 | 38821-61J00-000 | Arm assy, rear wiper | Arm assy, rear wiper |
| 5 | 38315-74G00-000 | COVER,RR WIPER HEAD | COVER,RR WIPER HEAD |
| 6 | 08316-1006A-000 | NUT | NUT |
| 7 | 38340-74G00-000 | BLADE ASSY,WIPER | BLADE ASSY,WIPER |
| 8 | 38346-74G00-000 | RUBBER,BLADE | RUBBER,BLADE |
| 9 | 38834-61J10-000 | Hose assy, rr washer no.1 | Hose assy, rr washer no.1 |
| 10 | 38491-61A10-000 | HOSE,WASHER L:2100 | HOSE,WASHER L:2100 |
| 11 | 38496-61J00-000 | Connector | Connector |
| 12 | 38834-61J20-000 | Hose assy, rr washer no.2 | Hose assy, rr washer no.2 |
| 13 | 38496-56B00-000 | CONNECTOR | CONNECTOR |
| 14 | 38834-61J30-000 | Hose assy, rr washer no.3 | Hose assy, rr washer no.3 |
| 16 | 36930-82010-000 | COVER,HARNESS - Cover, roof wire | COVER,HARNESS - Cover, roof wire |
| 17 | 38840-50F00-000 | NOZZLE ASSY,RR WASHER | NOZZLE ASSY,RR WASHER |
| 18 | 38496-61A00-000 | VALVE,CHECK | VALVE,CHECK |
| 19 | 36757-65D90-000 | CAP,DR | CAP,DR |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 29 | 08316-1006A-000 | NUT | NUT |
| 30 | 36757-65D90-000 | CAP,DR | CAP,DR |
| 1 | 36930-82010-000 | COVER,HARNESS - Cover, roof wire | COVER,HARNESS - Cover, roof wire |
| 3 | 38274-61J00-000 | Cap, rear wiper pivot | Cap, rear wiper pivot |
| 5 | 38315-74G00-000 | COVER,RR WIPER HEAD | COVER,RR WIPER HEAD |
| 7 | 38340-74G00-000 | BLADE ASSY,WIPER | BLADE ASSY,WIPER |
| 8 | 38346-74G00-000 | RUBBER,BLADE | RUBBER,BLADE |
| 10 | 38491-61A10-000 | HOSE,WASHER L:2100 | HOSE,WASHER L:2100 |
| 13 | 38496-56B00-000 | CONNECTOR | CONNECTOR |
| 18 | 38496-61A00-000 | VALVE,CHECK | VALVE,CHECK |
| 11 | 38496-61J00-000 | Connector | Connector |
| 1 | 38810-61J00-000 | Wiper assy, rear window | Wiper assy, rear window |
| 4 | 38821-61J00-000 | Arm assy, rear wiper | Arm assy, rear wiper |
| 9 | 38834-61J10-000 | Hose assy, rr washer no.1 | Hose assy, rr washer no.1 |
| 12 | 38834-61J20-000 | Hose assy, rr washer no.2 | Hose assy, rr washer no.2 |
| 14 | 38834-61J30-000 | Hose assy, rr washer no.3 | Hose assy, rr washer no.3 |
| 17 | 38840-50F00-000 | NOZZLE ASSY,RR WASHER | NOZZLE ASSY,RR WASHER |
