Search › Compare › GC415V × GC416V

GC415V × GC416V

Shared 62 / Total 3,786 · Jaccard 100%
GC415V Suzuki APV — 62 of 3,786 shared
GC416V Suzuki APV — 62 of 3,786 shared

← Back to categories

62 items

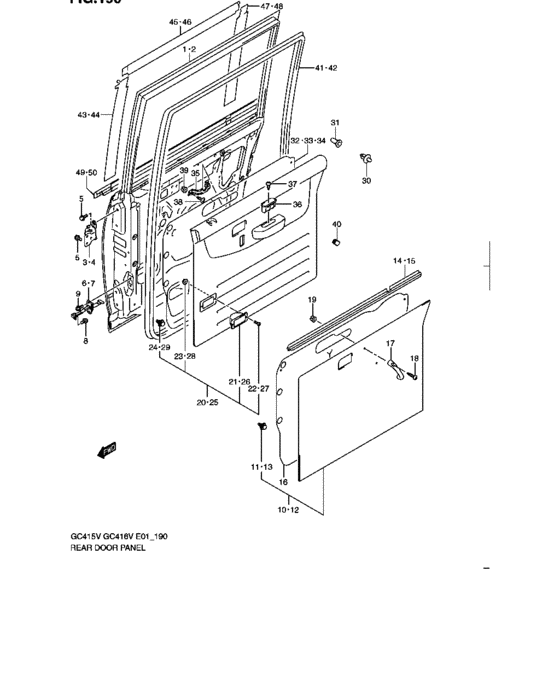

Rear door panel (REAR DOOR PANEL) 62 / 62
GC415V Rear door panel (REAR DOOR PANEL)
GC416V Rear door panel (REAR DOOR PANEL)
# OEM GC415V GC416V
1 68003-61J20-000 Panel, rear door rh Panel, rear door rh
1 68003-61J10-000 Panel, rear door rh Panel, rear door rh
1 68003-61J00-000 Panel, rear door rh Panel, rear door rh
1 68003-61J50-000 Panel, rear door rh Panel, rear door rh
2 68004-61J20-000 Panel, rear door lh Panel, rear door lh
2 68004-61J10-000 Panel, rear door lh Panel, rear door lh
2 68004-61J00-000 Panel, rear door lh Panel, rear door lh
2 68004-61J50-000 Panel, rear door lh Panel, rear door lh
3 69440-65D00-000 HINGE,RR DOOR NO.2 HINGE,RR DOOR NO.2
4 69430-65D00-000 HINGE,RR DOOR NO.1 HINGE,RR DOOR NO.1
5 01551-0820A-000 Bolt Bolt
6 81830-61J00-000 Stop, door open rh Stop, door open rh
7 81840-61J00-000 Stop, door open lh Stop, door open lh
8 09112-08015-000 BOLT(8X25) BOLT(8X25)
9 02162-0616A-000 SCREW SCREW
9 02162-0616B-000 SCREW - Bolt, adjust SCREW - Bolt, adjust
10 83730-61J20-P4Z Trim, rr door rh - Gray Trim, rr door rh - Gray
10 83730-61J00-P4Z Trim, rr door rh - Gray Trim, rr door rh - Gray
11 09409-10312-000 CLIP CLIP
12 83740-61J20-P4Z Trim, rr door lh - Gray Trim, rr door lh - Gray
12 83740-61J00-P4Z Trim, rr door lh - Gray Trim, rr door lh - Gray
14 83871-61J10-000 Weatherstrip, door inner rh Weatherstrip, door inner rh
14 83871-61J00-000 Weatherstrip, door inner rh Weatherstrip, door inner rh
15 83881-61J10-000 Weatherstrip, door inner lh Weatherstrip, door inner lh
15 83881-61J00-000 Weatherstrip, door inner lh Weatherstrip, door inner lh
16 83913-61J00-000 COVER,RR DR SEALING COVER,RR DR SEALING
17 76411-70G00-P4Z GRIP,ASST GRIP,ASST
18 03111-0625A-000 SCREW SCREW
19 09148-06007-000 NUT NUT
20 83703-61J51-BFA Trim, rr door rh - Gray Trim, rr door rh - Gray
20 83703-60K50-EUP Trim, rr door rh - Beige/gray Trim, rr door rh - Beige/gray
20 83703-61J51-AYL Trim, rr door rh - Beige Trim, rr door rh - Beige
20 83703-60K50-EKU Trim, rr door rh - Beige/gray Trim, rr door rh - Beige/gray
21 86370-58141-5PK ASHTRAY,RR DR ASHTRAY,RR DR
22 02112-0416A-000 SCREW SCREW
23 08316-1004A-000 NUT NUT
24 09409-08320-000 CLIP CLIP
25 83704-61J51-BFA Trim, rr door lh - Gray Trim, rr door lh - Gray
25 83704-60K50-EUP Trim, rr door lh - Beige/gray Trim, rr door lh - Beige/gray
25 83704-61J51-AYL Trim, rr door lh - Beige Trim, rr door lh - Beige
25 83704-60K50-EKU Trim, rr door lh - Beige/gray Trim, rr door lh - Beige/gray
30 09409-06314-R8H CLIP(BEIGE) CLIP(BEIGE)
31 83751-75G00-000 SEAL,CLIP SEAL,CLIP
32 83913-61J10-000 COVER,RR DR SEALING,R COVER,RR DR SEALING,R
33 83914-61J10-000 COVER,RR DR SEALING,L COVER,RR DR SEALING,L
35 83752-61J00-000 Bracket, rear door trim Bracket, rear door trim
35 83752-60K00-000 Bracket, rear door trim Bracket, rear door trim
36 83799-75H00-P4Z HANDLE,SIDE DOOR TRIM HANDLE,SIDE DOOR TRIM
36 83799-75H00-R8H CASE,RR DR INSIDE PULL HANDLE CASE,RR DR INSIDE PULL HANDLE
37 09132-05058-000 SCREW(5X12) SCREW(5X12)
38 03241-0612A-000 SCREW SCREW
40 82711-56B00-000 STOPPER,FR DOOR - Stopper, fr dr lower STOPPER,FR DOOR - Stopper, fr dr lower
41 84661-61J00-000 Weatherstrip, door opening rh Weatherstrip, door opening rh
42 84671-61J00-000 Weatherstrip, door opening lh Weatherstrip, door opening lh
43 83951-61J00-0CC Tape, sash b-pillar rh - Black Tape, sash b-pillar rh - Black
44 83952-61J00-0CC Tape, sash b-pillar lh - Black Tape, sash b-pillar lh - Black
45 83953-61J00-0CC Tape, sash roof rh - Black Tape, sash roof rh - Black
46 83954-61J00-0CC Tape, sash roof lh - Black Tape, sash roof lh - Black
47 83955-61J00-0CC Tape, sash c-pillar rh - Black Tape, sash c-pillar rh - Black
48 83956-61J00-0CC Tape, sash c-pillar lh - Black Tape, sash c-pillar lh - Black
49 83831-61J10-000 Weatherstrip, door outer rh Weatherstrip, door outer rh
50 83841-61J10-000 Weatherstrip, door outer lh Weatherstrip, door outer lh
