Search › Compare › GC415V × GC416V
GC415V
Suzuki APV — 26 of 3,786 shared
GC416V
Suzuki APV — 26 of 3,786 shared

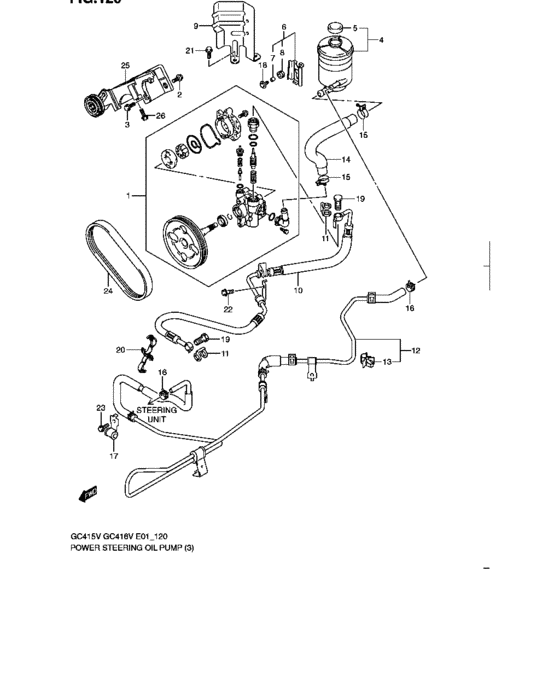

Power steering oil pump (TYPE 2:LHD) 26 / 26
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 49110-60K00-000 | Pump assy, power steering | Pump assy, power steering |
| 2 | 01551-0835A-000 | Bolt | Bolt |
| 3 | 01570-0820A-000 | Bolt | Bolt |
| 4 | 49140-61J00-000 | Tank assy, power steering | Tank assy, power steering |
| 5 | 49142-65D00-000 | CAP,PS OIL TANK | CAP,PS OIL TANK |
| 6 | 49150-60G00-000 | BRACKET ASSY,PS TANK | BRACKET ASSY,PS TANK |
| 7 | 09180-06038-000 | SPACER(6.1X9X7.5) - Spacer (6.1x9x7.5) | SPACER(6.1X9X7.5) - Spacer (6.1x9x7.5) |
| 8 | 09320-08501-000 | CUSHION | CUSHION |
| 9 | 49152-60K00-000 | Bracket, ps tank no.2 | Bracket, ps tank no.2 |
| 10 | 49210-61J51-000 | Hose, pressure | Hose, pressure |
| 11 | 49211-63G03-000 | GASKET,PRESSURE PIPE | GASKET,PRESSURE PIPE |
| 12 | 49220-60K50-000 | Hose, return | Hose, return |
| 13 | 09408-00151-000 | CLAMP | CLAMP |
| 14 | 49222-61J00-000 | Hose, suction | Hose, suction |
| 15 | 09400-24301-000 | CLAMP | CLAMP |
| 16 | 49225-65G00-000 | CLAMP,RETURN HOSE | CLAMP,RETURN HOSE |
| 17 | 49243-61J00-000 | Stay, under cover | Stay, under cover |
| 18 | 09136-06133-000 | BOLT(6X16) - Screw | BOLT(6X16) - Screw |
| 19 | 09360-16003-000 | UNION | UNION |
| 20 | 09408-00182-000 | CLAMP | CLAMP |
| 21 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 23 | 02162-0616A-000 | SCREW | SCREW |
| 23 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 24 | 17521-85300-000 | V-BELT,4PK1010 | V-BELT,4PK1010 |
| 25 | 49120-60K00-000 | Bracket assy, power steering | Bracket assy, power steering |
| 26 | 01551-1025A-000 | Bolt | Bolt |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 2 | 01551-0835A-000 | Bolt | Bolt |
| 17 | 01551-1025A-000 | Bolt | Bolt |
| 41 | 01570-0820A-000 | Bolt | Bolt |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 16 | 02162-0616A-000 | SCREW | SCREW |
| 16 | 02162-0616B-000 | SCREW - Bolt, adjust | SCREW - Bolt, adjust |
| 24 | 09136-06133-000 | BOLT(6X16) - Screw | BOLT(6X16) - Screw |
| 14 | 09180-06038-000 | SPACER(6.1X9X7.5) - Spacer (6.1x9x7.5) | SPACER(6.1X9X7.5) - Spacer (6.1x9x7.5) |
| 15 | 09320-08501-000 | CUSHION | CUSHION |
| 25 | 09360-16003-000 | UNION | UNION |
| 21 | 09400-24301-000 | CLAMP | CLAMP |
| 13 | 09408-00151-000 | CLAMP | CLAMP |
| 26 | 09408-00182-000 | CLAMP | CLAMP |
| 30 | 17521-85300-000 | V-BELT,4PK1010 | V-BELT,4PK1010 |
| 1 | 49110-60K00-000 | Pump assy, power steering | Pump assy, power steering |
| 25 | 49120-60K00-000 | Bracket assy, power steering | Bracket assy, power steering |
| 11 | 49140-61J00-000 | Tank assy, power steering | Tank assy, power steering |
| 12 | 49142-65D00-000 | CAP,PS OIL TANK | CAP,PS OIL TANK |
| 13 | 49150-60G00-000 | BRACKET ASSY,PS TANK | BRACKET ASSY,PS TANK |
| 9 | 49152-60K00-000 | Bracket, ps tank no.2 | Bracket, ps tank no.2 |
| 17 | 49210-61J51-000 | Hose, pressure | Hose, pressure |
| 18 | 49211-63G03-000 | GASKET,PRESSURE PIPE | GASKET,PRESSURE PIPE |
| 12 | 49220-60K50-000 | Hose, return | Hose, return |
| 20 | 49222-61J00-000 | Hose, suction | Hose, suction |
| 22 | 49225-65G00-000 | CLAMP,RETURN HOSE | CLAMP,RETURN HOSE |
| 23 | 49243-61J00-000 | Stay, under cover | Stay, under cover |
