Search › Compare › GC415V × GC416V
GC415V
Suzuki APV — 21 of 3,786 shared
GC416V
Suzuki APV — 21 of 3,786 shared

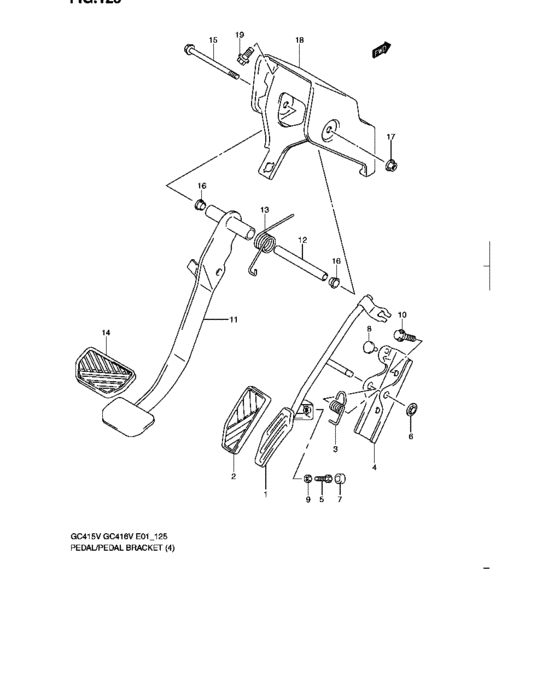

Pedal/pedal bracket (RHD:AT) 21 / 21
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 49410-61J00-000 | Pedal, accelerator | Pedal, accelerator |
| 1 | 49410-61J10-000 | Pedal, accelerator | Pedal, accelerator |
| 2 | 49451-61J10-000 | Pad, pedal | Pad, pedal |
| 3 | 49491-61J00-000 | Spring, accel pedal return | Spring, accel pedal return |
| 4 | 49511-61J00-000 | Bracket, accelerator | Bracket, accelerator |
| 5 | 09100-06150-000 | BOLT(6X31) - Bolt, adjuster | BOLT(6X31) - Bolt, adjuster |
| 6 | 09148-09001-000 | NUT | NUT |
| 7 | 09251-09002-000 | CAP(OD:13.6) | CAP(OD:13.6) |
| 7 | 09251-09008-000 | Cap(Od:13.6) | Cap(Od:13.6) |
| 8 | 09321-06026-000 | CUSHION | CUSHION |
| 9 | 08310-0006A-000 | NUT | NUT |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 11 | 49610-61J10-000 | Pedal, brake | Pedal, brake |
| 12 | 49671-72F00-000 | SPACER,BRAKE PEDAL SHAFT | SPACER,BRAKE PEDAL SHAFT |
| 13 | 49691-61J01-000 | Spring, brake pedal | Spring, brake pedal |
| 14 | 49751-58J10-000 | PAD,PEDAL | PAD,PEDAL |
| 15 | 09100-10288-000 | BOLT(10X120) | BOLT(10X120) |
| 16 | 09307-13005-000 | BUSH - Bushing | BUSH - Bushing |
| 17 | 08316-1010A-000 | NUT - Nut, kick starter | NUT - Nut, kick starter |
| 18 | 49710-61J00-000 | Bracket, brake pedal | Bracket, brake pedal |
| 19 | 01551-0816C-000 | Bolt | Bolt |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 13 | 01551-0816C-000 | Bolt | Bolt |
| 10 | 02162-0612A-000 | SCREW - Bolt, bracket | SCREW - Bolt, bracket |
| 9 | 08310-0006A-000 | NUT | NUT |
| 26 | 08316-1010A-000 | NUT - Nut, kick starter | NUT - Nut, kick starter |
| 5 | 09100-06150-000 | BOLT(6X31) - Bolt, adjuster | BOLT(6X31) - Bolt, adjuster |
| 15 | 09100-10288-000 | BOLT(10X120) | BOLT(10X120) |
| 6 | 09148-09001-000 | NUT | NUT |
| 7 | 09251-09002-000 | CAP(OD:13.6) | CAP(OD:13.6) |
| 7 | 09251-09008-000 | Cap(Od:13.6) | Cap(Od:13.6) |
| 16 | 09307-13005-000 | BUSH - Bushing | BUSH - Bushing |
| 8 | 09321-06026-000 | CUSHION | CUSHION |
| 1 | 49410-61J00-000 | Pedal, accelerator | Pedal, accelerator |
| 1 | 49410-61J10-000 | Pedal, accelerator | Pedal, accelerator |
| 2 | 49451-61J10-000 | Pad, pedal | Pad, pedal |
| 3 | 49491-61J00-000 | Spring, accel pedal return | Spring, accel pedal return |
| 4 | 49511-61J00-000 | Bracket, accelerator | Bracket, accelerator |
| 11 | 49610-61J10-000 | Pedal, brake | Pedal, brake |
| 12 | 49671-72F00-000 | SPACER,BRAKE PEDAL SHAFT | SPACER,BRAKE PEDAL SHAFT |
| 13 | 49691-61J01-000 | Spring, brake pedal | Spring, brake pedal |
| 18 | 49710-61J00-000 | Bracket, brake pedal | Bracket, brake pedal |
| 14 | 49751-58J10-000 | PAD,PEDAL | PAD,PEDAL |
