Search › Compare › GC415V × GC416V
GC415V
Suzuki APV — 31 of 3,786 shared
GC416V
Suzuki APV — 31 of 3,786 shared

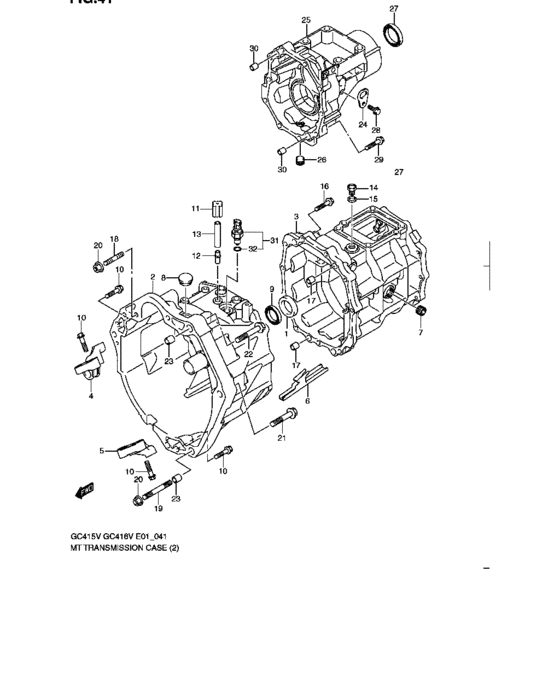

Mt transmission case (TYPE 2:MT) 31 / 31
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 24151-64J00-000 | SEAL,PUMP | SEAL,PUMP |
| 2 | 24711-60K00-000 | Case, transmission fron | Case, transmission fron |
| 3 | 24721-60K00-000 | Case, transmission rear | Case, transmission rear |
| 4 | 24791-60K00-000 | Stiffener, block & t/m rh | Stiffener, block & t/m rh |
| 5 | 24792-61J00-000 | Stiffener, block & t/m lh | Stiffener, block & t/m lh |
| 6 | 24815-84A00-000 | GUTTER,OIL | GUTTER,OIL |
| 7 | 09246-16010-000 | PLUG | PLUG |
| 7 | 09246-16021-000 | Plug,t/m Oil Drain | Plug,t/m Oil Drain |
| 8 | 09250-30003-000 | CAP(OD:36) | CAP(OD:36) |
| 9 | 09283-30074-000 | SEAL,OIL(30X42X7) | SEAL,OIL(30X42X7) |
| 10 | 01550-1040A-000 | Bolt | Bolt |
| 11 | 27991-65D01-000 | PLUG,BREATHER | PLUG,BREATHER |
| 12 | 09364-08006-000 | UNION | UNION |
| 13 | 09355-70125-600 | HOSE(7X12X600) - Hose, fuel (pump to separator) | HOSE(7X12X600) - Hose, fuel (pump to separator) |
| 13 | 44421-12FR0-000 | HOSE | HOSE |
| 14 | 09247-14029-000 | PLUG | PLUG |
| 15 | 09168-14011-000 | GASKET(14X20X1.5) | GASKET(14X20X1.5) |
| 16 | 01550-0840A-000 | Bolt | Bolt |
| 17 | 04211-13149-000 | PIN | PIN |
| 18 | 09108-12006-000 | BOLT,STUD | BOLT,STUD |
| 19 | 09108-12012-000 | BOLT,STUD | BOLT,STUD |
| 20 | 08316-1012A-000 | NUT | NUT |
| 21 | 01550-1265A-000 | Bolt | Bolt |
| 22 | 01550-1275A-000 | Bolt | Bolt |
| 23 | 09206-15001-000 | PIN(12.4X15X17) | PIN(12.4X15X17) |
| 24 | 24855-60K00-000 | Hook, transmission | Hook, transmission |
| 25 | 24770-60K01-000 | Case, extension | Case, extension |
| 27 | 09283-38024-000 | SEAL,OIL(38X55X8) | SEAL,OIL(38X55X8) |
| 28 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 31 | 37610-76G00-000 | SWITCH ASSY,BACK UP LAMP | SWITCH ASSY,BACK UP LAMP |
| 32 | 09280-11002-000 | O RING(D:1.9,ID:11.4) | O RING(D:1.9,ID:11.4) |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 15 | 01550-0816A-000 | Bolt - Bolt, rear | Bolt - Bolt, rear |
| 2 | 01550-0840A-000 | Bolt | Bolt |
| 10 | 01550-1040A-000 | Bolt | Bolt |
| 13 | 01550-1265A-000 | Bolt | Bolt |
| 14 | 01550-1275A-000 | Bolt | Bolt |
| 9 | 04211-13149-000 | PIN | PIN |
| 15 | 08316-1012A-000 | NUT | NUT |
| 10 | 09108-12006-000 | BOLT,STUD | BOLT,STUD |
| 11 | 09108-12012-000 | BOLT,STUD | BOLT,STUD |
| 15 | 09168-14011-000 | GASKET(14X20X1.5) | GASKET(14X20X1.5) |
| 12 | 09206-15001-000 | PIN(12.4X15X17) | PIN(12.4X15X17) |
| 8 | 09246-16010-000 | PLUG | PLUG |
| 8 | 09246-16021-000 | Plug,t/m Oil Drain | Plug,t/m Oil Drain |
| 14 | 09247-14029-000 | PLUG | PLUG |
| 30 | 09250-30003-000 | CAP(OD:36) | CAP(OD:36) |
| 32 | 09280-11002-000 | O RING(D:1.9,ID:11.4) | O RING(D:1.9,ID:11.4) |
| 9 | 09283-30074-000 | SEAL,OIL(30X42X7) | SEAL,OIL(30X42X7) |
| 27 | 09283-38024-000 | SEAL,OIL(38X55X8) | SEAL,OIL(38X55X8) |
| 13 | 09355-70125-600 | HOSE(7X12X600) - Hose, fuel (pump to separator) | HOSE(7X12X600) - Hose, fuel (pump to separator) |
| 12 | 09364-08006-000 | UNION | UNION |
| 1 | 24151-64J00-000 | SEAL,PUMP | SEAL,PUMP |
| 2 | 24711-60K00-000 | Case, transmission fron | Case, transmission fron |
| 3 | 24721-60K00-000 | Case, transmission rear | Case, transmission rear |
| 25 | 24770-60K01-000 | Case, extension | Case, extension |
| 4 | 24791-60K00-000 | Stiffener, block & t/m rh | Stiffener, block & t/m rh |
| 31 | 24792-61J00-000 | Stiffener, block & t/m lh | Stiffener, block & t/m lh |
| 6 | 24815-84A00-000 | GUTTER,OIL | GUTTER,OIL |
| 24 | 24855-60K00-000 | Hook, transmission | Hook, transmission |
| 11 | 27991-65D01-000 | PLUG,BREATHER | PLUG,BREATHER |
| 31 | 37610-76G00-000 | SWITCH ASSY,BACK UP LAMP | SWITCH ASSY,BACK UP LAMP |
| 13 | 44421-12FR0-000 | HOSE | HOSE |
