Search › Compare › GC415V × GC416V
GC415V
Suzuki APV — 16 of 3,786 shared
GC416V
Suzuki APV — 16 of 3,786 shared

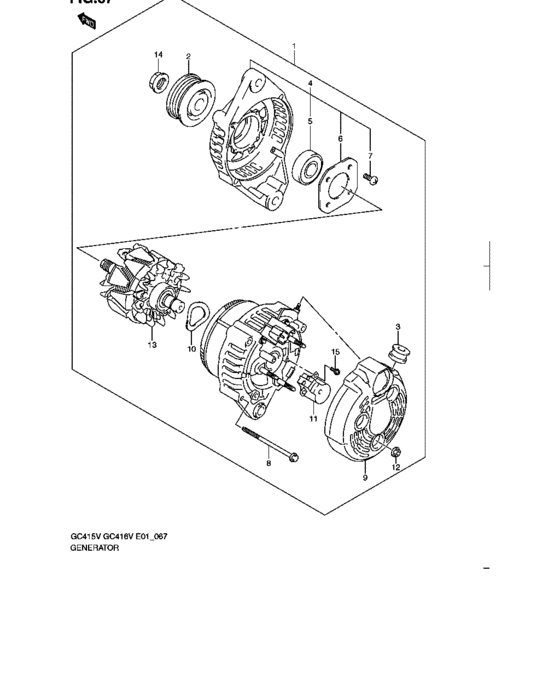

Generator (GENERATOR) 16 / 16
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 1 | 31400-61J21-000 | Generator assy | Generator assy |
| 2 | 31171-61J20-000 | Pulley | Pulley |
| 3 | 31514-61J20-000 | Insulation bush | Insulation bush |
| 4 | 31580-61J20-000 | Frame assy, drive end | Frame assy, drive end |
| 5 | 31582-60G13-000 | Bearing | Bearing |
| 5 | 31582-60G14-000 | BEARING,BALL | BEARING,BALL |
| 6 | 31585-82111-000 | RETAINER,BEARING | RETAINER,BEARING |
| 7 | 02112-0416A-000 | SCREW | SCREW |
| 8 | 31587-61J20-000 | Bolt | Bolt |
| 9 | 31614-61J20-000 | Cover, end rear | Cover, end rear |
| 10 | 31615-60G10-000 | WASHER | WASHER |
| 11 | 31656-61J20-000 | HOLDER ASSY,BRUSH | HOLDER ASSY,BRUSH |
| 12 | 31692-61J20-000 | NUT | NUT |
| 13 | 31710-61J21-000 | Rotor assy | Rotor assy |
| 14 | 31775-86510-000 | NUT | NUT |
| 15 | 02112-0406B-000 | SCREW | SCREW |
| # | OEM | GC415V | GC416V |
|---|---|---|---|
| 15 | 02112-0406B-000 | SCREW | SCREW |
| 7 | 02112-0416A-000 | SCREW | SCREW |
| 2 | 31171-61J20-000 | Pulley | Pulley |
| 4 | 31400-61J21-000 | Generator assy | Generator assy |
| 3 | 31514-61J20-000 | Insulation bush | Insulation bush |
| 4 | 31580-61J20-000 | Frame assy, drive end | Frame assy, drive end |
| 5 | 31582-60G13-000 | Bearing | Bearing |
| 5 | 31582-60G14-000 | BEARING,BALL | BEARING,BALL |
| 6 | 31585-82111-000 | RETAINER,BEARING | RETAINER,BEARING |
| 8 | 31587-61J20-000 | Bolt | Bolt |
| 9 | 31614-61J20-000 | Cover, end rear | Cover, end rear |
| 10 | 31615-60G10-000 | WASHER | WASHER |
| 11 | 31656-61J20-000 | HOLDER ASSY,BRUSH | HOLDER ASSY,BRUSH |
| 12 | 31692-61J20-000 | NUT | NUT |
| 13 | 31710-61J21-000 | Rotor assy | Rotor assy |
| 14 | 31775-86510-000 | NUT | NUT |
